SICK KTS Core - Product Description; Product ID

3 Product description
3.1 Product ID

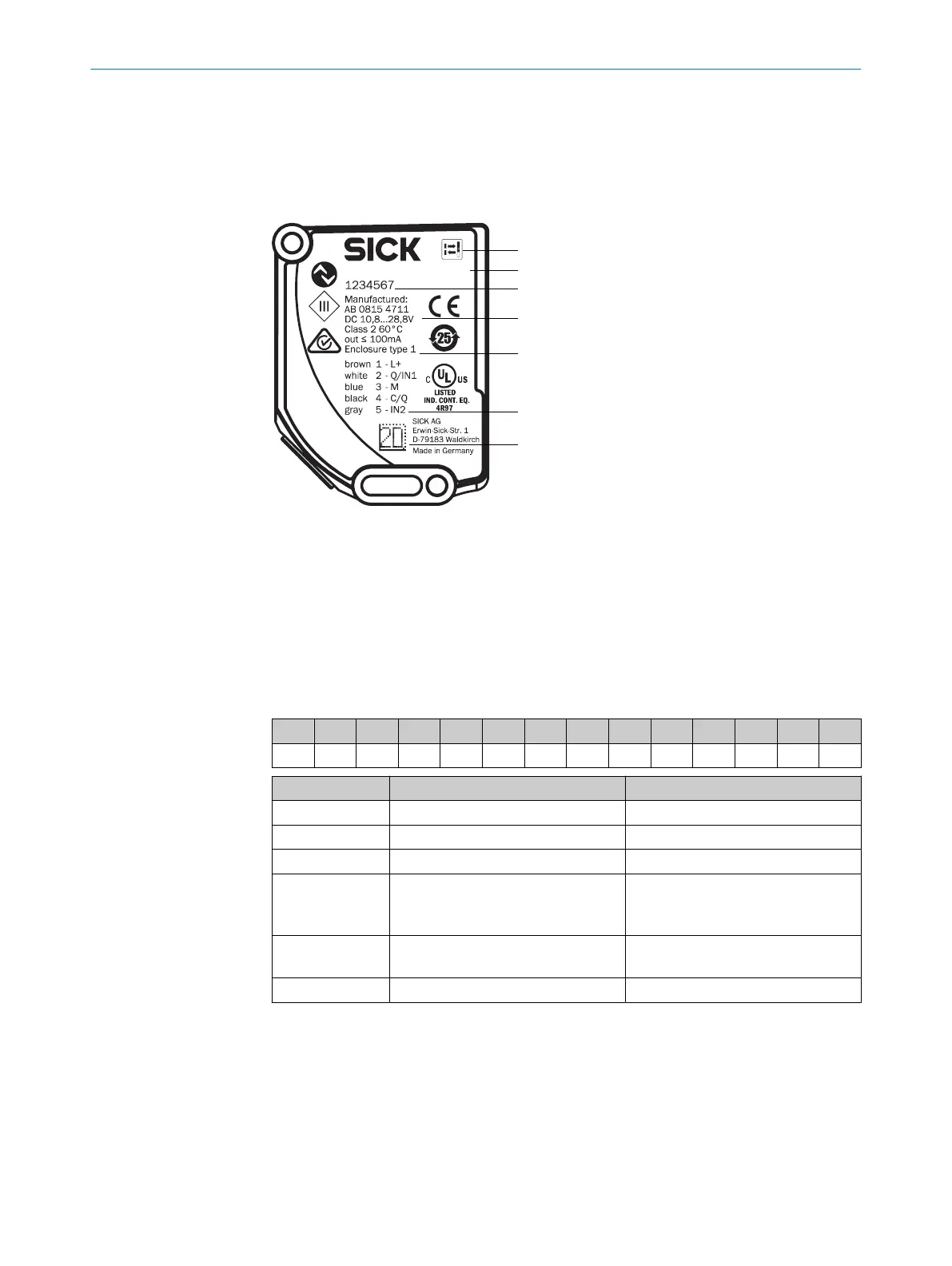

3.1.1 Type label
1
2
7
6
3
4
5
KTS-WB41141142ZZZZZZ
1
Contrast sensor pictogram
2
Device type number
3
Part number
4
Date of manufacture
5
Electrical data and environmental data
6
Pin assignment
7
2D code
3.1.2 Type code
1 2 - 3 4 5 6 7 8 9 10 11 12 13
KT S W B 6 1 1 4 1 1 4 2 Z
Position Meaning
1 Basic type KT = contrast sensor
2 Form factor/housing size S = small
3 Light sender W = RGB
4 Switching output B = push/pull
N = NPN
S = PNP/NPN
5 Function 6 = 2-point and 1-point teach-in
7 = dynamic and 1-point teach-in
6 Light spot direction 1 = longitudinal
3 PRODUCT DESCRIPTION
10
