SICK KTS Core - Dimensional Drawings

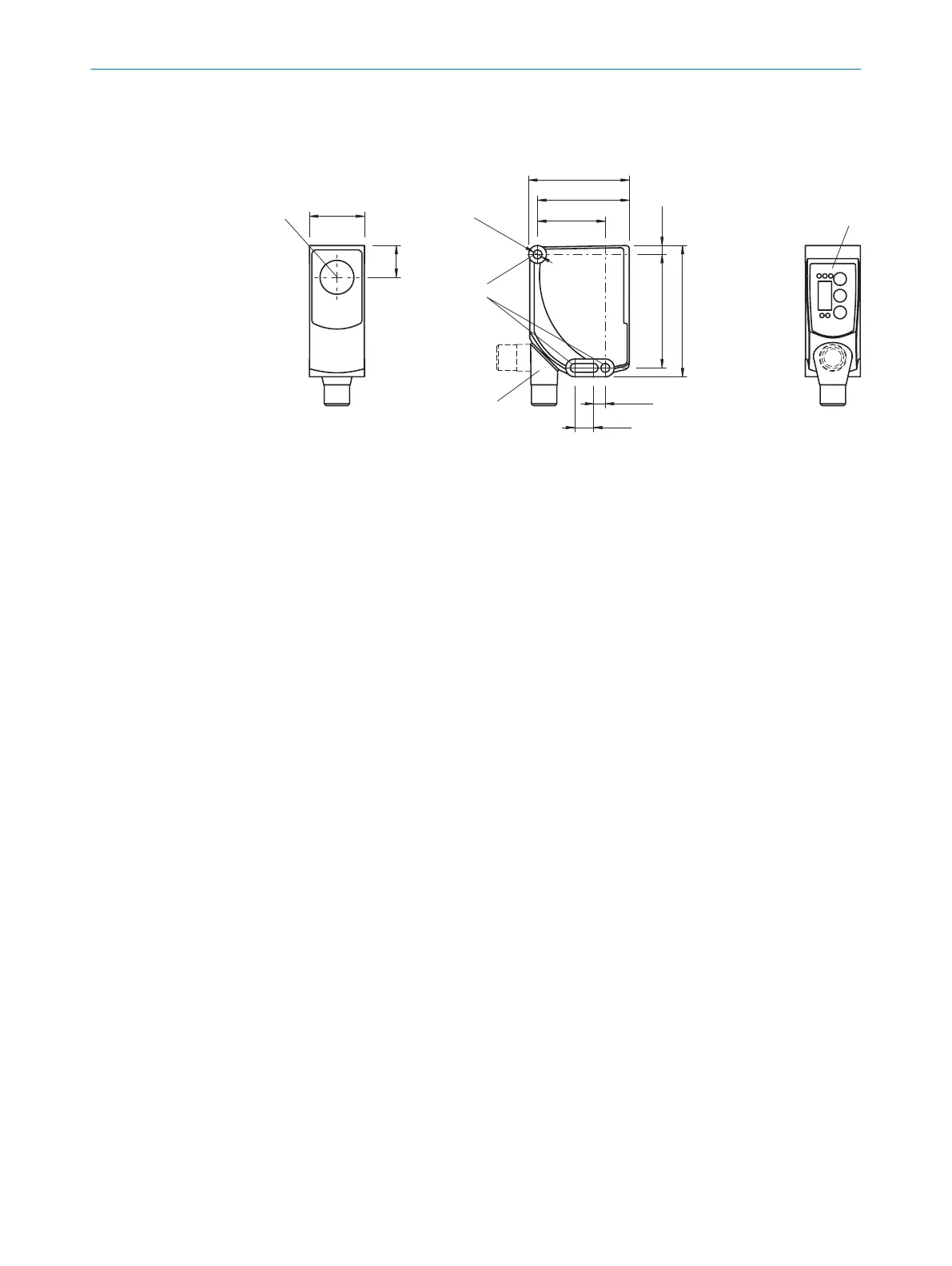

11.2 Dimensional drawings
KTS
Ø 4,1
62
43,3
9
5,5
32
53,6
4,2
47,5
2
3
26
15
1
4
1
Optical axis
2
Fixing hole
3
M12 device connection, can be rotated by 180°
4
Control panel
