3.2 Product features and functions
3.2.1 Device view
1 2 3 4 5

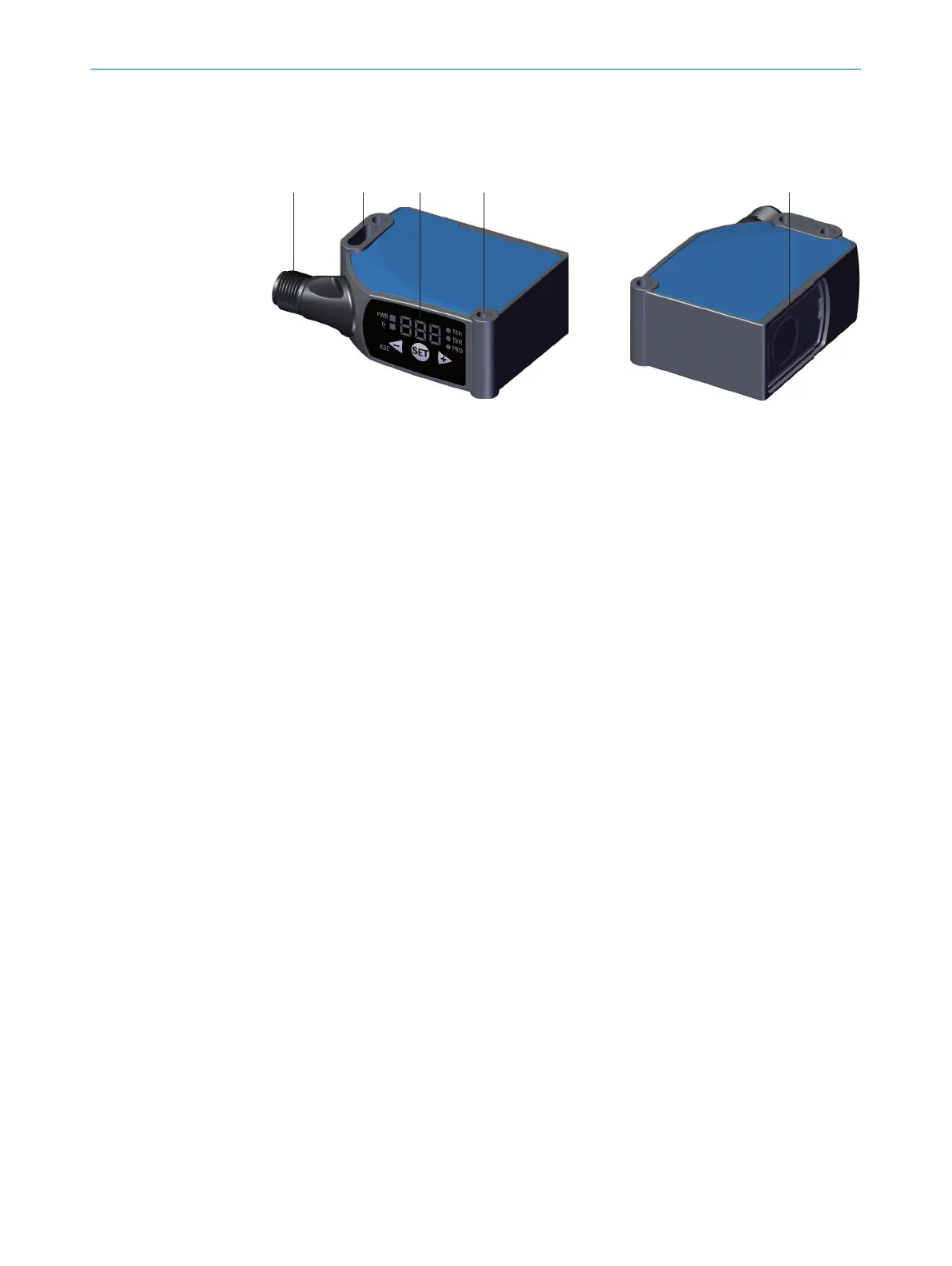

Figure 1: KTS Core light emission, long housing side
1
Connection
2
Mounting slot
3
Display and control panel
4
Fixing hole
5
Light emission
3.2.2 Product characteristics
Contrast sensors are primarily used in packaging or printing machines for detecting
marks.
However, they can also be used in any application based on making a distinction
between contrasts.
KTS contrast sensors detect even the smallest contrasts at the highest speeds, such as
print marks on foils or packaging. They detect minute grayscale variations between the
mark and the background on matte, shiny, or transparent surfaces. Device types are
available with different methods of contrast resolution and different teach-in variants
for a wide range of requirements.
Features
•
12.5 kHz switching frequency
•
Large dynamic range means reliable detection of contrasts on glossy materials
•
7-segment display
•
Color mode
•
Flexible sensor setting thanks to various sensor parameters
Fields of application
•
Applications in which contrast or color is a basic distinguishing feature
•
Print mark detection for controlling the cutting process
•
Print control in the print and paper industry
•
Positioning of tubes when filling
•
Label alignment on bottles
•
Monitoring of wafer surfaces
•
Roll end monitoring
•
Color control in yarn or line production
