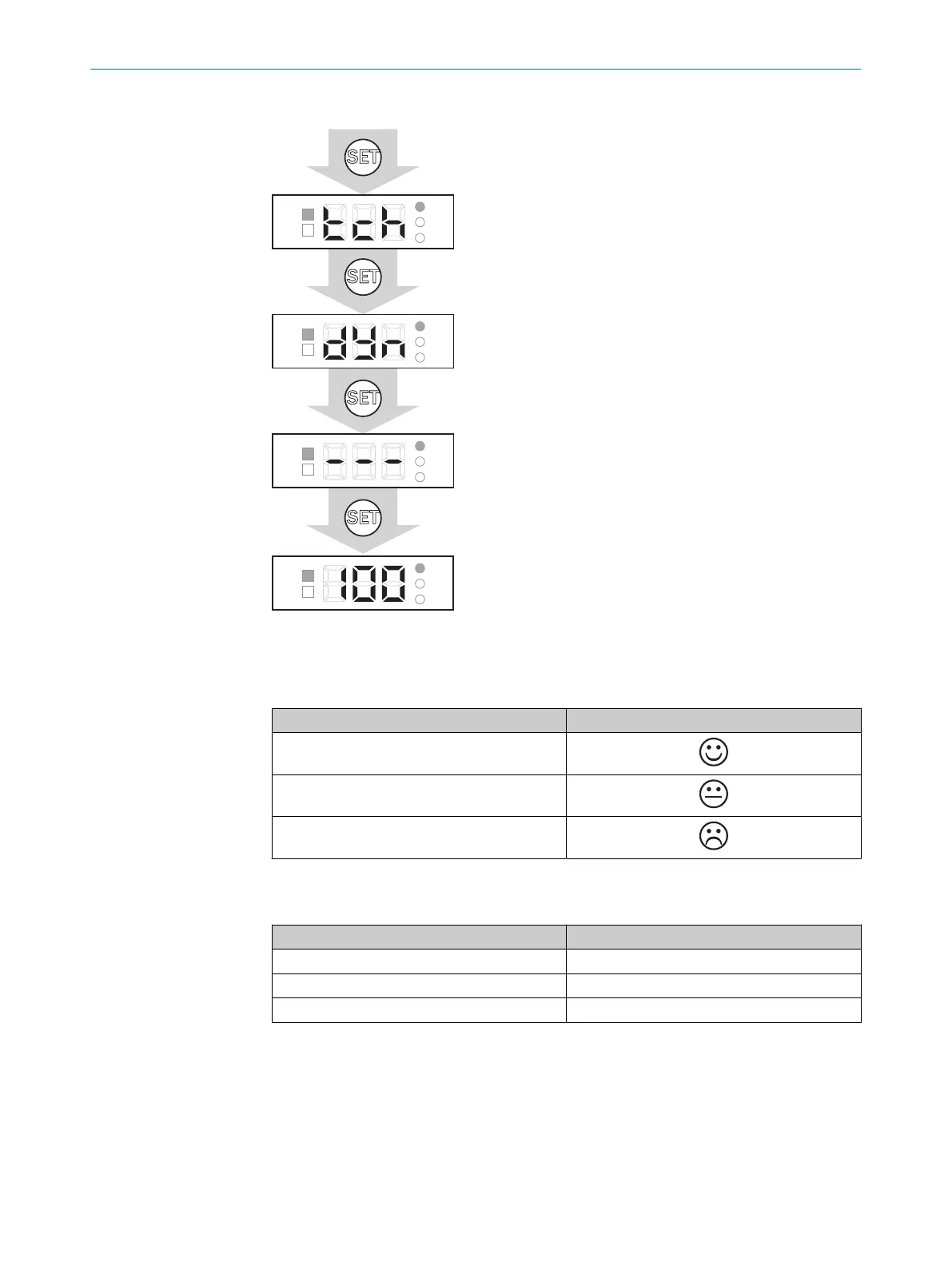

Carry out the following steps based on the example of dynamic teach-in:
SET
THR
PRO
TCH
PWR
Q
THR
PRO
TCH
PWR
Q
THR
PRO
TCH
PWR
Q
THR
PRO
TCH
PWR
Q
SET
SET
SET
Quality of Teach*
Figure 4: Dynamic teach-in
*Quality of Teach
Table 6: Quality of Teach display
Value Quality
61 - 100
31 - 60
1 - 30
**Run = indicates the live measured value
Table 7: Quality of Run display
Value Remission value
0 No remission
400 White
999 Maximum remission, with glossy material
