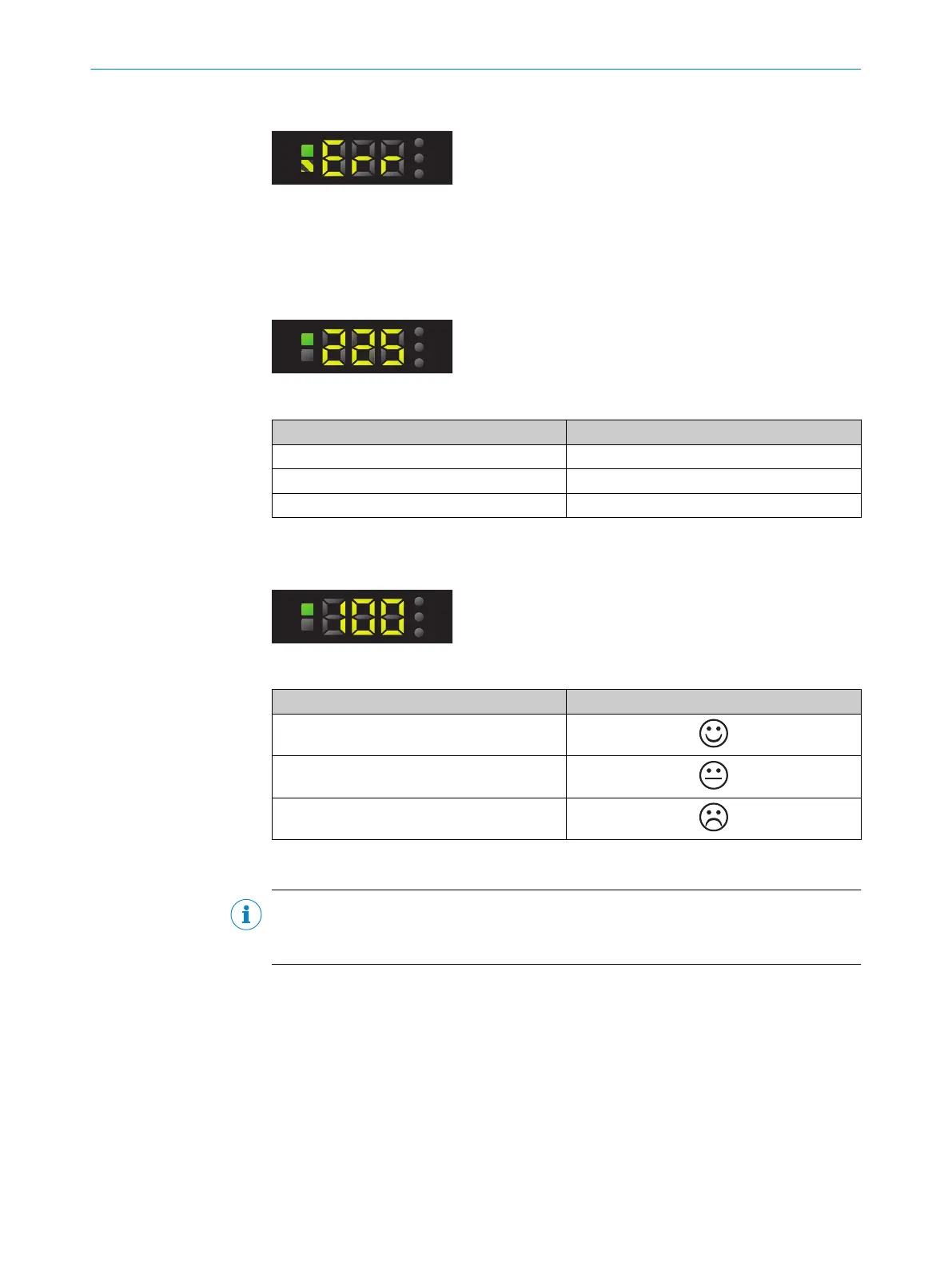

Short-circuit and overcurrent detection
THR
PRO
TCH
PWR
Q
In the event of a short-circuit, Err appears on the display and the Q LED flashes.
Live measured value (run mode) after 2-point teach-in or dynamic teach-in
In run mode, the device displays the remission value currently being measured as a
digit.
THR
PRO
TCH
PWR
Q
Table 13: Remission value display
Value Remission value
0 No remission
400 White
999 Maximum remission, with glossy material
Quality of Run after 1-point teach-in/color mode
In color mode, the device displays the current Quality of Run value as a digit.
THR
PRO
TCH
PWR
Q
Table 14: Quality of Run
Value Quality
61 - 100
31 - 60
1 - 30
Display standby
NOTE
Control panel standby mode is not activated when a teach-in process is ongoing or
while an error message is displayed.
If no settings are made on the device for 5 minutes, standby mode is activated to save
electricity. Any settings made which have not been confirmed are not adopted.
To quit standby mode, one of the operating keys must be pushed.
OPERATION 7
