Product description
36 © SICK AG · Germany · All rights reserved · Subject to change without notice 8012471/ZN27/2017-06-09
Operating Instructions
LMS1xx Laser Measurement Sensors
Chapter 3
3.8.3 Measured value output
For the measured value output, the LMS1xx supplies measured values to one of the
interfaces. It is prerequisite for this data output that the LMS1xx is in the measurement
mode. There are two ways you can start the measurement mode:
start via SOPAS ET
PROJECT TREE, LMS…, PARAMETER, BASIC PARAMETERS, area MEASUREMENT
start via telegram
Recommendation After the measurement mode is started the LMS1xx needs a little time to reach the status
“Ready for measurement”. You should therefore query the status of the LMS1xx using the
sRN
STlms telegram.
Then request measured data by using a telegram on the interface from which you want to
receive measured data. There are two possible ways of doing this:
Exactly one measured value telegram can be requested using the sRN LMDscandata
telegram — the last scan measured is transferred.
Measured data can be continuously requested using the sEN LMDscandata telegram —
measured data are then transferred until the measured value output is stopped using
the sEN LMDscandata telegram.
Examples of single measured value output

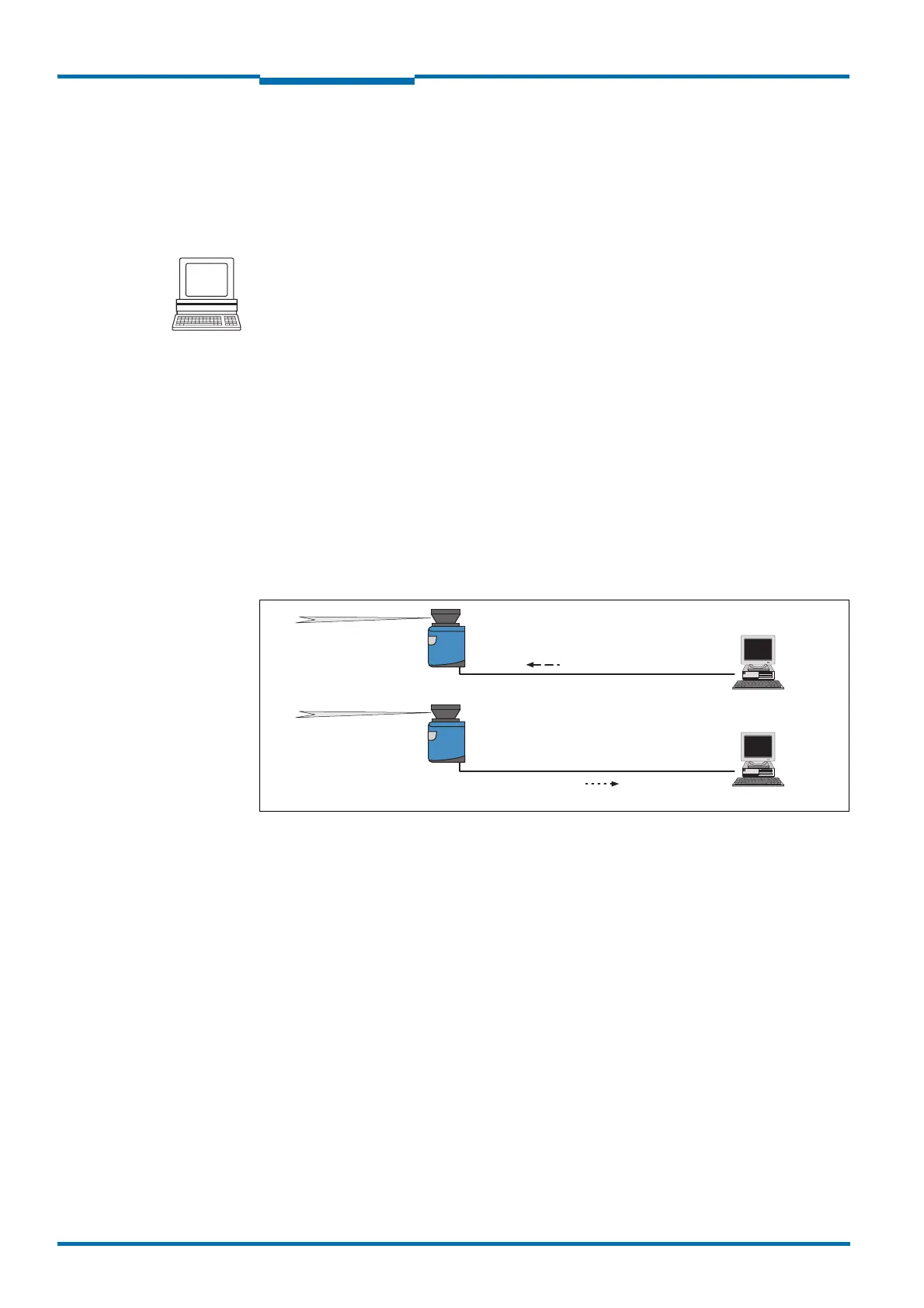

Fig. 21: Measured value telegram request
1. Start measurement
Request
<STX>sMN LMCstartmeas<ETX>
LMS1xx answer
<STX>sAN LMCstartmeas 0<ETX>
2. Query measuring status
You must query the status until status 7 (that is ready to measure) is achieved in the
reply.
Request
<STX>sRN STlms<ETX>
LMS1xx answer
<STX>sRA STlms 7 0 8 00:00:00 8 01.0 1.06 0 0 0<ETX>
Measured value telegram output
Measured value request
