SICK LMS100 User Manual

Operating Instructions
LMS1xx Laser Measurement Sensors
Technical specifications
8012471/ZN27/2017-06-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 97
Chapter 10
10.2 Operating range diagrams

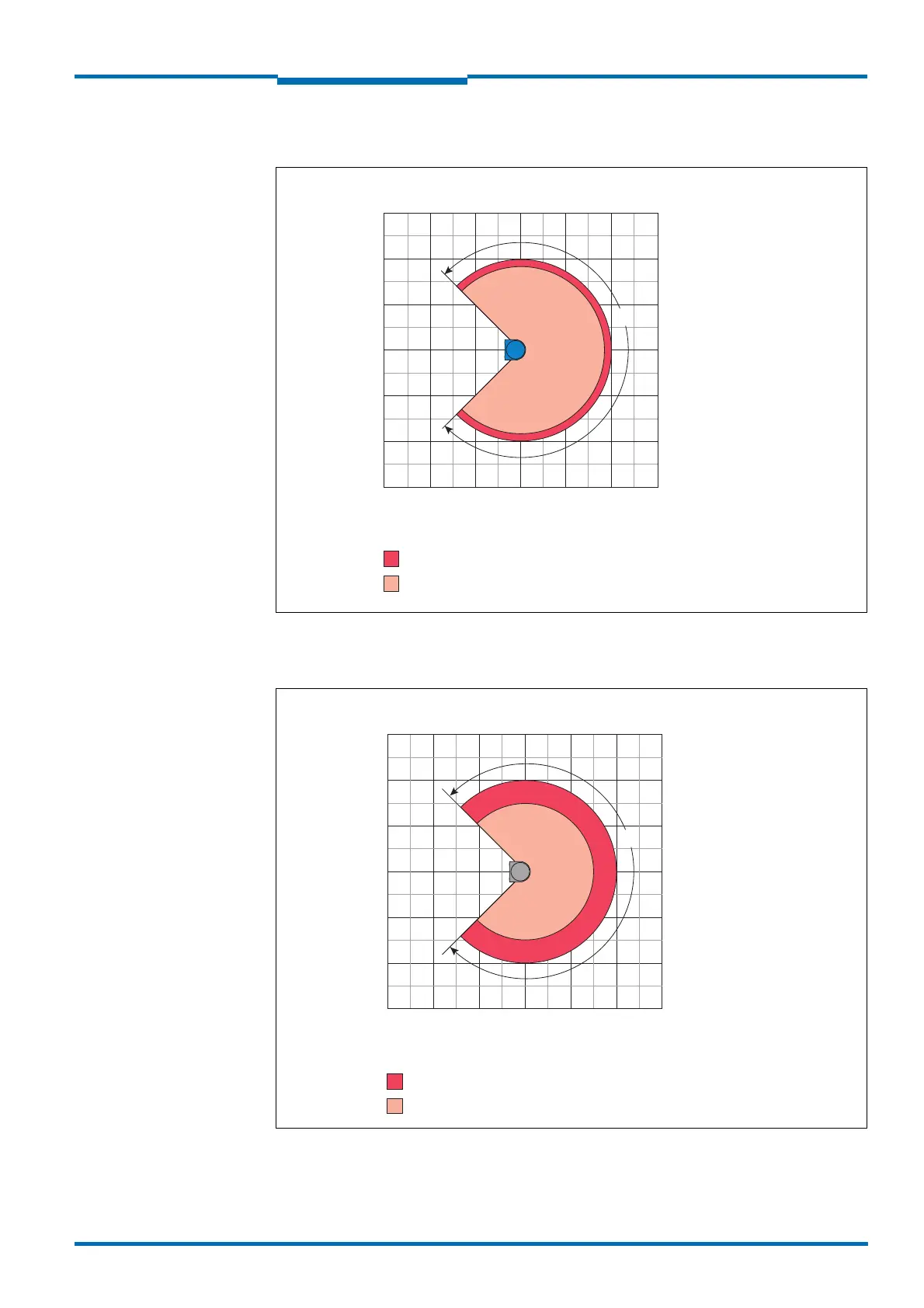

Fig. 60: Operating range LMS10x,/LMS11x/LMS12x/LMS13/LMC12x/LMC13x/LMS17x/
LMS18x
0
270°
Scanning range in m (ft)
–20
(–65.62)
20
(65.62)
–30
(–98.43)
30
(98.43)
–10
(–32.81)
10
(32.81)
Scanning range in m (ft)
–10
(–32.81)
–20
(–65.62)
10
(32.81)
20
(65.62)
30
(98.43)
–30
(–98.43)
0
Scanning range max. 20 m (65.62 ft)
Scanning range for objects up to
10 % remission 18 m (59.06 ft)
Fig. 61: Operating range LMS14x Security
0
–40
(–131.23)
40
(131.23)
–60
(–196.85)
60
(196.85)
–20
(–65.62)
20
(65.62)
270°
Scanning range in m (ft)
Scanning range in m (ft)
Scanning range max. 40 m (131.23 ft)
Scanning range for objects up to
10 % remission 30 m (98.42 ft)
–20
(–65.62)
20
(65.62)
60
(196.85)
–60
(–196.85)
0
0
