8025999/V1-0/2021-02 | SICKO P E R A T I N G I N S T R U C T I O N S | MICS3/OS3 electr. protection hood
Subject to change without notice
6 MAINTENANCE
▸ Use spanner SW19 to loosen and remove the locking nut on the M12 male connector.
Safely store locking nut.

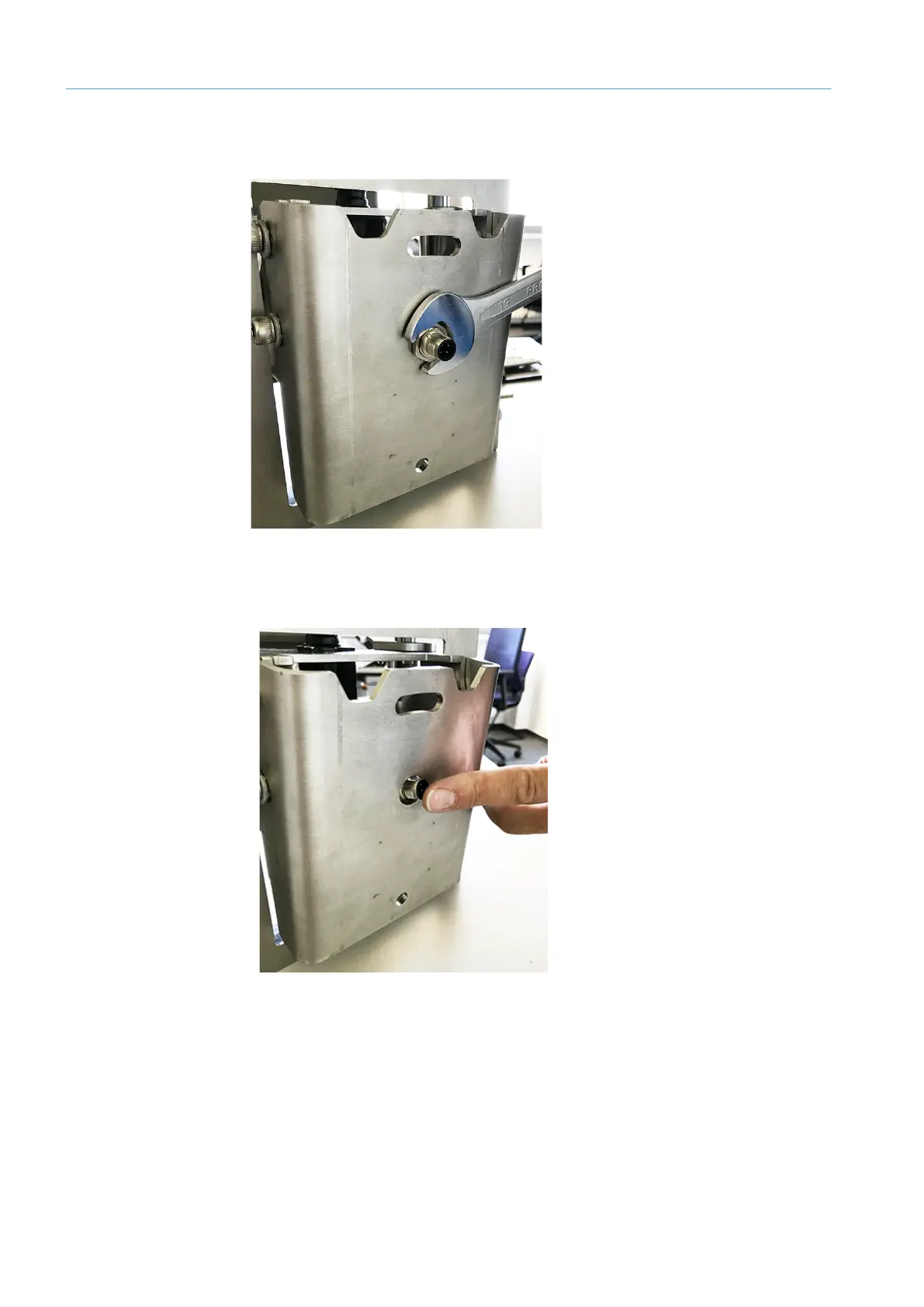

Fig. 16: M12 male connector on wall holder
▸ Press the male connector inwards.
Fig. 17: Move M12 male connector.
