MAINTENANCE 6
▸
Loosen and remove the M4 screws on the mounting bracket using Allen wrench SW3.

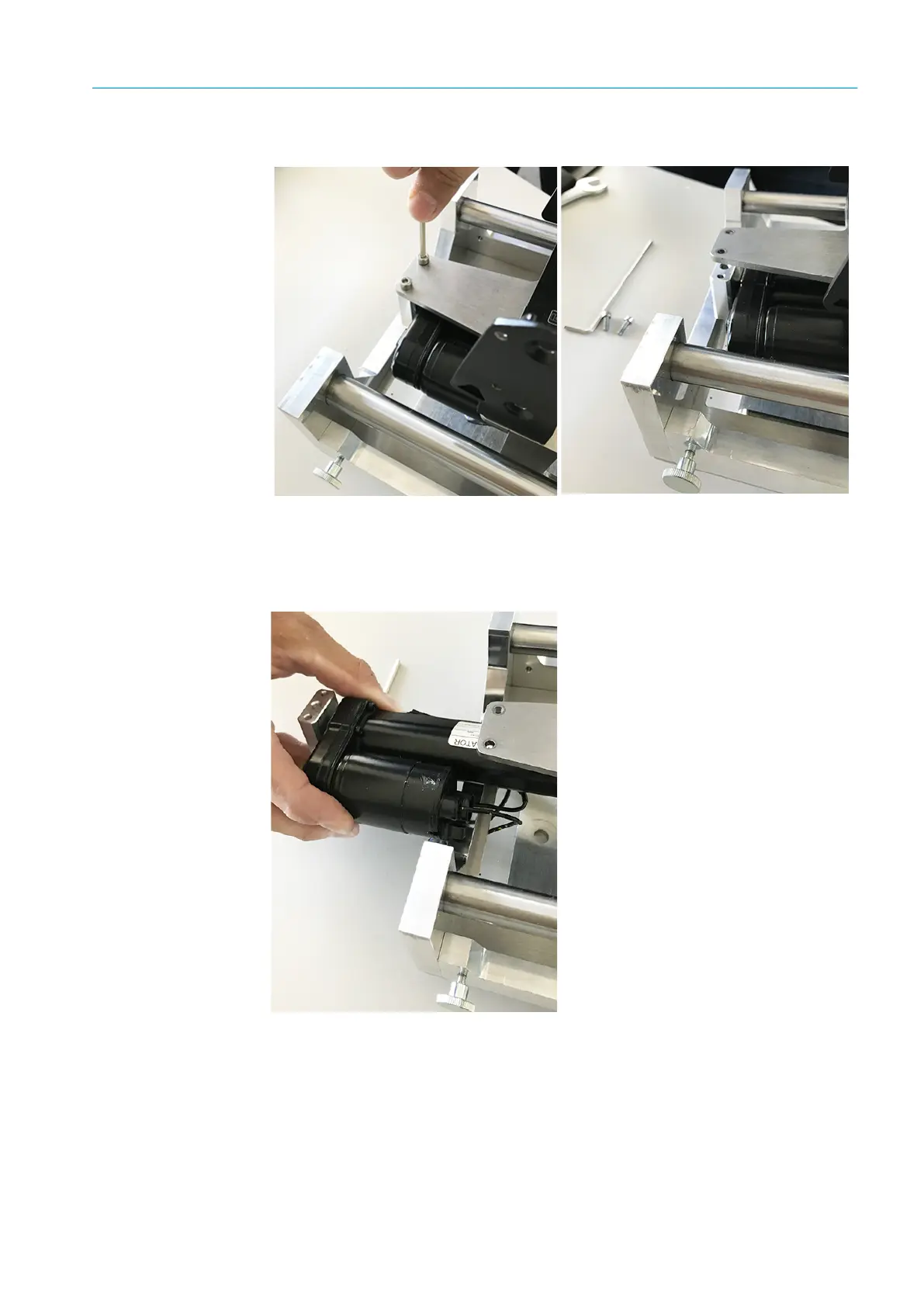

Fig. 18: M4 screws on mounting bracket
▸ Pull the actuator out downwards.
Fig. 19: Pulling out actuator
