5 Mounting

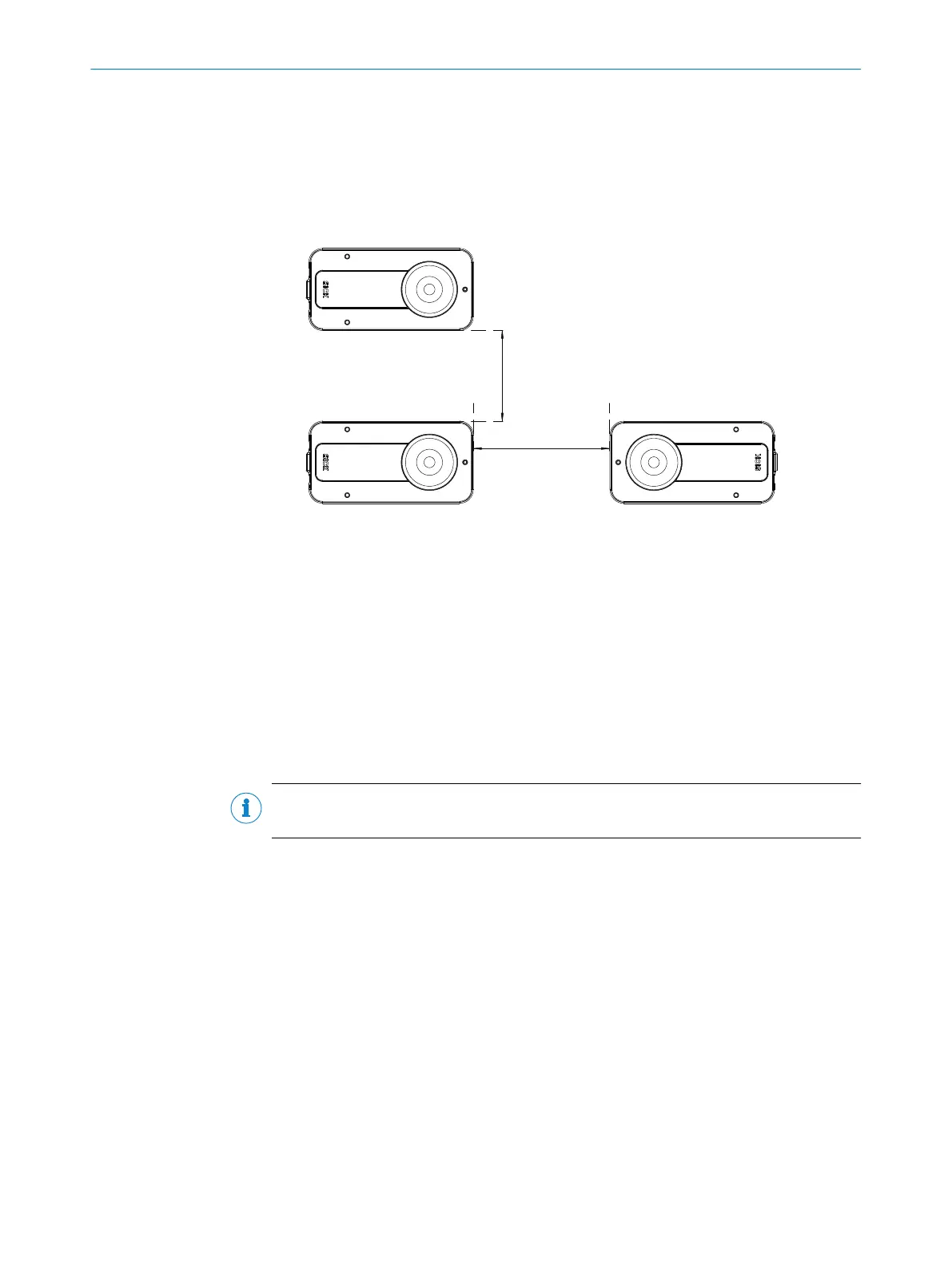

5.1 Mounting several safety switches
b
When several safety switches are mounted, the prescribed minimum distance
between the individual systems must be adhered to in order to avoid mutual inter‐
ference.
260mm
260mm
5.2 Mounting
2 possible mounting methods
T
he sensor can be mounted in 2 ways:
•
Surface mounting. The sensor is mounted on the fixed part of the protective
device (e.g., door frame).
•
Flush mounting. The sensor is mounted in the fixed part of the protective device
(e.g., door frame). There must be a suitable recess in the mounting surface. The
thickness of the mounting surface must be between 1.5 mm and 3 mm.
Dimensional drawing of the recess for flush mounting see
figure 17.
NOTE
Ins
talling the safety switch horizontally increases protection against manipulation.
Mounting the sensor
1.
Unscrew the fixing screw (hexagon socket, 2 mm) and remove the cover plate:
5 MOUN
TING
