SICK multiScan136 - Principle of Operation; Measurement Principle

6
Production site
7
Manufacturer
8
Typical power, max. power
9
Voltage supply
ß
MAC address
à
Data Matrix code with product data and link to product page
á
Web address of product page
Male connector
Information for identifying the male connector is located on the connector.
2
6
4
3
5
7
1

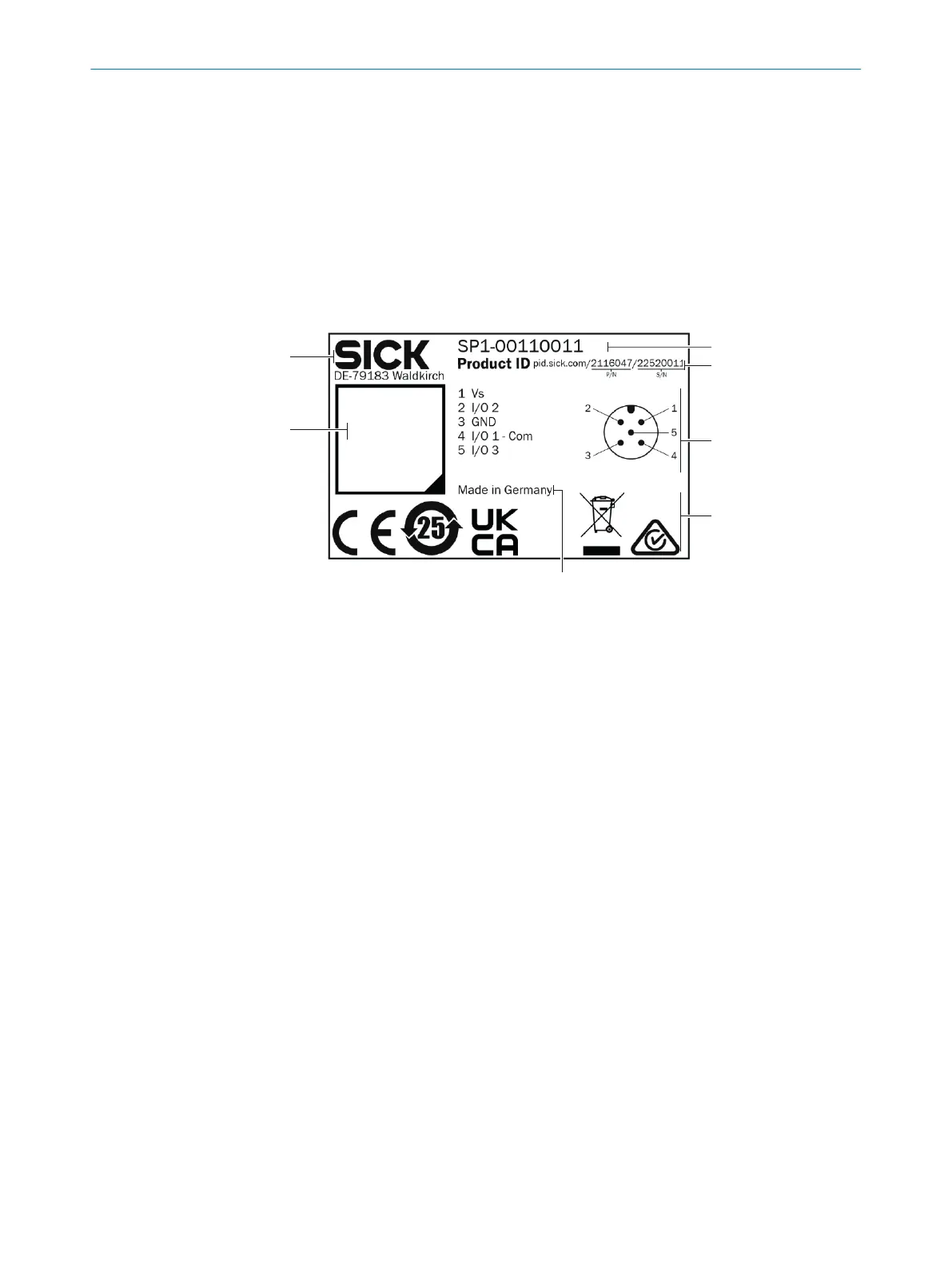

Figure 3: Type label for the multiScan male connector (example)
1
Type code
2
Product ID with part number (P/N) and serial number (S/N)
3
Pin assignment
4
Conformity mark/certification mark
5
Production site
6
Data Matrix code with product data and link to product page
7
Manufacturer
3.4 Principle of operation
3.4.1 Measurement principle
The device is an opto-electronic LiDAR sensor that scans the outline of its surround‐
ings with the help of laser beams without making contact. The device measures its
surroundings in spherical coordinates relative to its measurement origin. This is marked
by a circular indentation in the center of the optics cover. If a laser beam strikes an
object, the position of that object is determined in terms of distance and angle.
