The portion of the light that does not reach the front object can be reflected by a larger
object in the background. If all of the light reflected to the sensor is sufficient, this
object is detected. This can lead to a corruption of the measured value.

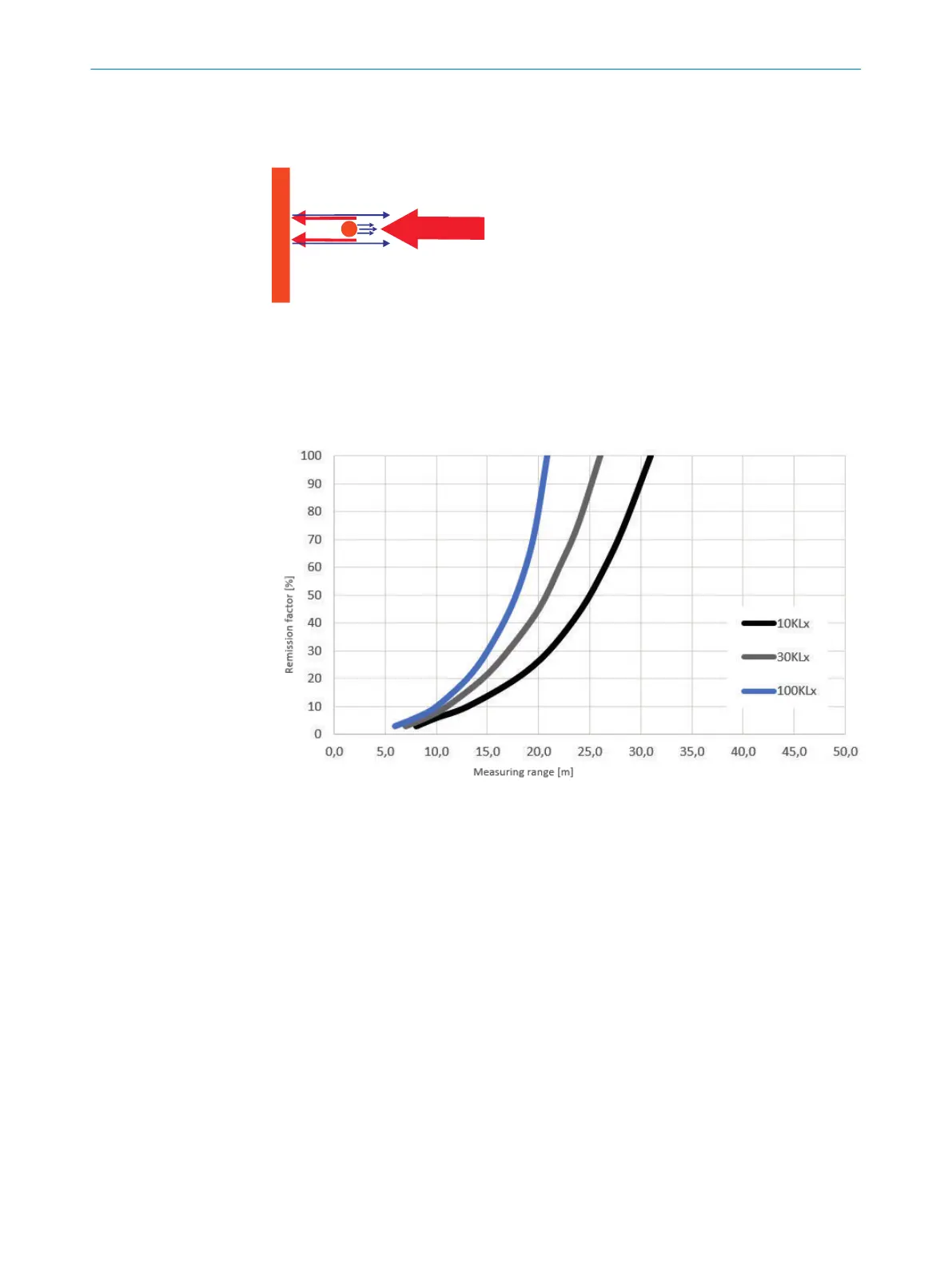

Figure 29: Object smaller than the laser beam diameter
3.4.11 Scanning range
The scanning range of the device depends on the remission of the object to be
detected. The better a surface reflects the incident beam back to the device, the
greater the scanning range of the device.
Figure 30: Scanning range as a function of the remission factor for various ambient light influen‐
ces (no filter activated; no influence from fog, rain or dust)
