Electrical installation
You must ensure that the machine cycle contacts meet the following criteria:
Machine cycle
contact
Criteria
MCC>TDC  The contact is normally closed.
 Before reaching the top dead centre, the contact must have been
open for at least 100 ms.
 The contact must be closed again at the top dead centre.
MCC>BDC  The contact is normally open.
 At the end of the dangerous movement, the contact muss must be
closed.
 After the MCC-TDC has opened, the contact can be opened again.
 The contact must be opened again before the MCC>TDC is closed.
SCC  The contact is normally open.
 The contact must be closed when the machine is restarted.
 The contact must already be closed when the MCC>TDC opens.
 The contact may be opened shortly after the machine is restarted.

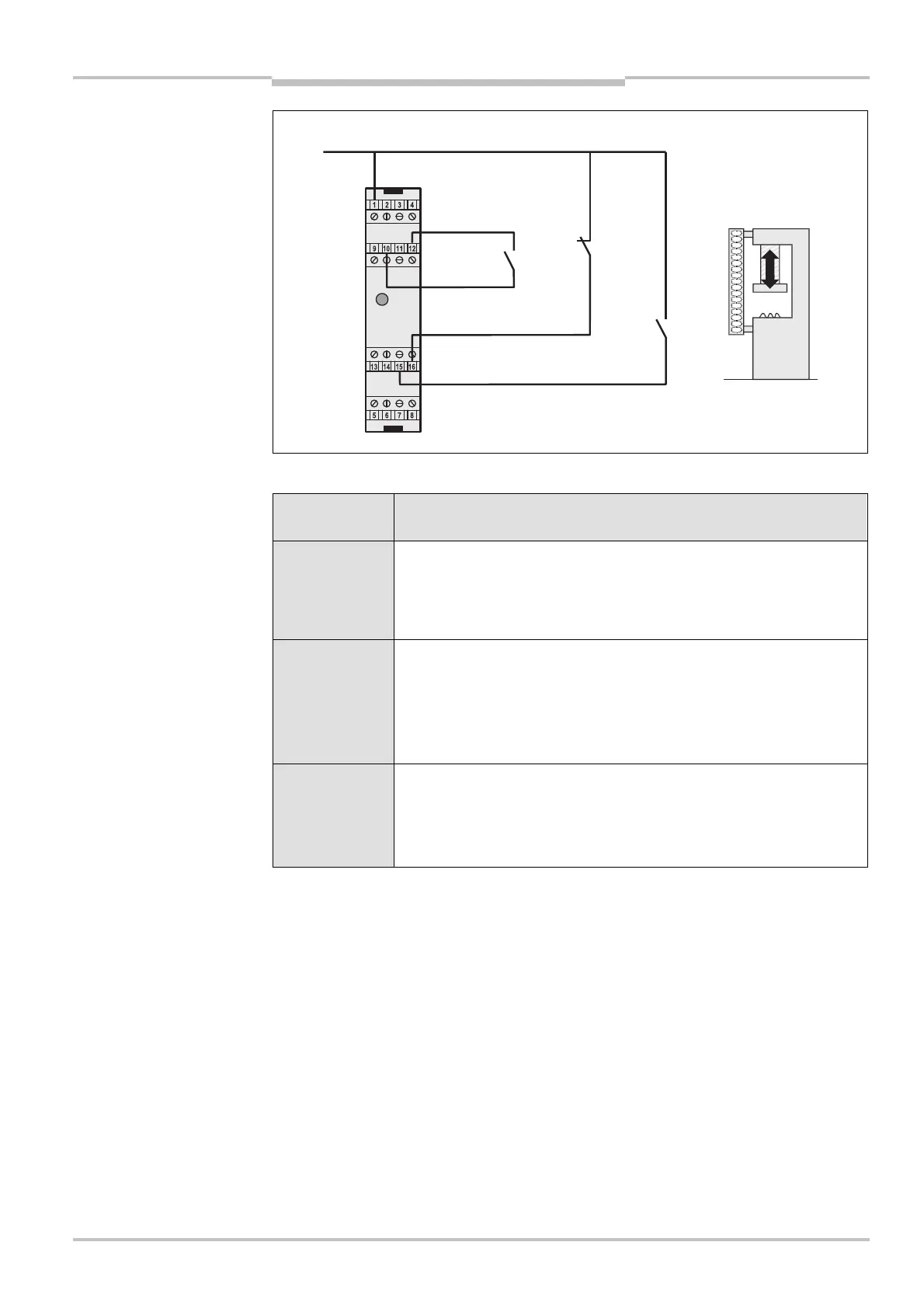

Fig.
12
:
Connecting the
machine cycle contact to
the UE402
Tab.
7
:
Criteria for
connecting the machine cycle
contact
24 V DC
Run
-
on monitoring
(SCC)
Top dead centre (MCC,TDC)
Bottom dead centre (MCC,BDC)
