8.12.4.4 Manually adjusting the range of the analog output
During teach-in, the current or voltage range is automatically set to the value defined by the relevant teach-in
mode. If the current or voltage range does not correspond to the expected results, the thresholds can be adjusted
manually independently of the teach-in.

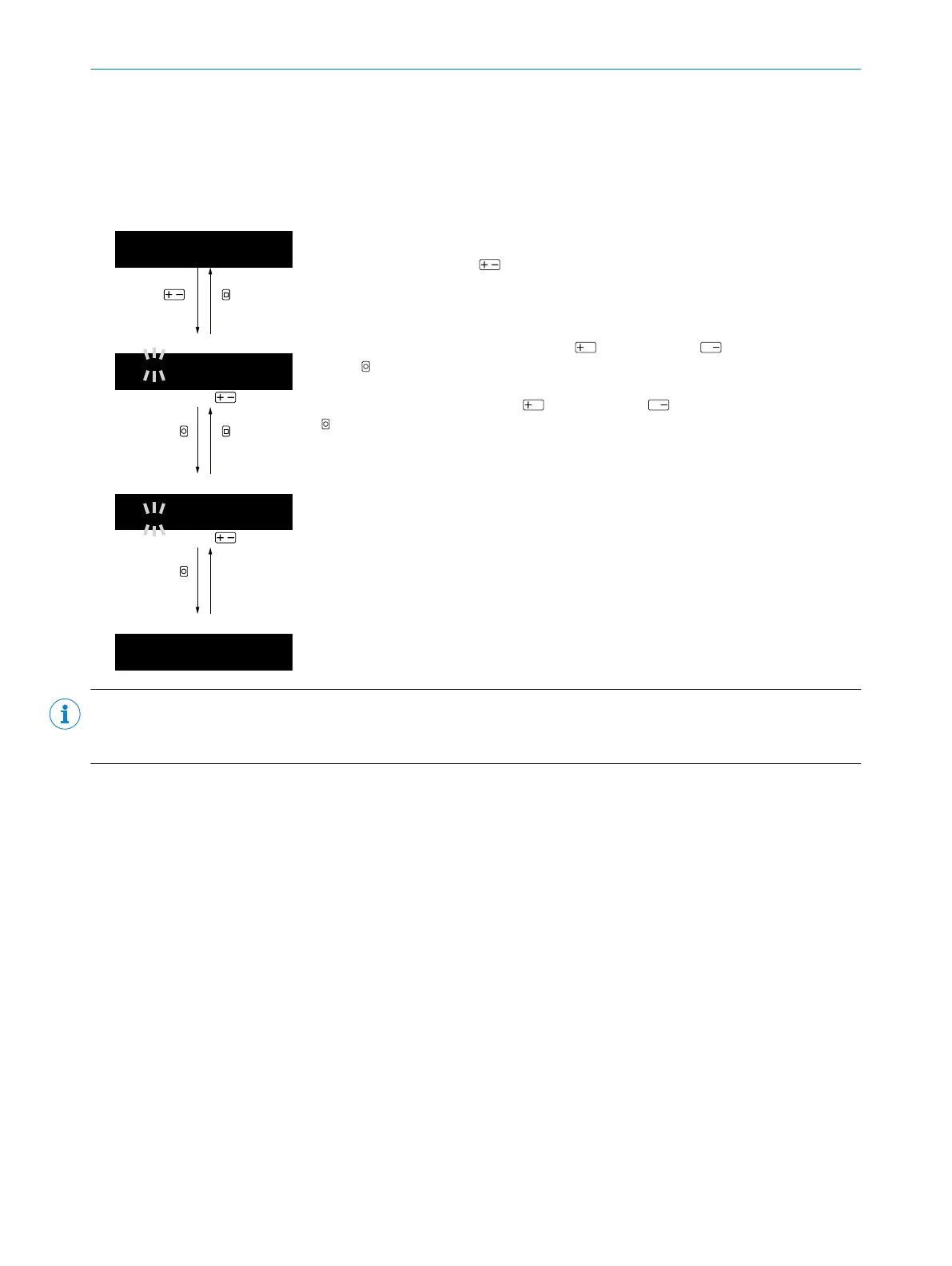

Table 77: Manually setting the current or voltage range
1234
ESC
1
A
|
9999
0
Manually setting the current or voltage range
Activate manual assignment of the received light values (digits) to the current
or voltage values using (received light value for assignment to the upper
threshold (UT) of the current or voltage range 20mA/10V/5V flashes).
1234
ESCOK
1
A
|
9999
0
-----------------------------------------
Adaption with
Adjust the upper threshold (UT) using (increase) and (decrease). Confirm
using . After confirmation, the received light value for assignment to the lower
threshold (LT) of the current or voltage range 4mA/0V/1V flashes. Adjust
the lower threshold (LT) using (increase) and (decrease). Confirm using
.
1234
OK
1
A
|
1111
0
-----------------------------------------
Adaption with
After confirmation (or 30seconds without button operation), the display returns
to run mode.
1234
1
A
|
1111
22
Run mode
NOTE
The yellow LED (for indicating the status of the analog channel) lights up when the analog output is active (signal in
the range of the configured lower and upper thresholds 4-20mA/0-10V/1-5V).
