12.2 Dimensional drawings
Standalone device
1
2
3
R
S
18.8
(0.74)
36.6 (1.44)
72.45 (2.85)
2x Ø 2.3
(0.09)
8
(0.31)
8
(0.31)
10.4
(0.41)
33.2 (1.31)
79.15 (3.12)
0.7
(0.03)
135° & 180°
10.5 (0.41)
L

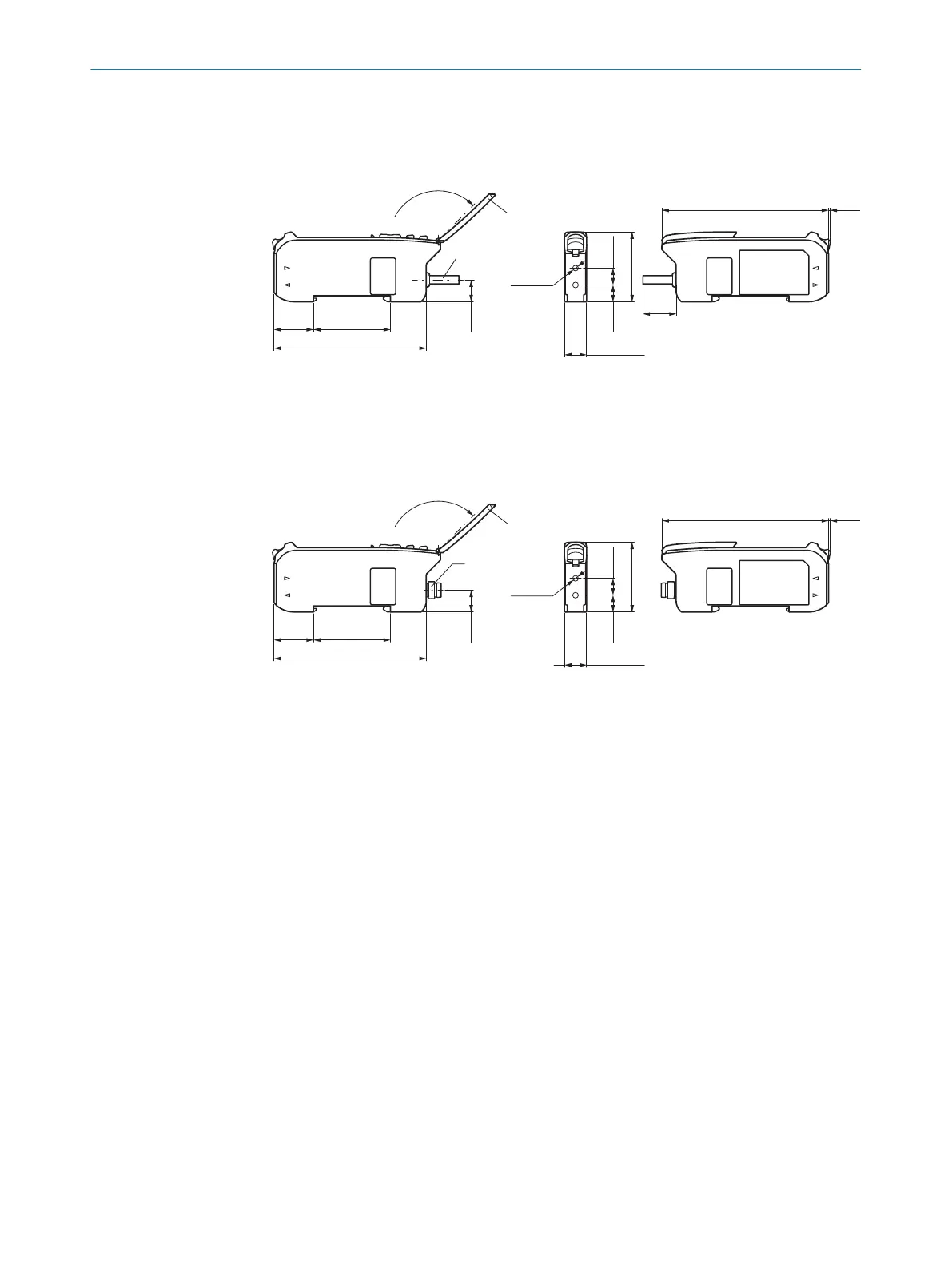

Figure 20: Standalone device with cable
1
Aperture angle
2
Hinged cover for the pushbuttons
3
Connection
1
2
R
S
18.8
(0.74)
36.6 (1.44)
72.45 (2.85)
2x Ø 2.3
(0.09)
8
(0.31)
8
(0.31)
10.4
(0.41)
33.2 (1.31)
79.15 (3.12)
0.7
(0.03)
135° & 180°
10.5 (0.41)
3
Figure 21: Standalone device with male connector, M8
1
Aperture angle
2
Hinged cover for the pushbuttons
3
Male connector M8
