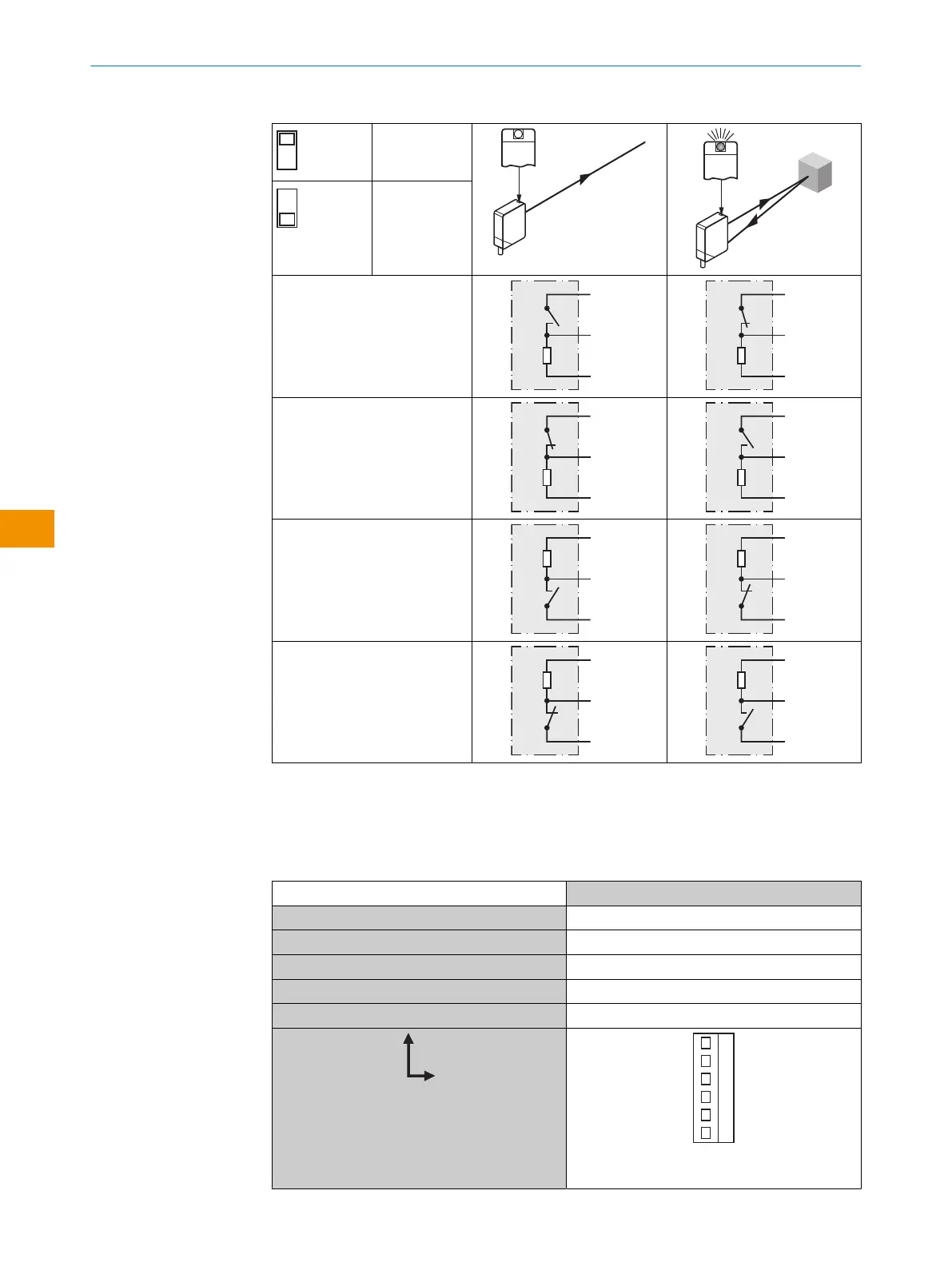

Table 3: DC
H
D
3
NPN
PNP
4
H, PNP: Q/Q (≤ 100mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
D, PNP: Q/Q (≤ 100mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
H, NPN: Q/Q (≤ 100mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
D, NPN: Q/Q (≤ 100mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
5.6 WT34-Rxxx
U
B
20V ... 250V AC/DC, see "Technical data", page 34
Table 4: AC/DC
WT34-R2x0
1 L1 / +
2 N / -
3 Relay
4 Relay
5 Relay
1 2 3 4 5
0.14 ... 1.5mm
2
I
N
= 4A
