8.3 Fitting the Electrical System
• Once all the cables are connected they are to be secured in place by attaching the
supplied retaining clip to the control box.
• Drive the bed to its maximum height then secure the actuator cables in the twist
clips under the mattress platform (refer to section 8.4). Ensure each bed end
actuator cable has enough free cable to allow full movement of the actuator.
Note: The plugs only fit into the ports in one orientation. Ensure the cables
are plugged fully into the control box.
• Plug the actuator and handset cables into the control box. The control box has
a label showing the correct port into which the corresponding cable should be
inserted (8.3.1).
Head end actuator
Foot end actuator
Backrest actuator
Knee break actuator
Handset
Warning
The two bed ends are identical however plugging the actuators into
the correct ports is important to ensure the bed ends operate as
intended - Risk of the bed having the ability to go into head down tilt
accidentally if incorrectly plugged in, creating a potential hazard when
in use.

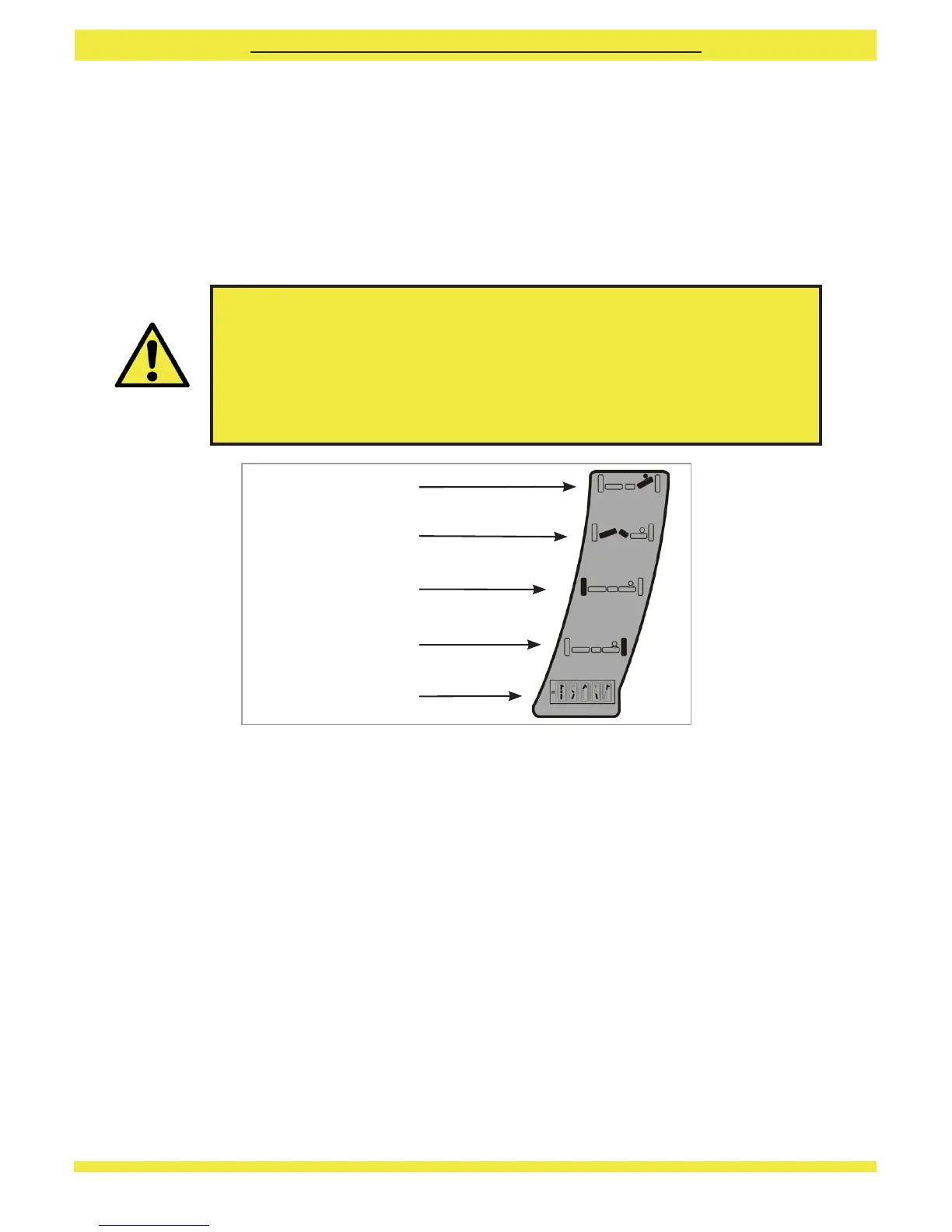

8.3.1 Control box label
FOR AUTHORISED PERSONNEL REFERENCE ONLY
