18

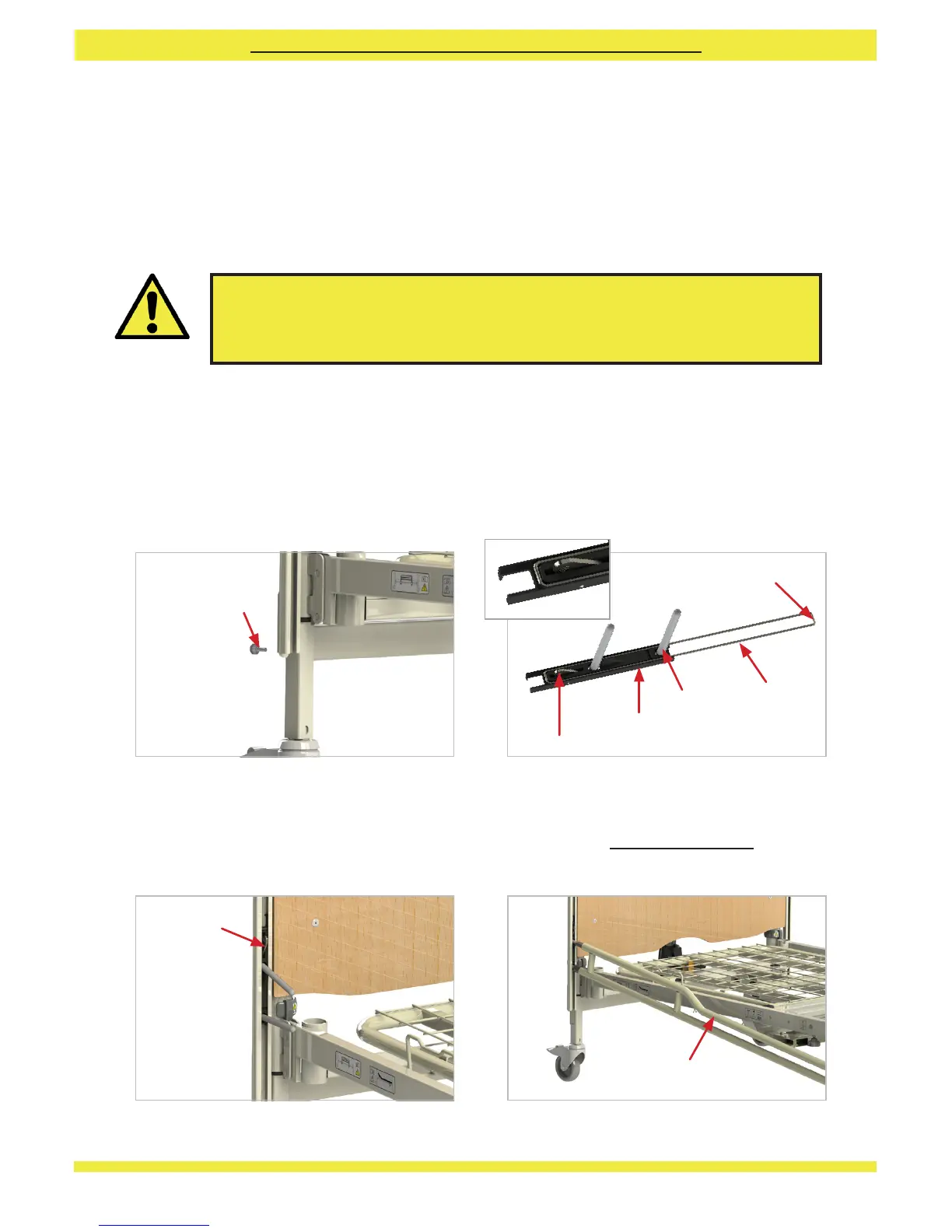

8.6 Fitting the Side Rails
Ensure the bed extension is positioned at the correct length for the side rails that are
being fitted (extended length or standard length side rails). Refer to section 8.8 for
details of how to adjust the bed extension.
Raise the bed to approximately the midpoint of its height range. Refer to section 9.4 for
details of handset operation.
Note: if the side rail finger blocks are already located inside the side rail
channels, remove the finger blocks from just one end of the bed, then proceed
to assembly stage 4 below.
Unscrew the thumb wheels located at the
bottom of each side rail channel.
Insert the top side rail block into one of the
side rail channels until it latches in the lowest
position; note the correct orientation of the
block (release latch to top).
Slide the top side rail, identified by a bent bar, over
the fingers in the top side rail block. This must be
oriented so the bent bar is at the top, otherwise
assembly will not be possible.
Clip the side rail wire over the top side rail block,
identified by the metal release latch at one end.
1.
3.
2.
4.
Latch to top
Bent bar to top
Thumb wheel
If there is any doubt about the assembly of the side rails contact the
provider of the equipment or Sidhil Ltd., incorrectly fitted side rails can
lead to death.
Warning
8.6.1 Thumb wheel removed 8.6.2 Top side rail block and wire assembly
8.6.3 Top side rail block latched 8.6.4 Top side rail inserted
FOR AUTHORISED PERSONNEL REFERENCE ONLY
Top side rail block
Side rail wire
Finger
Gap in side rail wire
Release latch
