8.4 Cable Routing

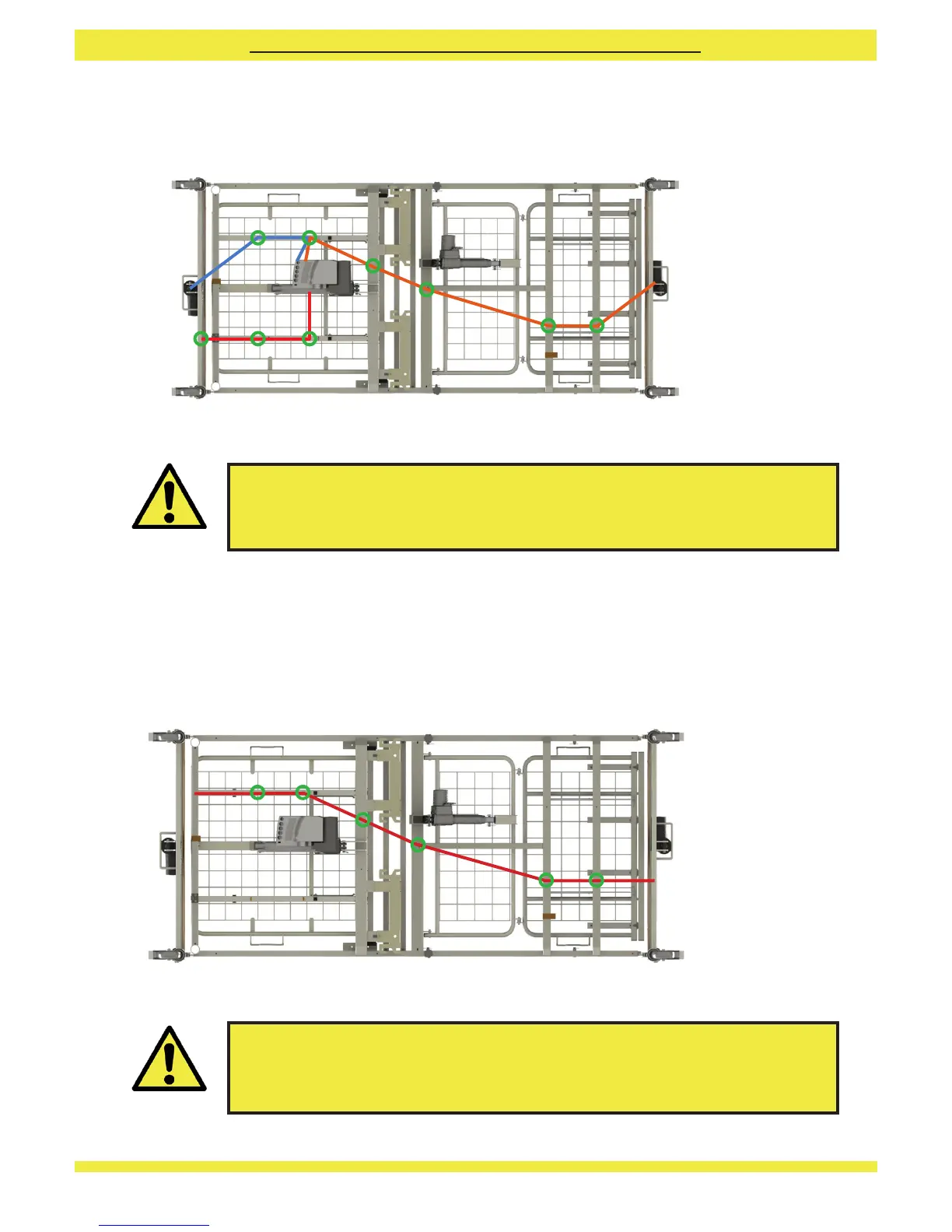

The actuator cables are to be routed on the bed frame as shown below:
8.5 Ancillary Product Cable Routing
When fitting ancillary electrical equipment the ancillary mains cable is to be routed
using the twist cable clips located underneath the bed. These clips are shared with the
bed’s actuator cables.
Ensure all ancillary cables are free from moving parts and are not under
excessive tension to avoid cable damage - Damaged cables can create a
risk of electrocution / fire.
Ensure all cables, in particular the mains cable, are free from moving parts
and are not under excessive tension to avoid cable damage - Damaged
cables can create a risk of electrocution / fire.
Cable Clips
Mains cable
Head End Actuator
Cable
Foot End Actuator
Cable
Ancillary product
cable routing
Warning
Warning
8.4.1 Bed cable routing
8.5.1 Ancillary product cable
routing
