19
Repeat for the other end of the bottom side rail.
Slide the bottom side rail, identified by two
parallel bars and a diagonal support, over the
fingers in the bottom side rail block. This side
rail must be oriented with the holes facing
downwards. Raise the side rail so it latches in
place at one end.
Reinsert the thumb-wheels into the bottom
of each side rail channel to secure the
channels in place.
Repeat the process for the other side of the bed.
Check the side rails operate correctly to confirm
that they are correctly assembled.
7.
9.
8.
10.
Latched
Holes to underside
Connect another side rail wire and top side rail
block together as described in step 2, and insert
the fingers into the vacant end of the top side rail.
Lift this top side rail block into the channel until
it latches in place.
Release the latch on one of the top side rail blocks
and steadily lower to allow sufficient space for the
bottom side rail block to clip over the lift wire.
It is essential that the lift wire is clipped into the
bottom side rail block in the correct location.
5. 6.
Lift wire location
Bottom side
rail block

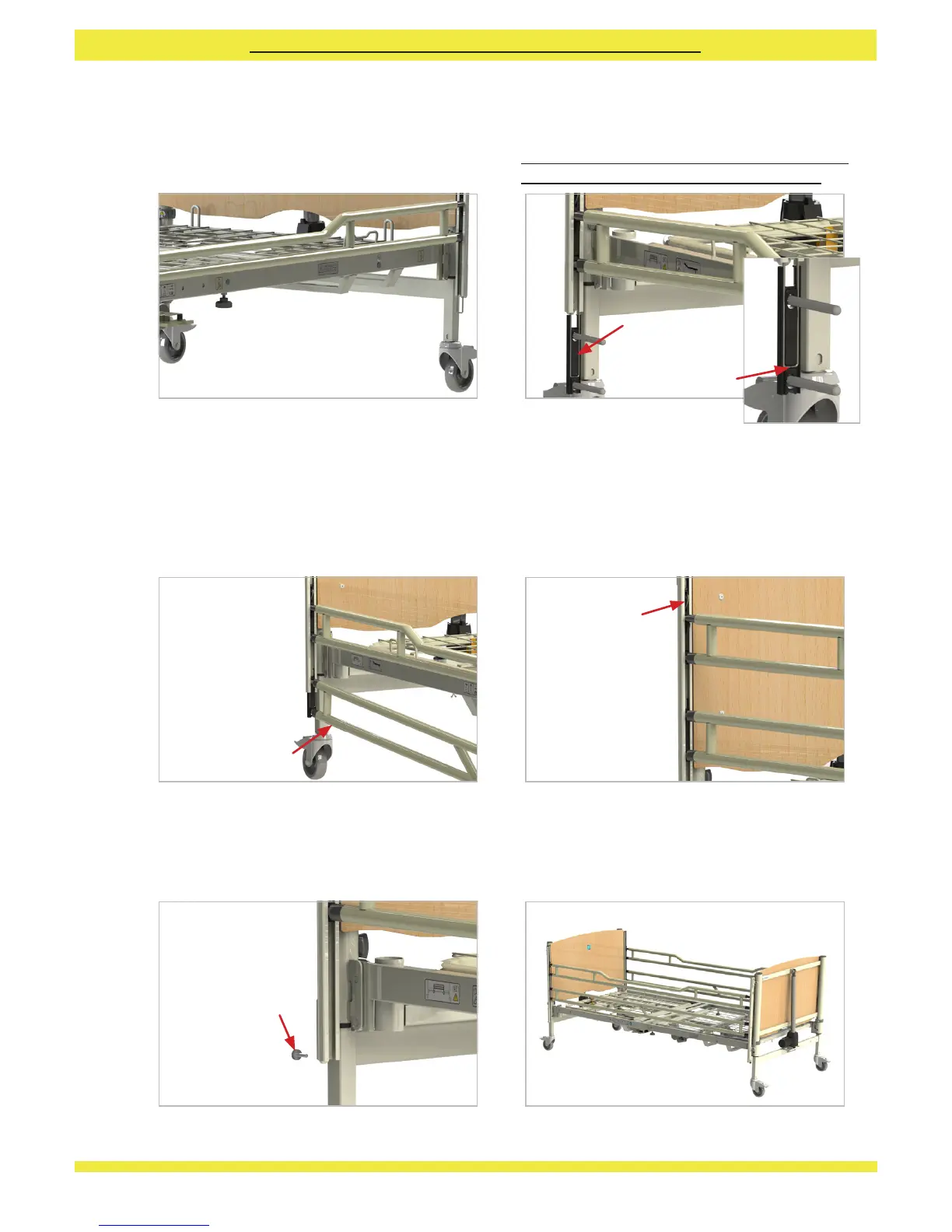

8.6.5 Top side rail assembled
8.6.9 Thumb wheel re-inserted
8.6.7 Bottom side rail inserted
8.6.10 Side rails fitted
8.6.8 Side rail raised
8.6.6 Bottom slide block and wire
assembly
Thumb wheel
FOR AUTHORISED PERSONNEL REFERENCE ONLY
