Siegenia GENIUS 2.2 PANIC - Connections and Operating Elements

9/289/2802.2020H47.ELEKS014EN-00


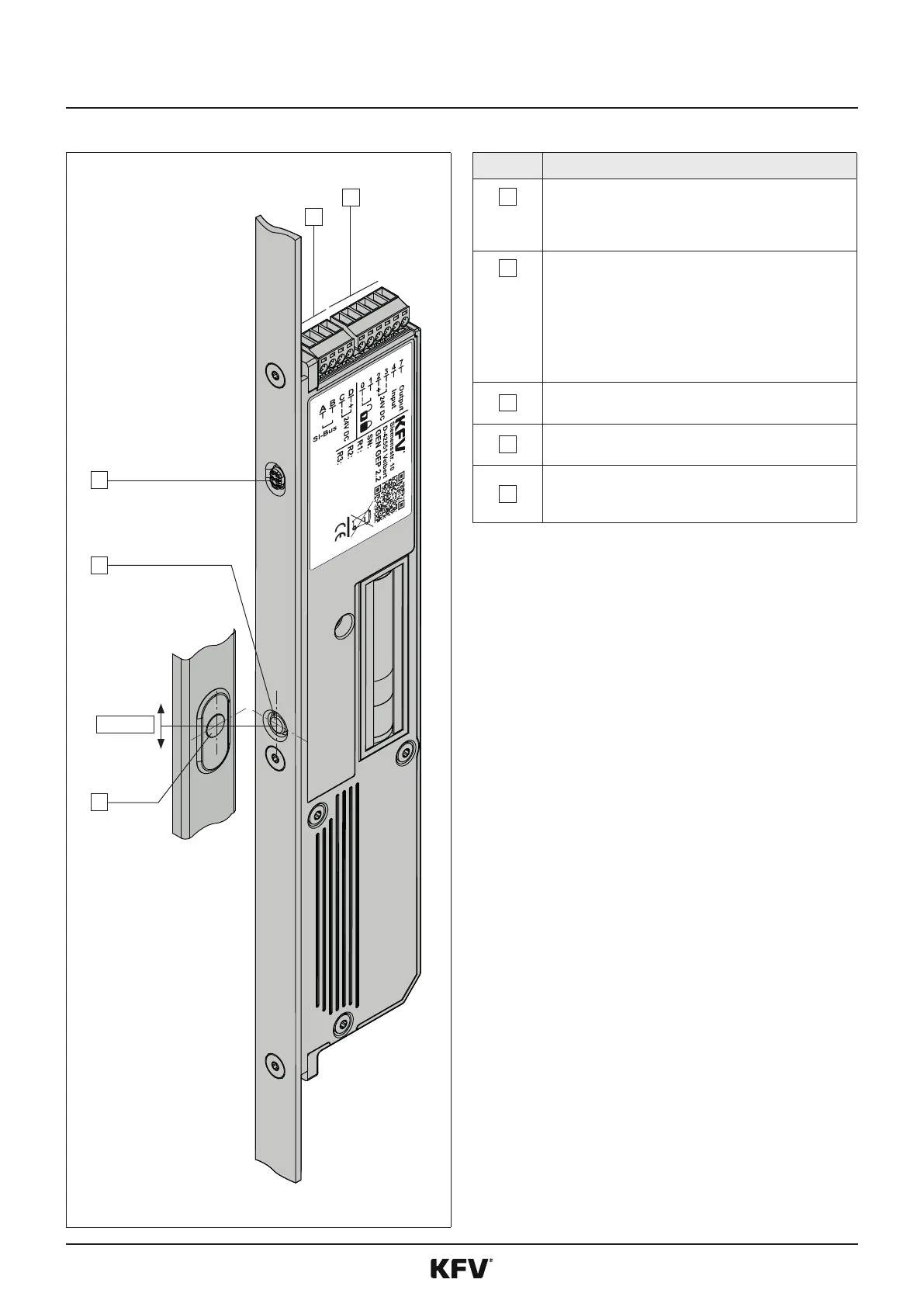

GENIUS 2.2 PANIC, Electromechanical mul-point lock
 
1
2
3
4
5
± 3 mm
 
1

terminal A/B: data interface SI-BUS
terminal C: supply voltage (- ) GND
terminal D: supply voltage + 24 V DC
2

terminal 0/1: mode of operaon switchover day/night mode
terminal 2: supply voltage + 24 V DC
terminal 3: supply voltage (-)
terminal 4: input for external unlocking signal
at + 24 V DC ≥ 1 seconds = opening process
terminal 7: feedback function for the locking status indicator
(adjustable via menu)
3
Buon with menu LED for menu navigaon to make all
adjustments of the GENIUS 2.2 PANIC.
4
status LED to indicate the current operang status;
magnec sensor
5

the magnet must be posioned centrally in relaon to the
magnec sensor [4] (permissible vercal tolerance ± 3 mm)
