Installation and operating instructions MHS400 smart
05.2017 17
7.3.2 Through hole for cable channel in lift & slide sash
Timber elements require a through hole (Ø 15 mm) for the cable channel in the sash groove in the top corner of the lift & slide
sash on the locking side. This hole is created by pre-drilling to Ø 10 mm with a drill 180 mm long and then finish-drilling to Ø
15 mm (Fig. 5 and 6).
The through hole can be drilled with the through hole jig (see Fig. 6)
(see accessories, page 53).
Through holes do not have to be drilled for HS PVC and aluminium profiles. If necessary, the slider support can be machined
to accommodate the cable channel
4
50
30°
5
6

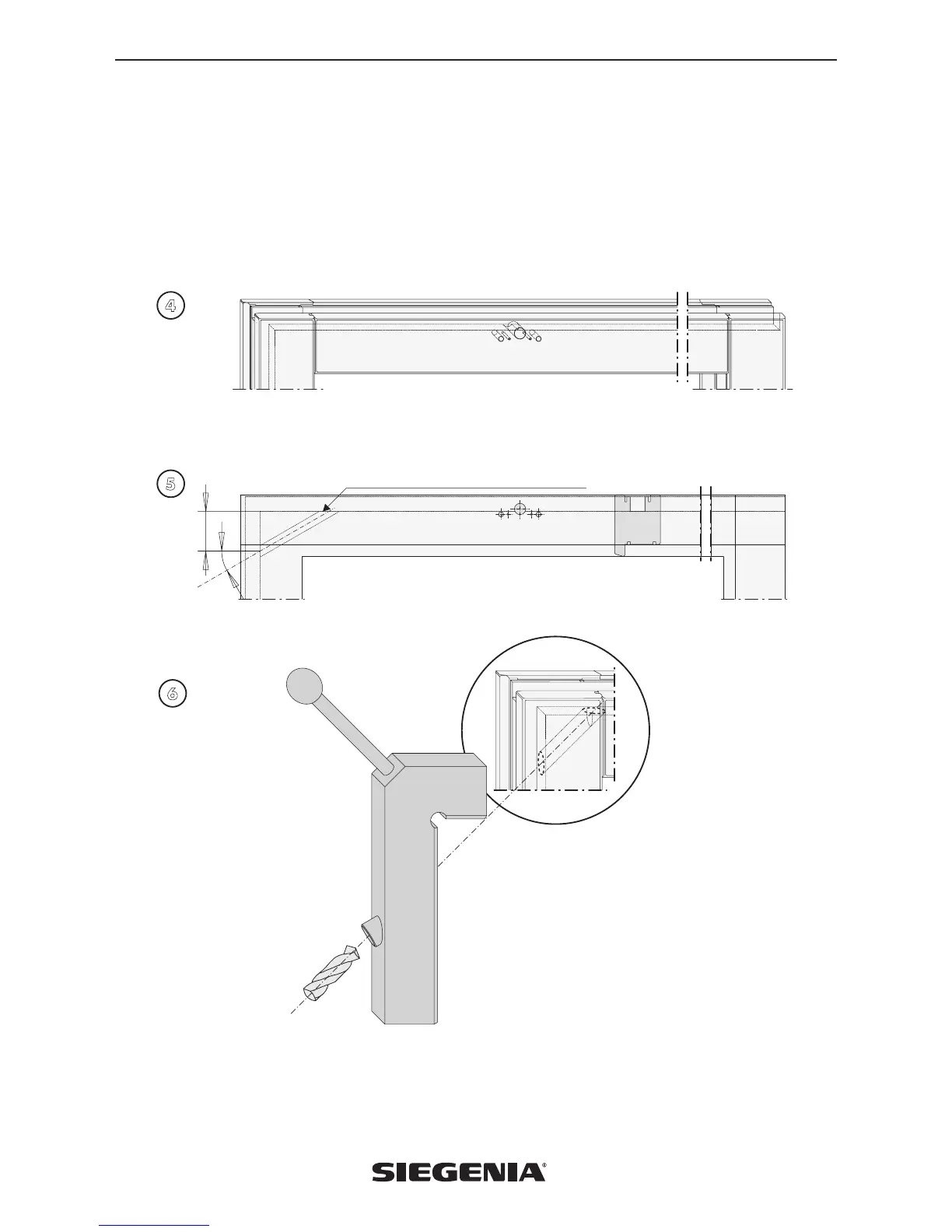

Drilling dimensions for the through hole on the lift & slide sash
(Fig. for timber profile DIN left - DIN right is a mirror image)
Through hole Ø 15 (for cable feed-through)
Jig
through hole
Drill 180 mm long
Ø 10 pre-drill and
then finish drilling to Ø 15
