7.3.3 Drill holes for lift drive HA and cable feed-through
Drill the holes on the locking side of the lift-slide sash for the lift drive HA and the cable feed-through. There are two versions
for drilling the holes. Use the fixing plate HA as the drilling template.

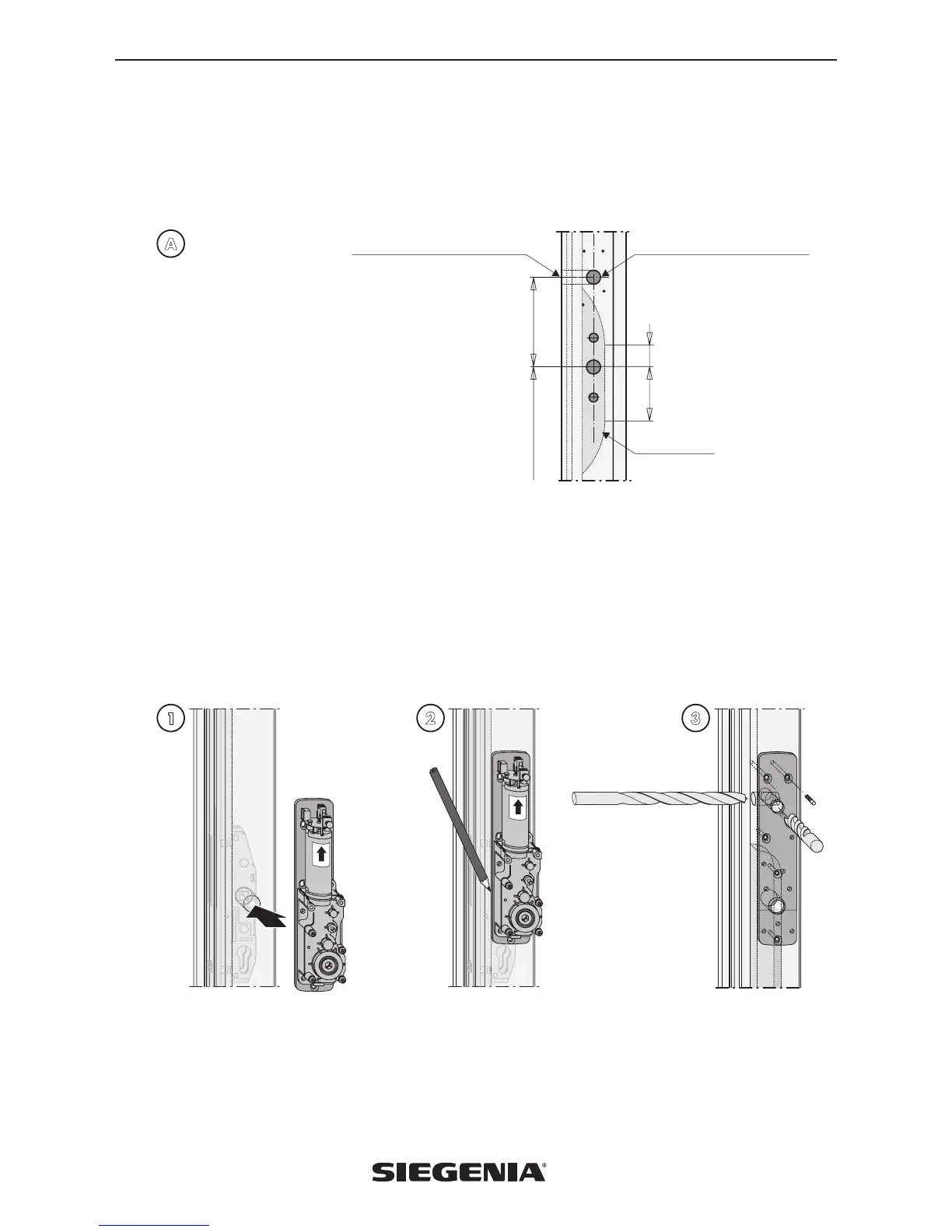

Version A — Existing gear recess (e.g. in lift & slide sash being retrofitted):
A
3070
120
Cable feed-through Ø 15 at side
All dimensions in mm
Ø 200 milling cutter
Handle position
Cable feed-through Ø 15 at front
1. Connect the lift drive HA to the fixing plate HA (do not screw)
2. Insert the square of the drive unit into the square mount on the lift & slide hardware gear and align on the lift & slide sash
(Fig. 1)
3. Mark the external edges of the fixing plate HA (Fig. 2)
4. Take the lift drive HA off the fixing plate HA
5. Use the outline and drilled holes of the fixing plate HA for the marking out and drilling.
6. If necessary, clamp on the fixing plate HA as a drilling template and secure with 2 suitable screws.
7. Remove the lift-slide hardware gear.
8. Drill the cable feed-through at the front and side (Ø 15 mm) (Fig 3).
1 2 3
Always assemble
the lift drive HA
upright
Ø 15 mm
cable feed-through at side
in eurogroove
