Siemens 1FT7 - Motors Without DRIVE-CLiQ Interface; Connecting the Temperature Sensor

Connection
6.2 Electrical connection
1FT7 synchronous motors
36 Operating Instructions, 04/2010, 610.40075.40b
6.2.6 Motors without DRIVE-CLiQ interface
If a motor is not equipped with a DRIVE-CLiQ interface, the speed encoder and temperature
sensor are connected via a signal connector.
Motors that are not equipped with DRIVE-CLiQ require a Sensor Module Cabinet-Mounted
(SMC) or a Sensor Module External (SME) when operated with SINAMICS S120. The motor
is connected to the SMC or SME via the signal line. The SMC or SME is connected to the
motor via a MOTION-CONNECT DRIVE-CLiQ cable.
6,1$0,&66
3RZHUFDEOH
6LJQDOFDEOH
0RWRU
&RQWUROFDELQHW
3RZHUFDEOH
6LJQDOFDEOH
0RWRU
&RQWUROFDELQHW
(
0
a
6,1$0,&66
'5,9(&/L4
˽
0RWRU
0RGXOH
6HQVRU0RGXOH&DELQHW60&
(
0
a
'5,9(&/L4
˽
0RWRU
0RGXOH
6HQVRU0RGXOHH[WHUQ60(

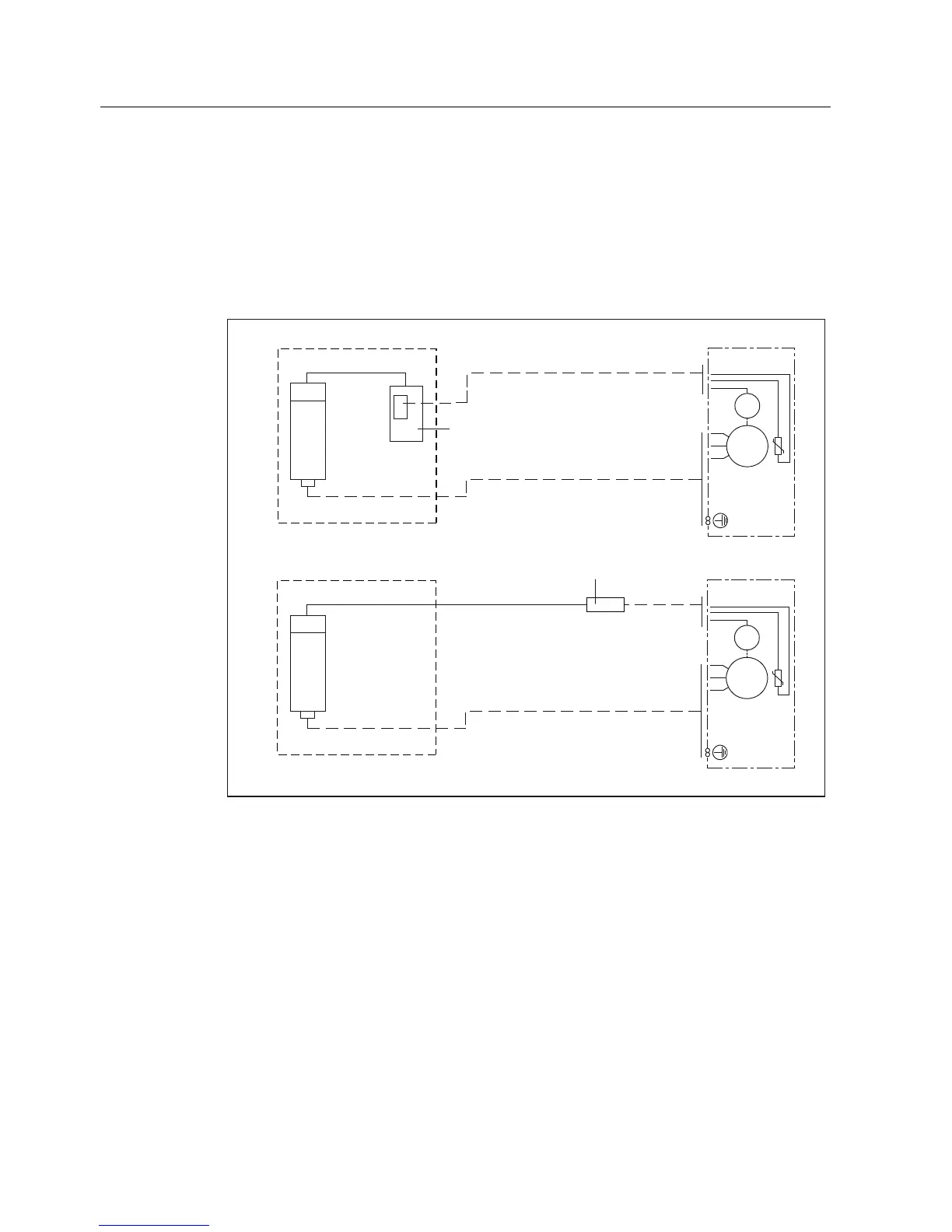

Figure 6-7 Encoder interface without DRIVE-CLiQ
6.2.7 Connecting the temperature sensor
The temperature sensor is connected to the signal connector together with the speed
encoder signal.
