Technical Specifications
10.3 Technical specifications of the IM 153-x
ET 200M
232 Operating Instructions, 04/2022, EWA-4NEB7806006-09

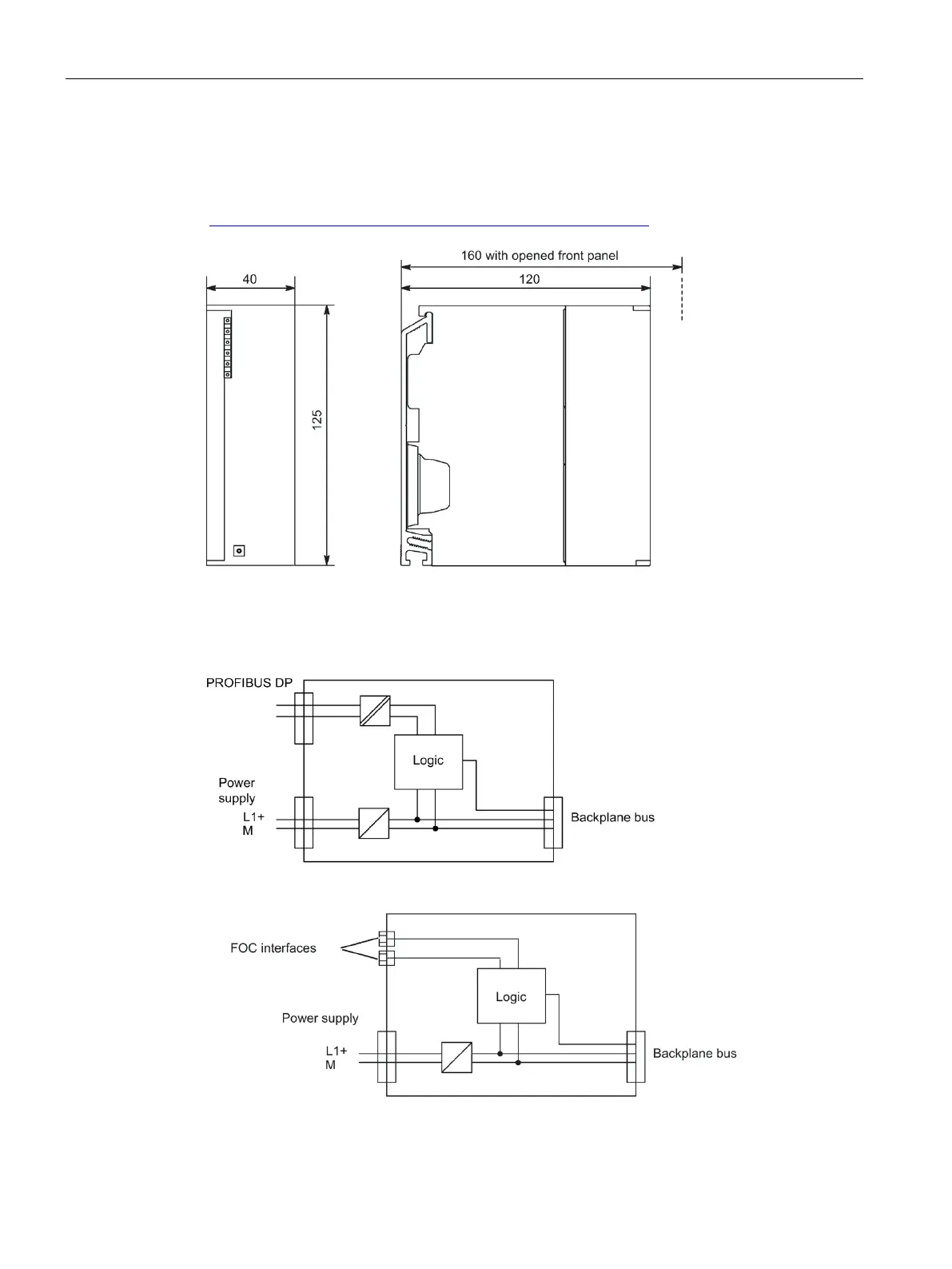

Dimensioned drawing IM 153-1 / -2 / -2 FO
You will find a dimensioned drawing with the rail for the active bus module in the reference
manual "S7-300 automation system, module specifications
(http://support.automation.siemens.com/WW/view/en/8859629)".
Figure 10-1 Dimensioned drawing of the interface modules IM 153-1, IM 153-2 and IM 153-2 FO
Block diagram IM 153-1 / -2 / -2 FO
Figure 10-2 Block diagram of the interface modules IM 153-1 and IM 153-2
Figure 10-3 Block diagram of the IM 153-2 FO
