7SR45 Description of Operation

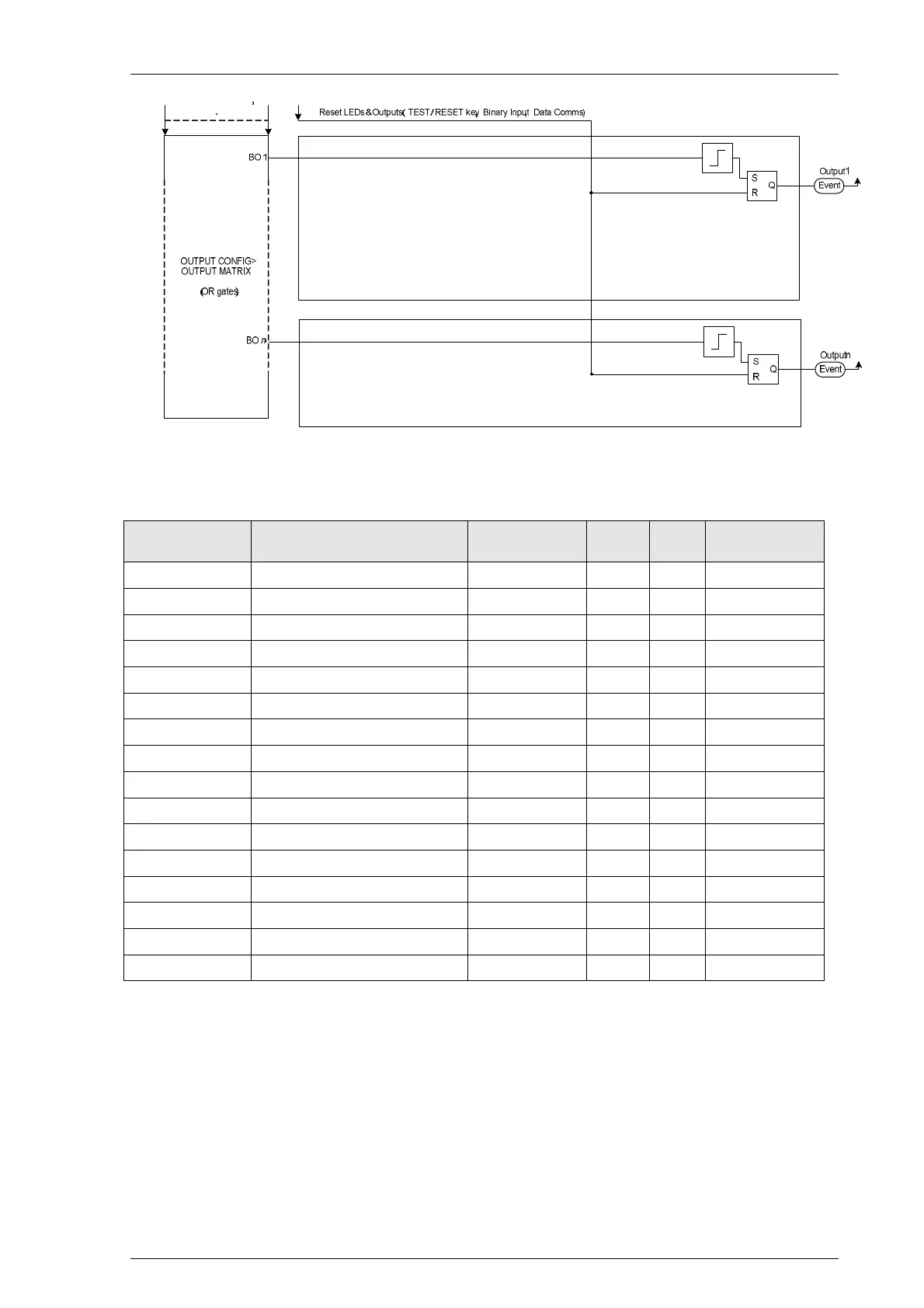

Figure 3-13 Binary Output Logic

Table 3-11 Binary Output

Parameters Description Default Value Min Max Step Change

50-1 50-1 element operate - - 1 -

50-2 50-2 element operate - - 1 -

51-1 51-1 element operate - - 1 -

50N-1 50N-1 element operate - - 1 -

50N-2 50N-2 element operate - - 1 -

51N-1 51N-1 element operate - - 1 -

50G-1 50G-1 element operate - - 1 -

50G-2 50G-2 element operate - - 1 -

51G-1 51G-1 element operate - - 1 -

50LC/SOTF 50LC/SOTF element operate - - 1 -

General Pickup Pickup detected - - 1 -

Prot'n Healthy Protection Healthy - - 1 -

Low Battery Battery Volts low indication - - 1 -

BI1 Operated BI-1 operated - - 1 -

BI2 Operated BI-2 operated - - 1 -

IRF Internal Relay Failure 1 - 1 -
