7SR45 Settings & Instruments
© 2017 Siemens Protection Devices Limited Chapter 2 Page 5 of 5

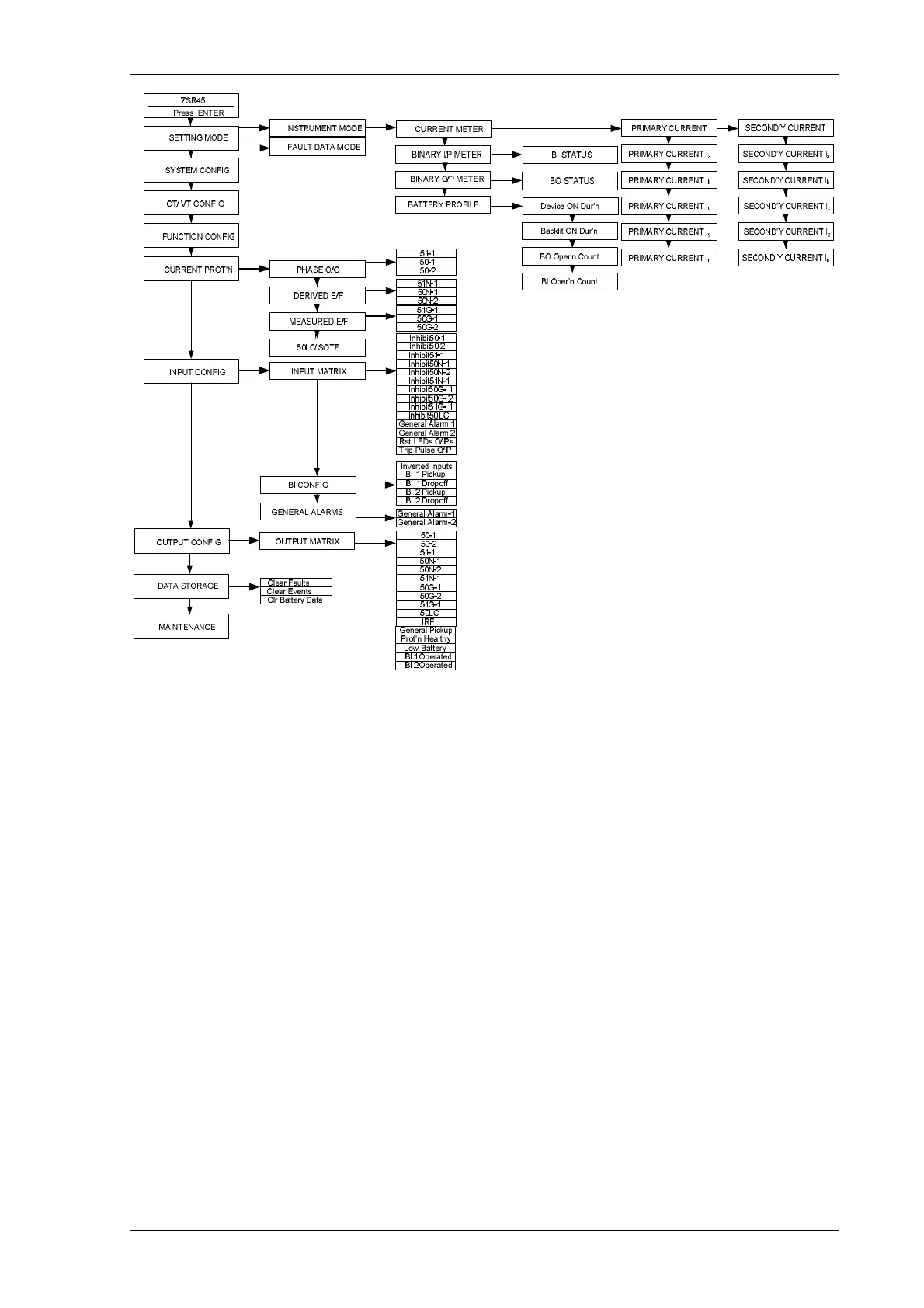

Figure 1-3 Menu Structure
1.5 Fault Data Mode
7SR45 self powered overcurrent and earth fault relay stores maximum of 10 fault records. Each stored fault data
can be viewed by pressing the TEST/RESET► key. Each record contains data of the operated elements,
analogue values, and LED status at the time of the fault. The data is viewed by scrolling down using the▼ key.
