7SR45 Settings & Instruments
© 2017 Siemens Protection Devices Limited Chapter 2 Page 3 of 5
1.1 Relay Menus
1. Setting Mode – This mode allows the user to view and change settings in the relay.
2. Instrument Mode – This mode allows the user to view the conditions of the relay i.e. Current and IO
status.
3. Fault Data Mode – This mode allows the user to view fault records.
If the password is configured, the user can only view all the menus without entering a password. Further
actions are permitted if the correct password is entered.

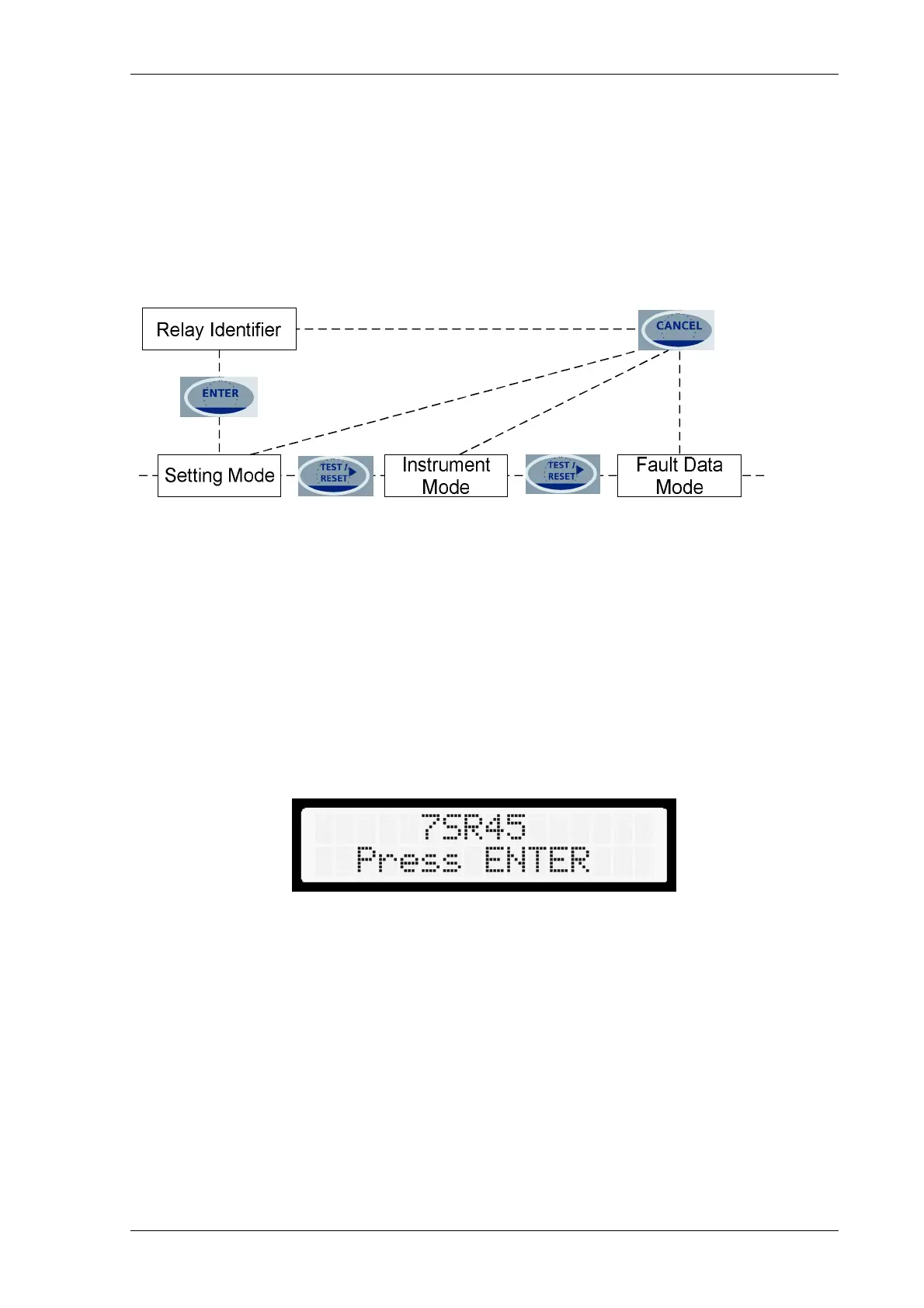

Figure 1-1 Menus
1.2 Operation Guide
1.2.1 User Interface Operation
Figures 1.3 show the basic menu structure diagram and display the main modes:
• SETTING MODE
• INSTRUMENT MODE
• FAULT DATA MODE
When the relay is shipped from the factory all stored data is cleared and the password is set to NONE.
When the relay is energized for the first time, the following message is displayed:
Figure 1-2 Relay Identifier Screen
1.3 Setting Mode
The Setting Mode is reached by pressing the READ DOWN▼ or by pressing ENTER key from the Relay Identifier
Screen.
Once the Setting Mode is reached, the user can navigate into the settings mode sub-menus.
Each sub-menu contains the configurable settings of the relay in separate groups. The sub menus are accessed
by pressing the TEST/RESET► key. Press ▲ or ▼ keys to scroll through the first and last settings. If the keys
are pressed further from the first and last settings sub menu, it exits from the sub menu and returns to the
previous menu.
Press ENTER key to edit the setting value. If the relay setting is password protected, the user is prompted to
enter the password. After entering the correct password, the user is allowed to configure the settings. If an
incorrect password is entered, editing is not permitted. The user can view and navigate to all screens without
knowing password.
