861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 101/214
Installation
➭ Grease the contact laminations ⑬ with mounting paste Vaseline 8422DAB8
(order number: 8BX2041).

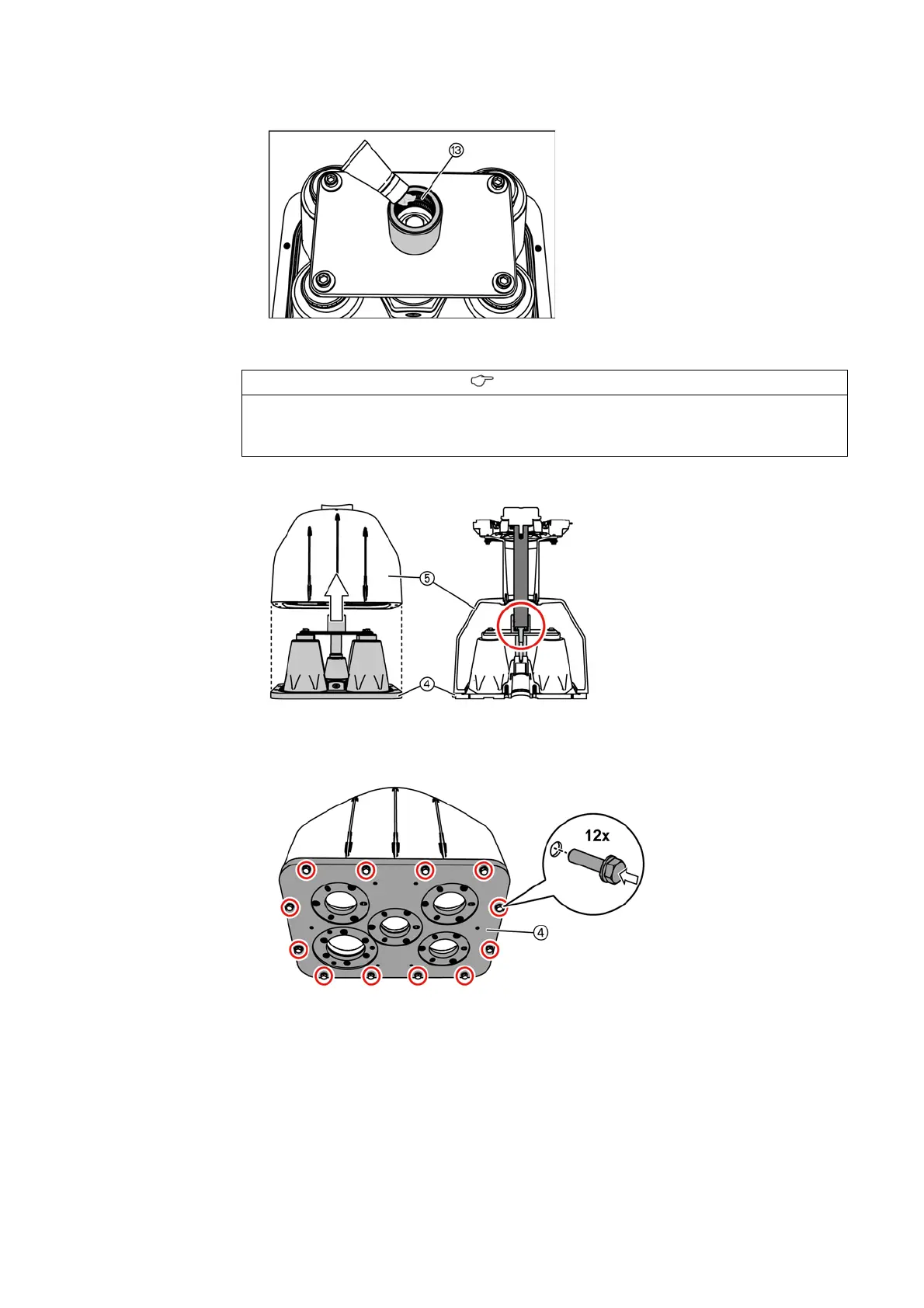

Fig. 119: Greasing the socket
➭ Push the cover of panel connection housing ④ into the panel connection housing ⑤ .
Fig. 120: Pushing in the cover of panel connection housing
➭ Fasten the cover of the panel connection housing ④ with 12 bolt-and-washer
assemblies M8x40. Tightening torque: 20 Nm.
Fig. 121: Fastening the cover with the plug sockets
➭ Repeat the above work operations for all other panel connections in the same panel.
✔ The panel connections are assembled.
INFORMATION
In other panel connection versions, the plug sockets may be arranged asymmetrically.
➭ If the plug sockets are arranged asymmetrically, observe the mounting direction of the
cover at the panel connection housing.
