Siemens 8DA10 Series - Interconnecting Panels with 5000 A Busbar (Twin Busbar); Removing Upper Row of Busbar Housings

Installation
84/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
21.7 Interconnecting panels with 5000 A busbar (twin busbar)

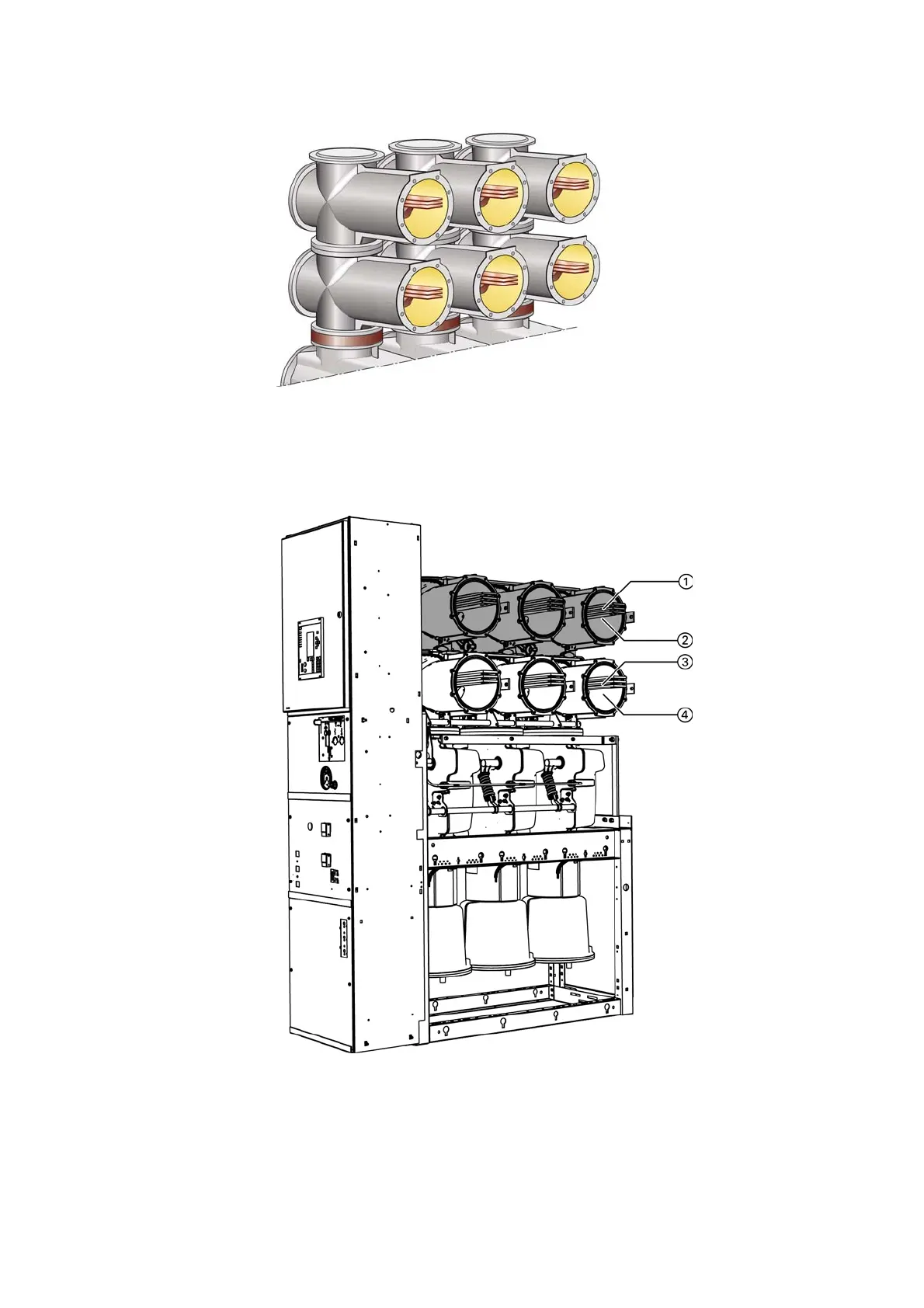

Fig. 84: Busbar version 5000 A (twin busbar)
Preparations: Removing upper row of busbar housings
The upper row of busbar housings has been pre-assembled at the factory.
To interconnect the panels, this row must first be dismantled.
Fig. 85: Overview: Twin busbar
①
Busbars (upper row)
②
Busbar housing (upper row)
③
Busbars (lower row)
④
Busbar housing (lower row)
