861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 39/214
Description
17.8 Rating plates
Switchgear panel The rating plate contains all information that is binding for the panel and its components.
The rating plate is located:
• On the inside of the low-voltage compartment door (rating plates for panel, optionally for
voltage transformers and current transformers)
If the circuit-breaker class is specified as M2, a maximum of 10000 (optionally 30000)
mechanical operating cycles are possible with the circuit-breaker.

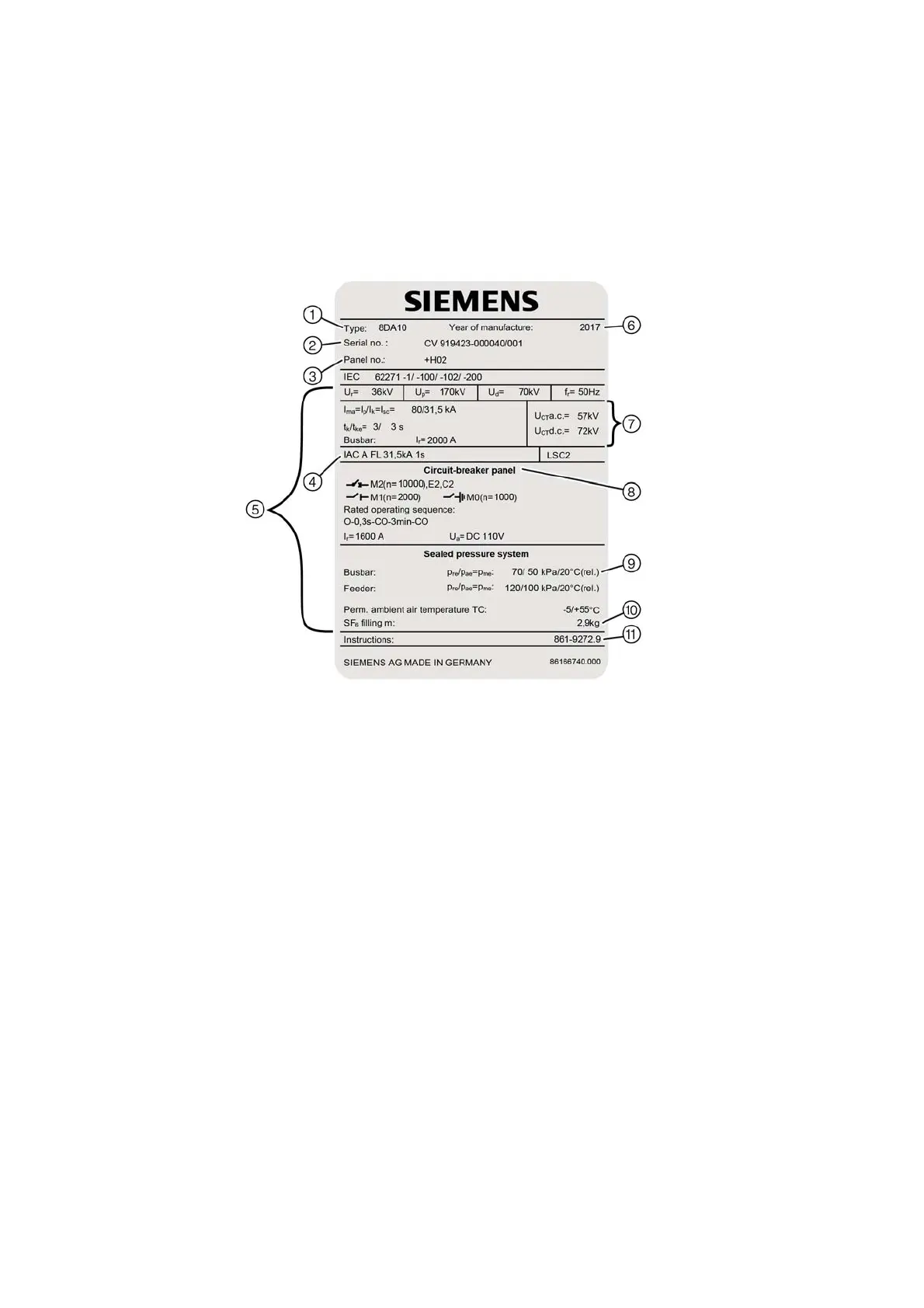

Fig. 18: Rating plate of switchgear (example)
①
Switchgear type
②
Serial number
③
Panel number
④
Internal arc classification
⑤
Technical data
⑥
Year of manufacture
⑦
Cable test voltages
⑧
Panel type
⑨
Relative filling pressures
⑩
Filling quantity of SF
6
gas
⑪
Number of operating instructions for the panel
