Operation
202/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
40.3 Function test
Cable testing with
dismantled cable

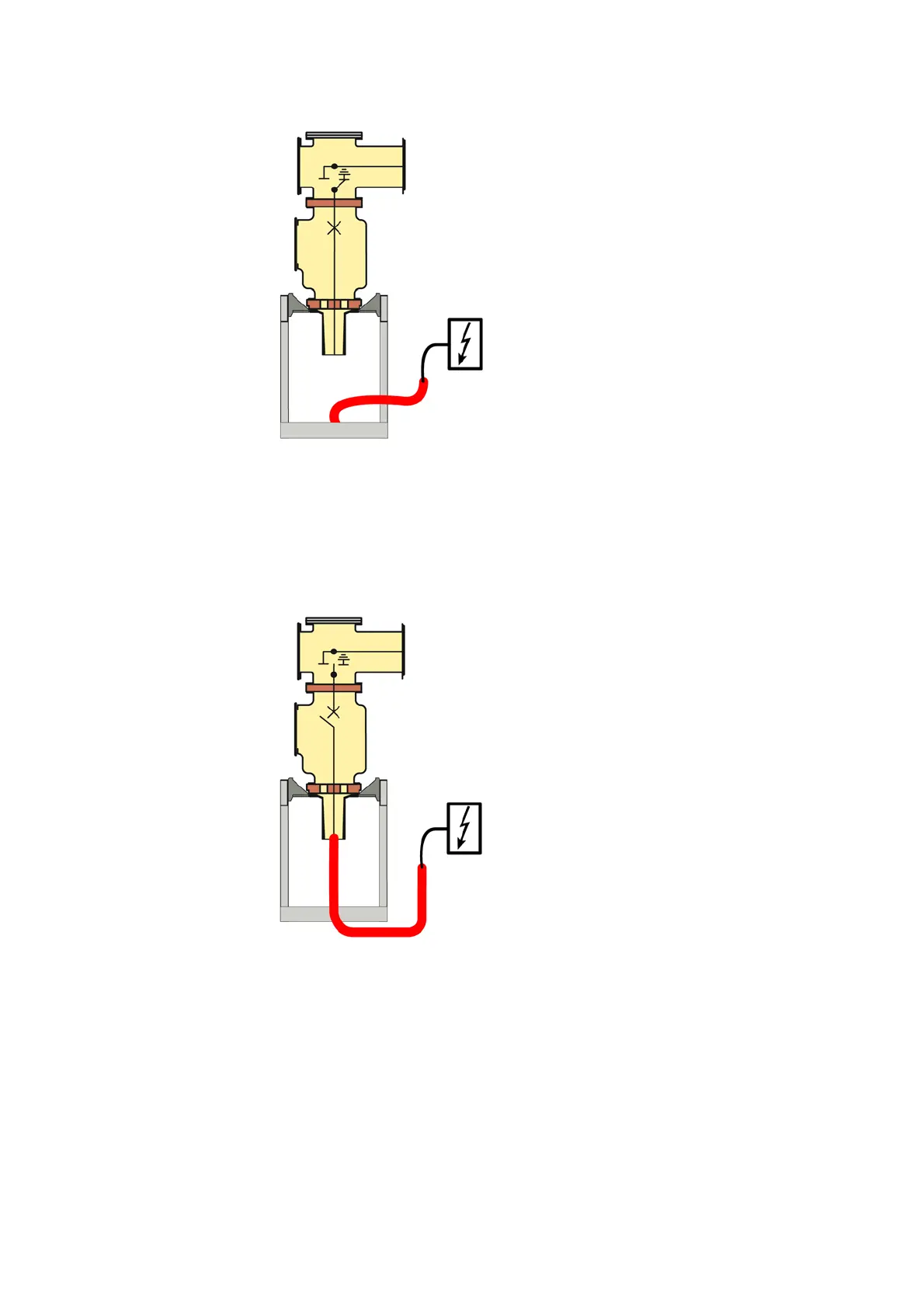

Fig. 217: Test arrangement with dismantled cable
➭ Earth the feeder (see page 161, "Earthing the feeder").
➭ Remove cable to be tested.
➭ Screw test adapter tight onto cable termination of dismantled cable.
➭ Connect test lead.
➭ Perform voltage test.
Cable testing with
connected cable
Fig. 218: Test arrangement with connected cable
➭ Earth the feeder (see page 161, "Earthing the feeder").
➭ Remove non-disconnectable voltage transformers.
➭ Short-circuit capacitive test sockets and test sockets on integrated voltage detecting systems
(e. g. CAPDIS).
➭ Open the circuit-breaker (see page 155, "Opening the circuit-breaker manually").
➭ Switch three-position disconnector to OPEN position (see page 160, "Disconnecting the
feeder from the busbar").
➭ Screw test adapter onto cable termination.
➭ Connect test lead.
➭ Perform voltage test.
➭ After voltage test, earth the feeder (see page 161, "Earthing the feeder").
