15 Aseismic design (option)
Seismic withstand
capability (option)
8DA10 switchgear can be upgraded for operation in regions at risk from earthquakes,
see the relevant order and delivery documents.
The additional components for earthquake-resistant design are pre-assembled at the factory.
The earthquake-resistant design is bolted to the foundation rails at all 4 points on site,
using a floor fixing profile.

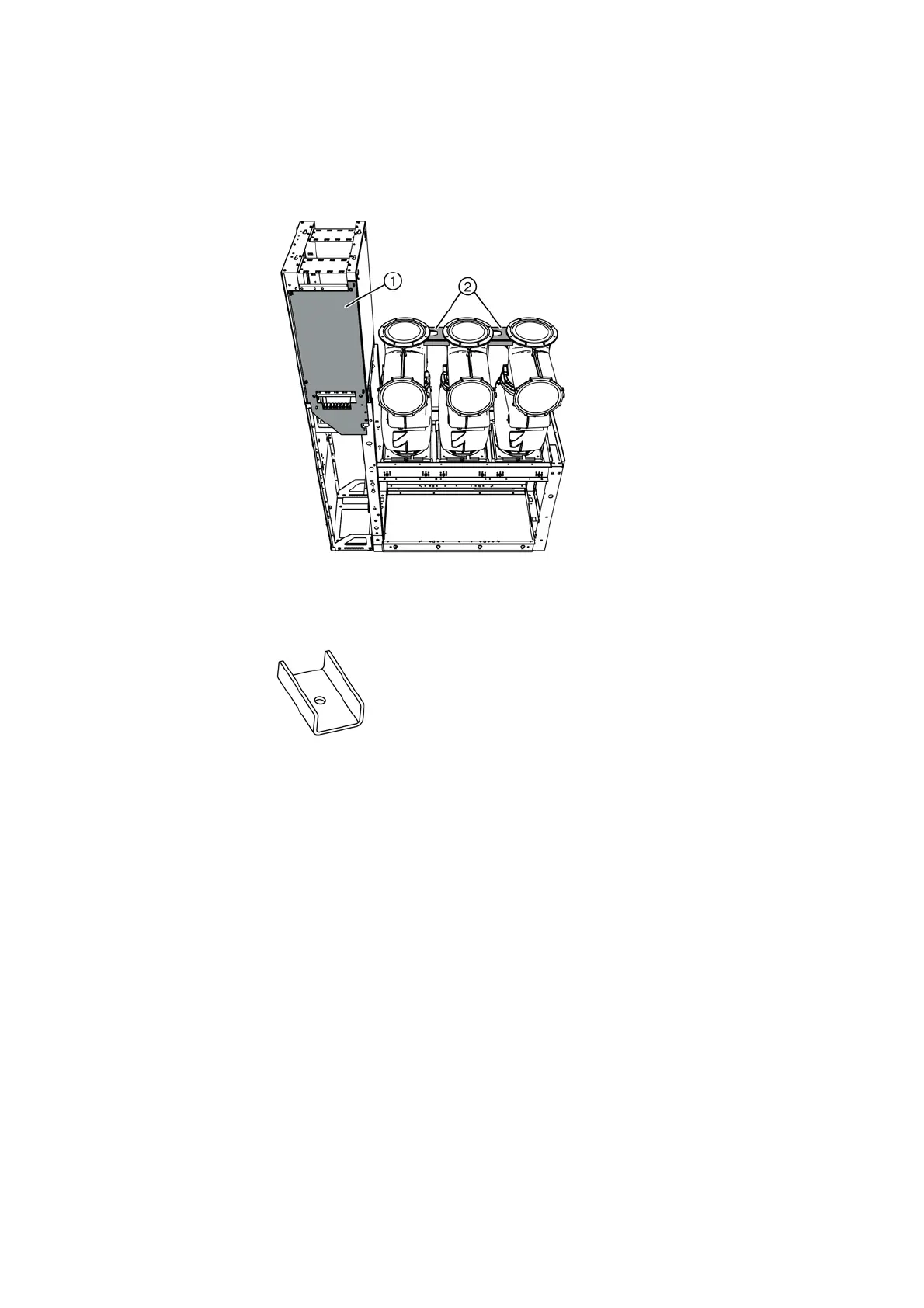

Fig. 14: Floor fixing profile
Fig. 13: Earthquake-resistant panel design
①
Reinforced side plate
②
Additional fixing elements between
the switchpanel poles
