Operation
164/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
37.2 Switching operations in the bus sectionalizer panel

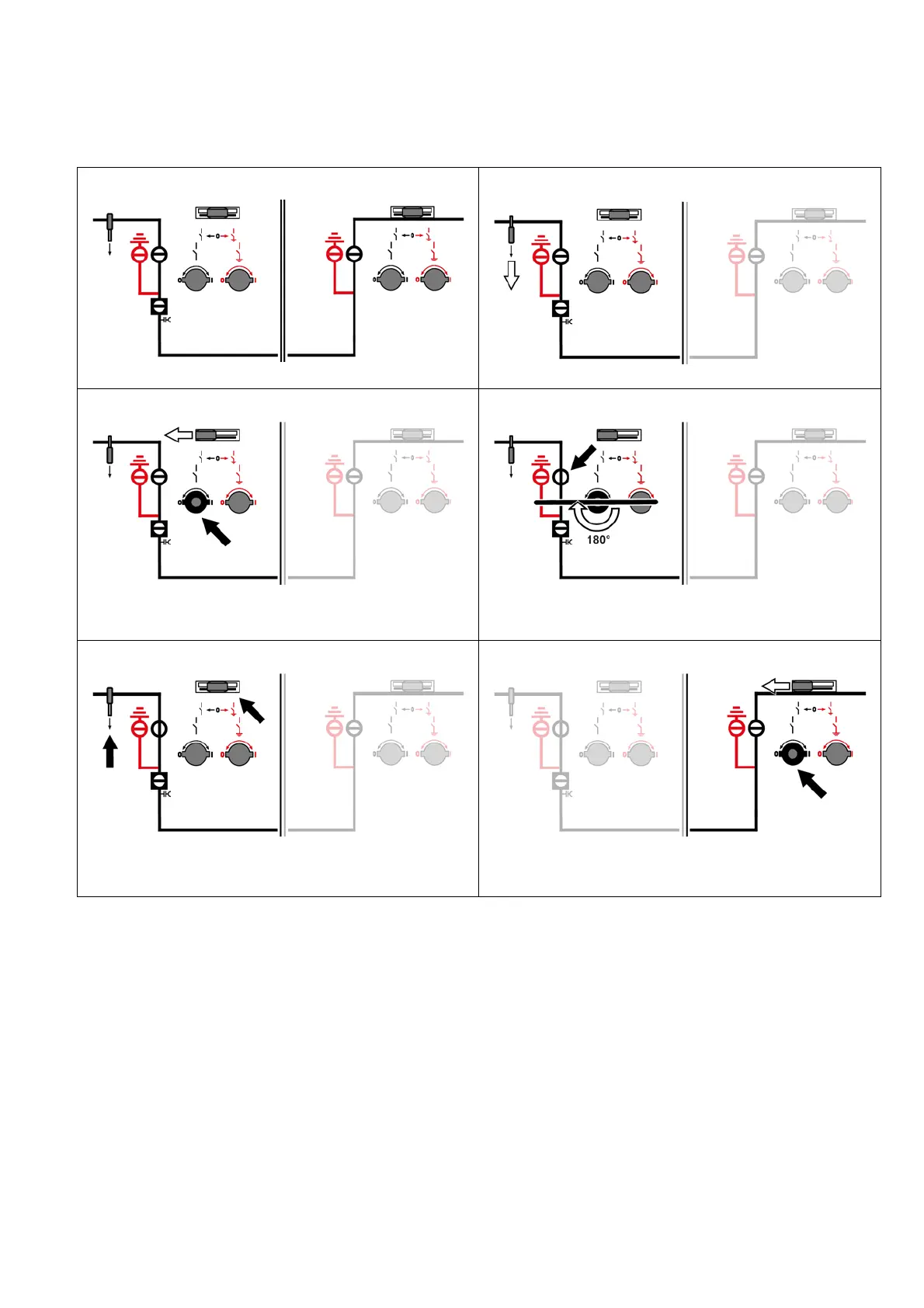

Coupling busbar sections
1
Initial situation
2
➭ Push the interrogation lever downwards.
3
➭ Push the left-hand control gate to the left.
4
➭ Switch the left-hand three-position disconnector to CLOSED position
(insert the operating lever for the DISCONNECTING function and turn
180° clockwise).
5
➭ Remove the operating lever for the DISCONNECTING function.
The interrogation lever and the left-hand control gate return to their initial
position.
6
➭ Push the right-hand control gate to the left.
