861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 165/214

Operation

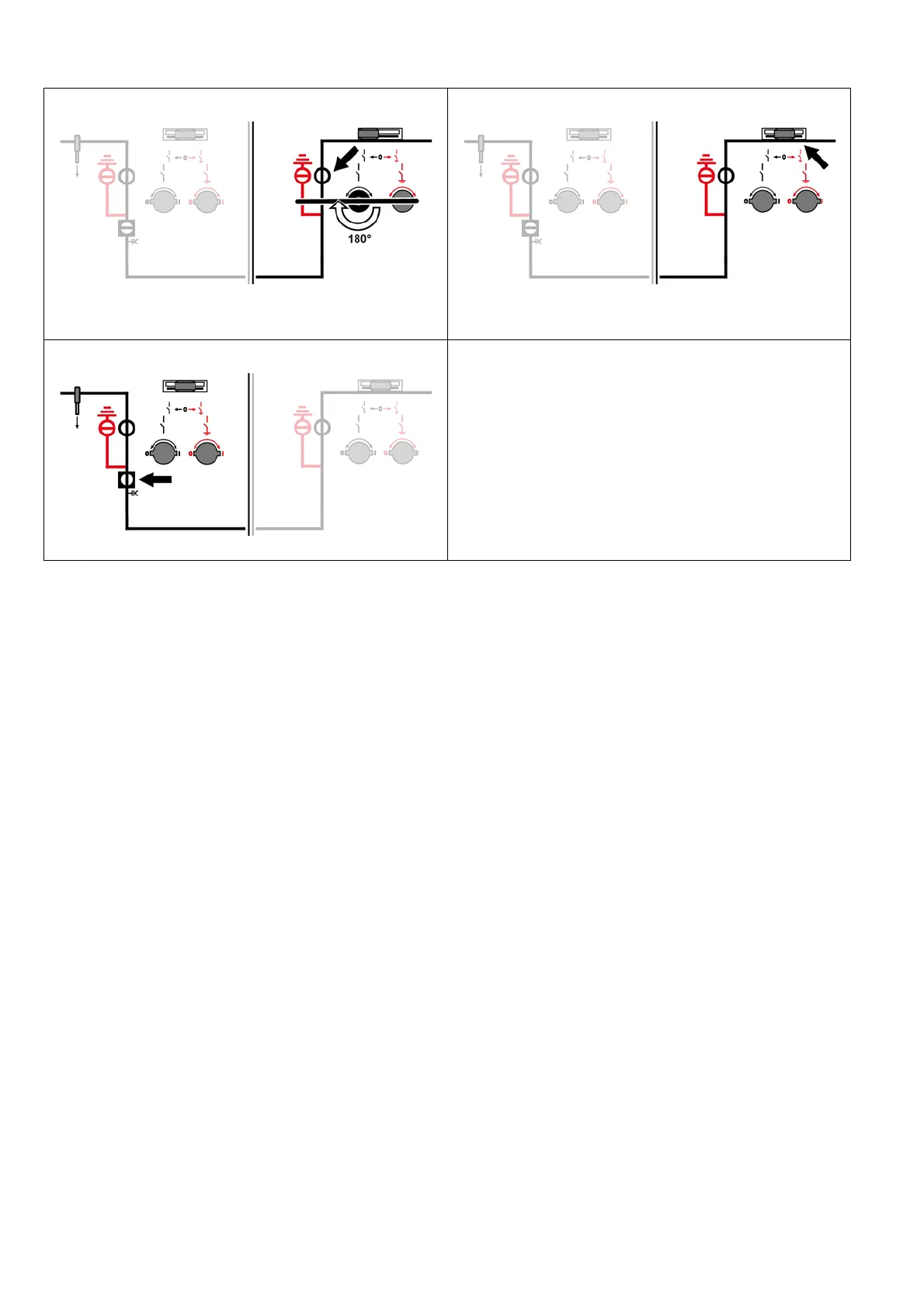

➭ Switch the right-hand three-position disconnector to CLOSED position

(insert the operating lever for the DISCONNECTING function and turn

180° clockwise).

➭ Remove the operating lever for the DISCONNECTING function.

The right-hand control gate returns to its initial position.

➭ Close the circuit-breaker.
