Installation

142/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

32 Installation of end walls

As-delivered condition of panel:

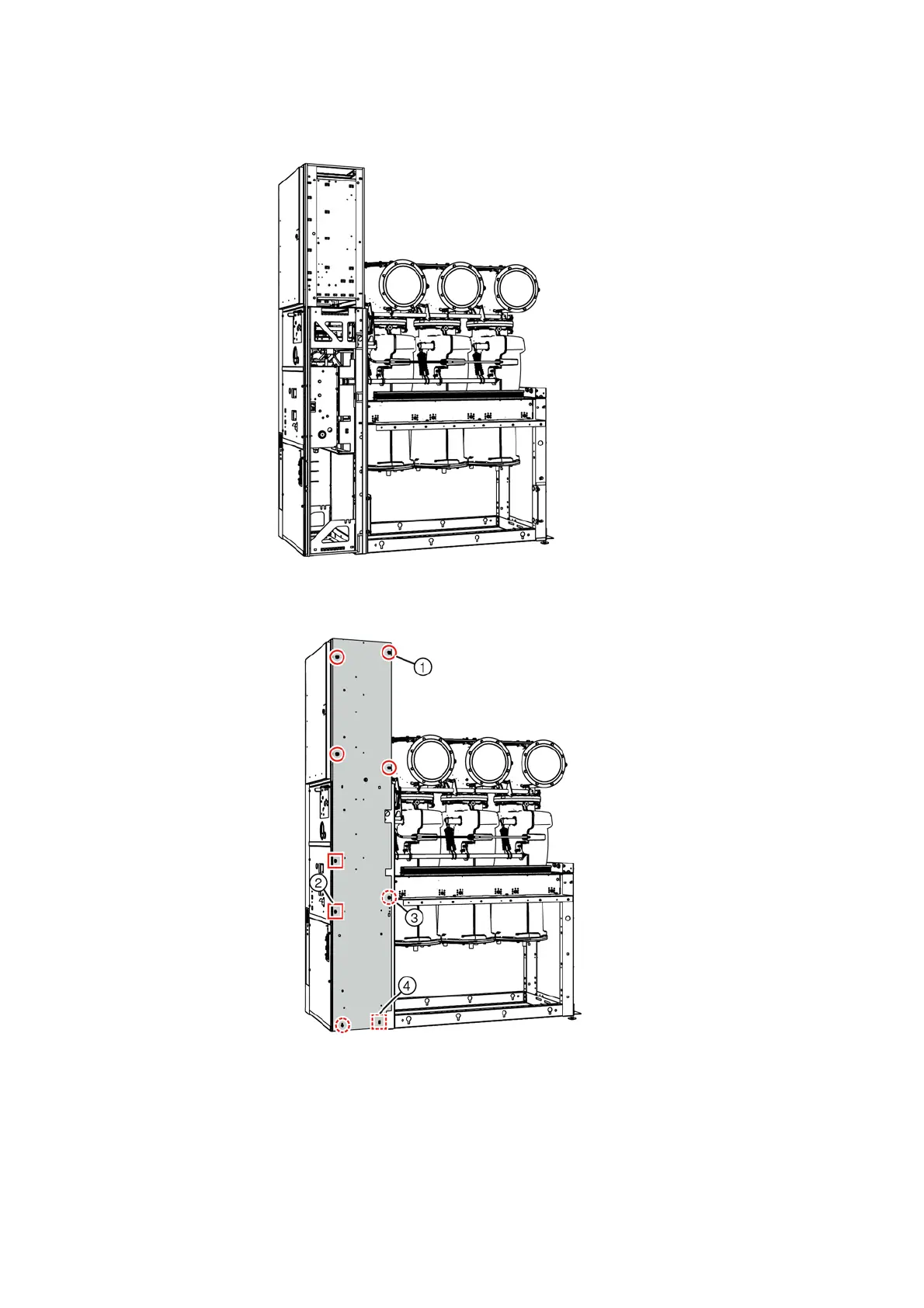

Fig. 169: As-delivered condition

➭ Screw termination plate on loosely using bolts and contact washers (do not tighten yet).

Fig. 170: Fixing points for the termination plate

①

Hexagon head bolt M8x25

with cage nut (4x)

②

Bolt M6x20 (2x)

③

Bolt M8x25 (2x)

④

Use bolt M8x25 only for

a frame height 1020 mm
