Installation
112/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

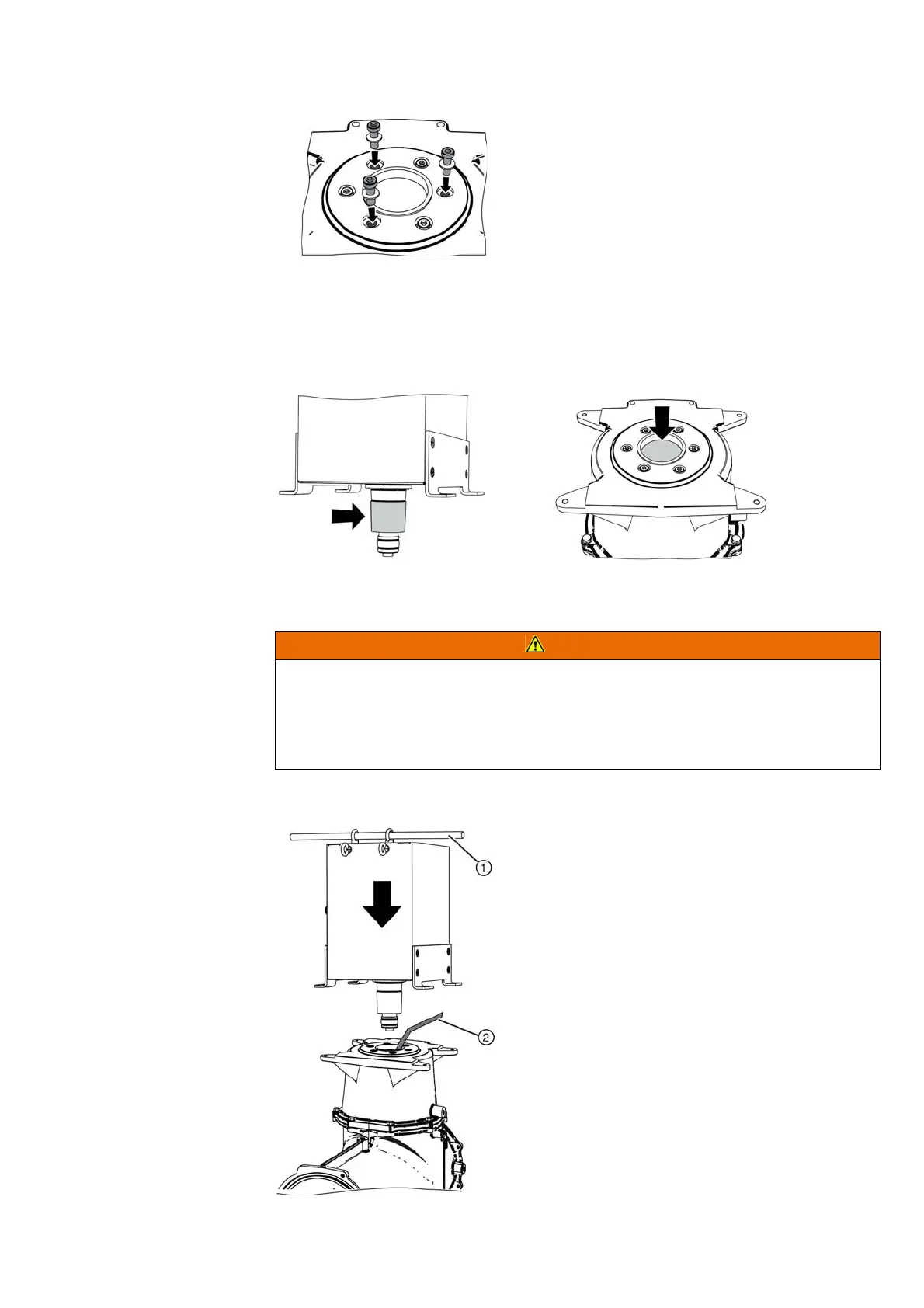

Insert one hexagon socket head bolt M8x25 (with pan head) each into the now free holes.
Fig. 126: Inserting hexagon socket head bolts
Clean the silicone adapter and the inside-cone cast-resin bush carefully. Use a cleaning
agent without solvents and a lint-free cloth.
Grease the silicone adapter and the inside-cone cast-resin bush uniformly with mounting
paste for cables sets.
Lower the voltage transformer slowly onto the busbar housing.
Fig. 127: Greasing and cleaning
the silicone adapter
Fig. 128: Greasing and cleaning
the inside-cone cast-resin bush
WARNING
Risk of injury while transporting the voltage transformer
The voltage transformer may fall down during transport. Serious injury and property
damage can be the consequence.
Secure the voltage transformer against falling down. If required, use a support.
If necessary, transport the voltage transformer with several persons or with suitable aids.
Fig. 129: Setting down the voltage transformer
Lifting gear
Cable strap
