Installation
114/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
For first installation of the voltage transformer, mount the threaded rods M10 with low-
design nuts (flat nuts) according to DIN 4035 on the panel connection cover (installation
instruction enclosed with the supplementary equipment).
For first installation: Remove protective cap.
If available: Remove the surge-proof dummy plug from the inside-cone bushing.
To do this, undo the 3 bolts M8.

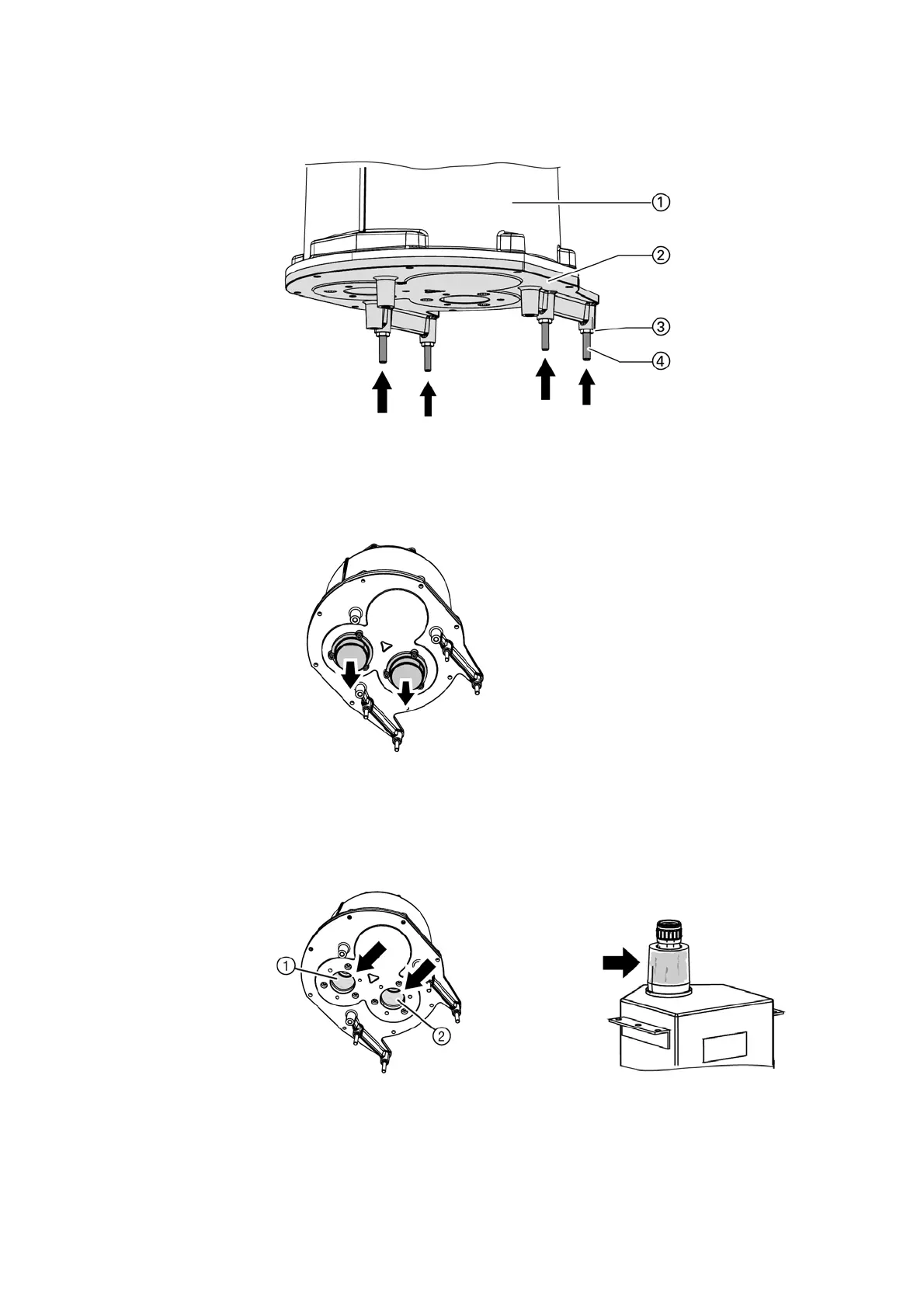

Fig. 133: Removing surge-proof dummy plugs
Clean the silicone adapter and the inside-cone cast-resin bush carefully. Use a cleaning
agent without solvents and a lint-free cloth.
Grease the silicone adapter and the inside-cone cast-resin bush uniformly with mounting
paste for cables sets.
Fig. 132: Mounting the threaded rods
Panel connection housing
Panel connection cover
M10 nuts acc. to DIN 4035
Threaded rods M10
Note: Nuts
and threaded
rods
are included in the
supplementary equipment
Fig. 134: Greasing
the silicone adapter
Fig. 135: Greasing
the inside-cone cast-resin bush
Inside-cone bushing for plug-in cable connection
Inside-cone bushing for primary terminal of transformer
