Installation
138/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
➭ Next to an end panel with make-proof busbar earthing switch, mount a protection plate on
the switchgear termination. Tightening torque: 12 Nm.
➭ Mount the protection plate on the roof plate of the busbar earthing switch.
Tightening torque: 12 Nm.

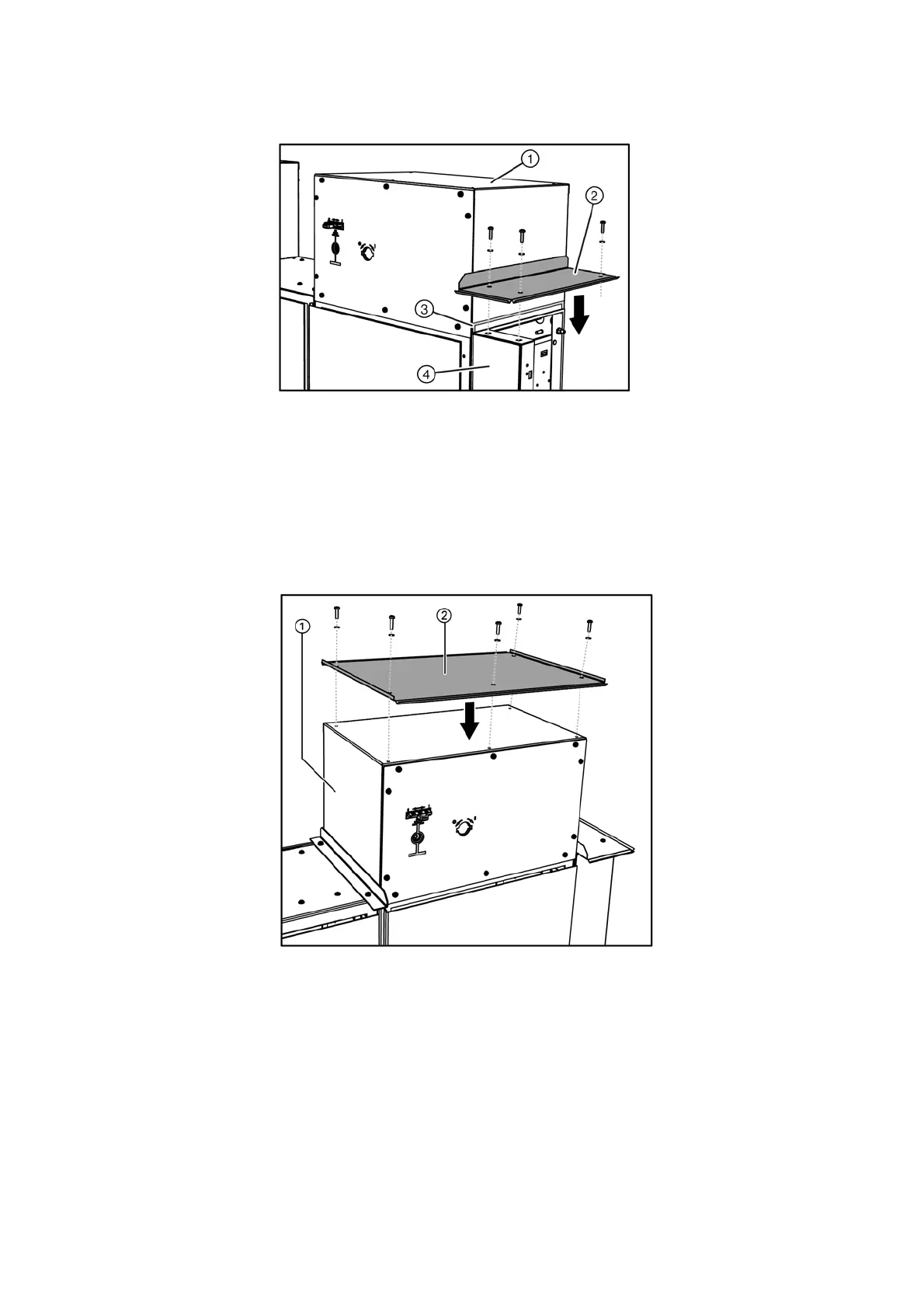

Fig. 162: Example: Fastening a protection plate for end panels with
make-proof earthing switch (basic scheme)
①
Busbar earthing switch
②
Protection plate for right end panels with make-proof earthing switch (3x bolts M6x25)
③
Sealing strap
④
Switchgear termination (only partly shown here)
Fig. 163: Example: Mounting the protection plate on the roof plate of
the busbar earthing switch (basic scheme)
①
Busbar earthing switch
②
Protection plate (5 bolts M6x25)
