14/214 Revision 11 INSTALLATION AND OPERATING INSTRUCTIONS 8DA10 861-9601.9

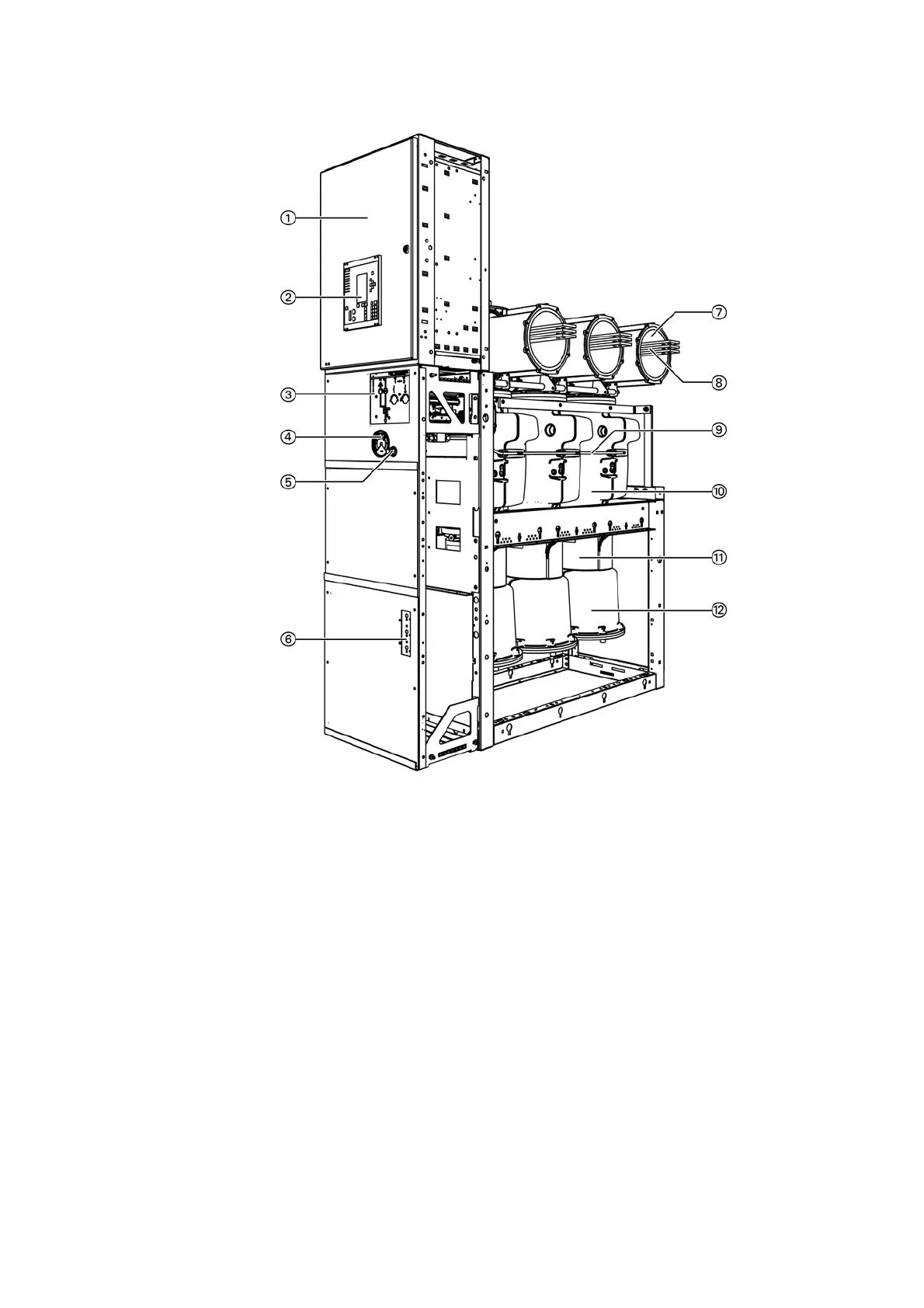

Three-position disconnector panel up to 3150 A
Low-voltage compartment
SIPROTEC bay controller (option)
Operating mechanism of three-position disconnector
Gas pressure manometer for switchpanel pole housing
Gas filling valve
Capacitive voltage detecting system
Busbar housing
Busbars
Gas pipe
Switchpanel pole housing with vacuum interrupter
4MC4 current transformer
Panel connection housing with inside-cone bushings for cable plugs,
voltage transformers and surge arresters, or for connection of bar systems
