Operation

184/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

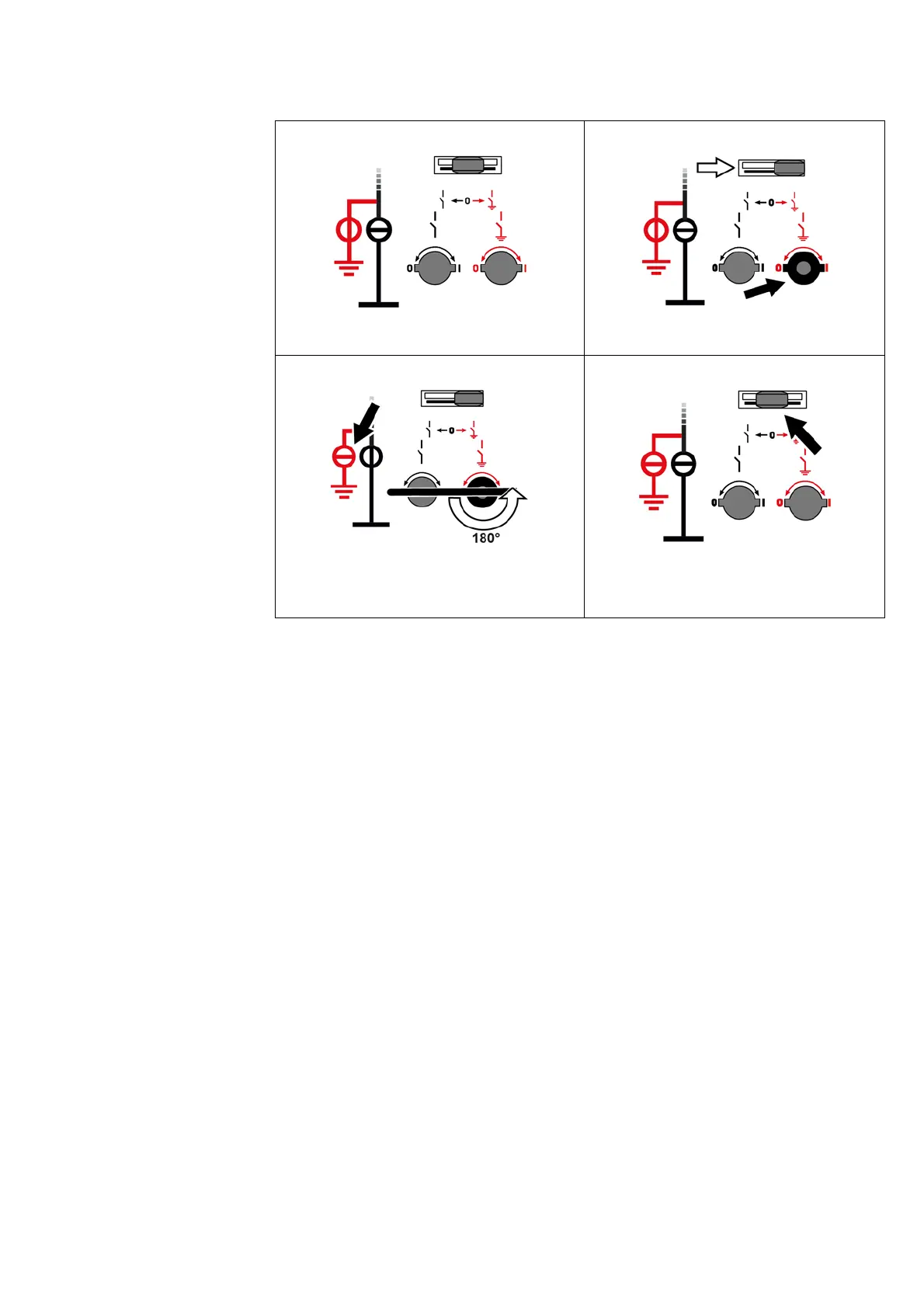

De-earthing the voltage transformers

Initial situation

➭ Push the control gate to the right.

➭ Switch the three-position disconnector from

EARTHED to OPEN position (insert the operating

lever for the READY-TO-EARTH function and turn

180° counter-clockwise).

➭ Remove the operating lever for the READY-TO-

EARTH function.

The control gate returns to its initial position.
