Operation
188/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

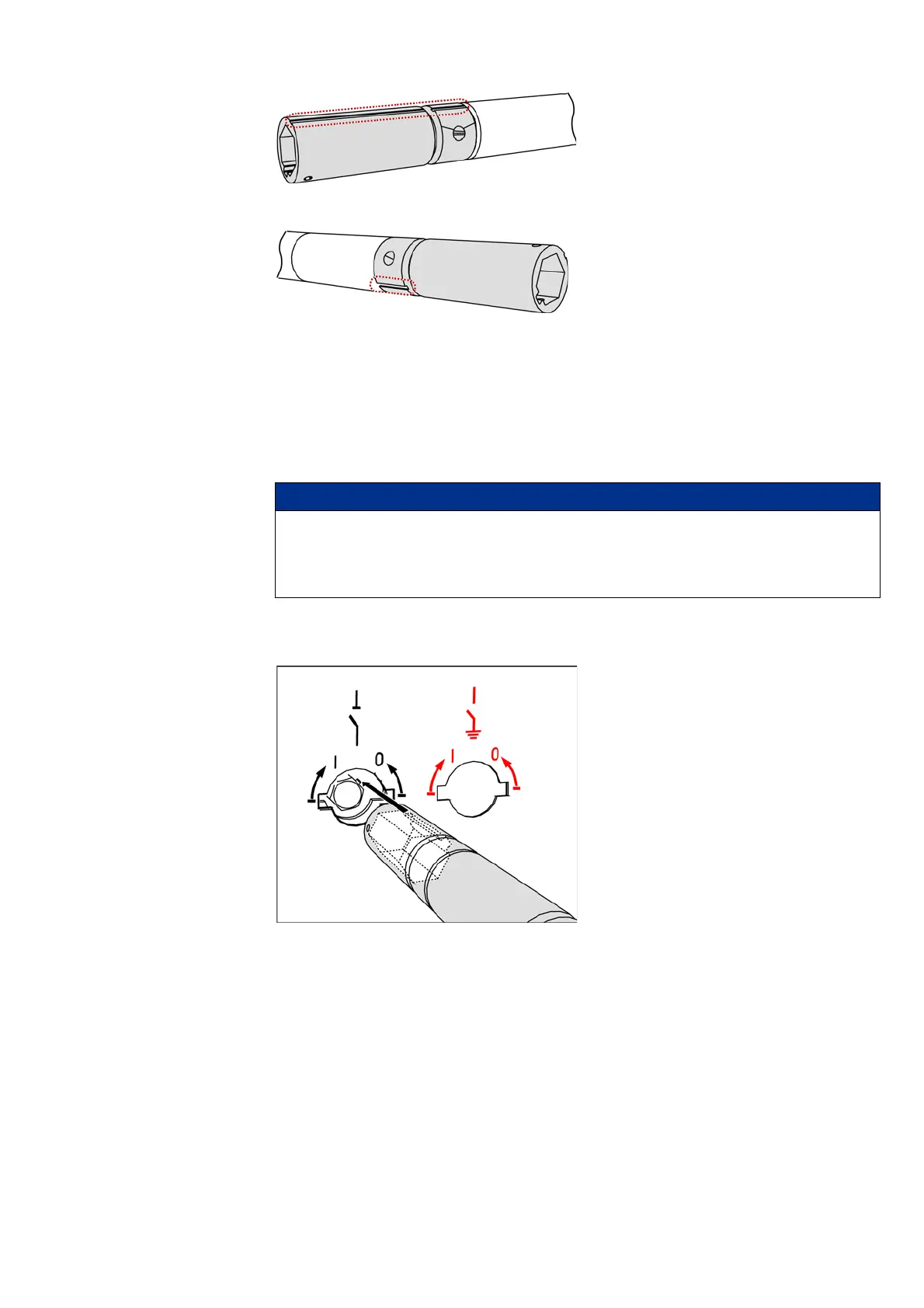

Fig. 197: Marking (long slot) on operating lever with pushed-on adapter
Fig. 198: Marking (short slot) on operating lever with pushed-on adapter
The noses of the operating lever are not significant for evaluating the position of the
operating mechanism.
End positions of the three-position switch while switching with the operating lever
with pushed-on adapter
Insert the operating lever with pushed-on adapter in such a way that the inner slot of the
adapter fits on the pin of the operating shaft.
Fig. 199: Inserting the operating lever with pushed-on adapter
NOTICE
The operating lever does not have a stop.
Switching beyond the end position of the three-position switch will damage the three-
position switch if the adapter is pushed on.
➭ Observe the markings on the adapter of the operating lever.
