Servicing
206/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
➭ Renew the anti-corrosion protection greasing.
➭ Operate the circuit-breaker several times mechanically by hand for test.

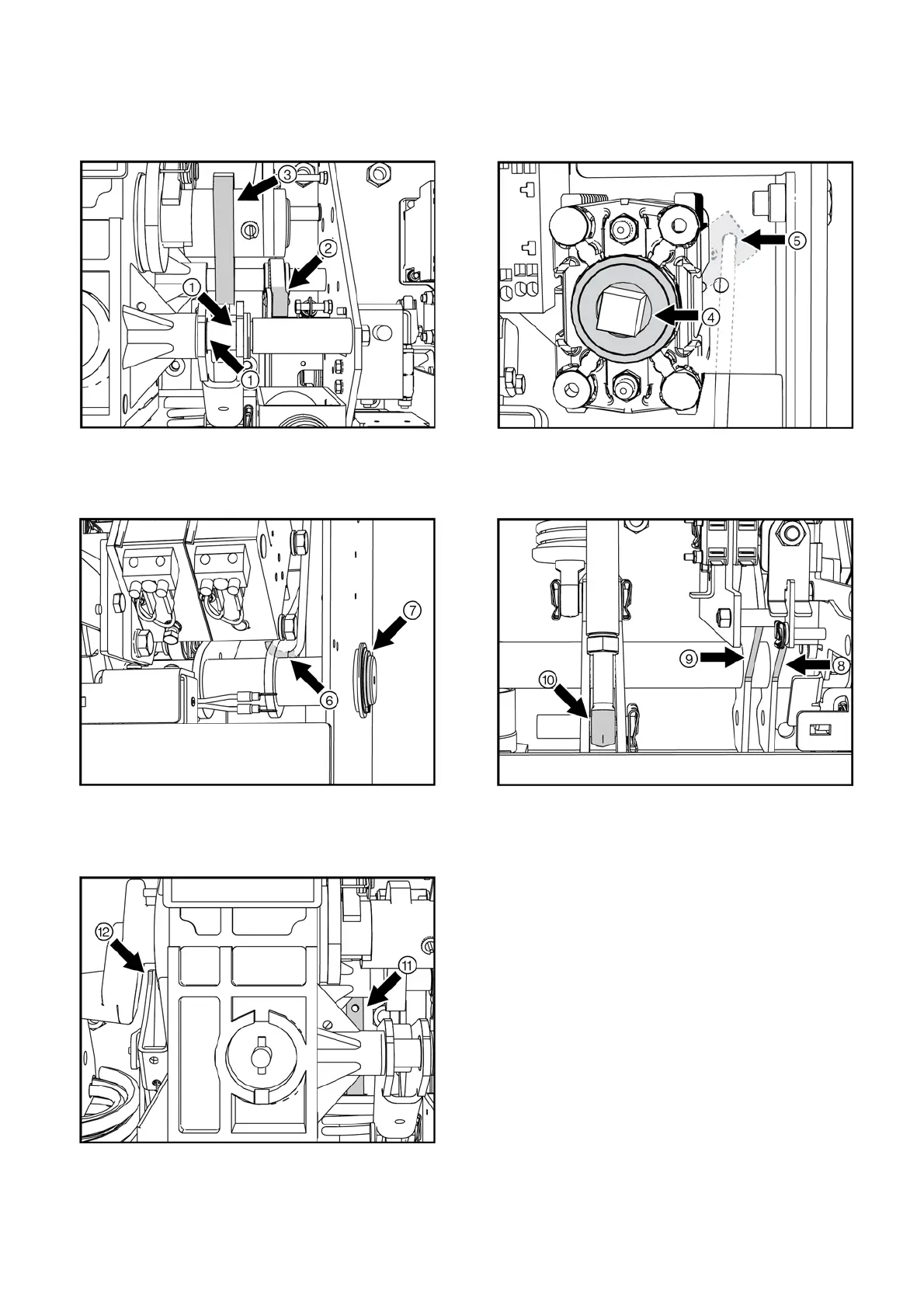

①
Bearing for deflection lever (Shell Tellus Oil 32)
④
Deflection of auxiliary switch (Isoflex Topas L 32)
②
Curve contour (Isoflex Topas L 32)
⑤
Auxiliary switch (Shell Tellus Oil 32)
③
Closing latch (Isoflex Topas L 32)
⑥
Deflection of auxiliary switch (Isoflex Topas L 32)
⑧
Opening latch (Isoflex Topas L 32)
⑦
Bearing of operating shaft (Shell Tellus Oil 32)
⑨
Curve for opening latch (Isoflex Topas L 32)
⑩
Stop (Isoflex Topas L 32)
⑪
Guide of opening spring (Isoflex Topas L 32)
⑫
Crank pin for pushbutton operation (Isoflex Topas L 32)
