Installation
44/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
Welded joint of the
standard design
Weld the standard design diagonally to the foundation rails at 2 points. A floor fixing profile is
not necessary.
The welded seams must conform to the strength of an equivalent bolted joint with M10 bolts.
Welded joint of the
aseismic design
Weld the aseismic design to the foundation rails at all 4 points. A floor fixing profile is not
necessary.
The welded seams must conform to the strength of an equivalent bolted joint with M10 bolts.
Stipulations for the
foundation
Observe the following items when preparing the foundation:
• Dimensions of the floor opening and fixing points of the switchgear frame
(see page 43, "Constructional data of the foundation").
• Align the base frame of the switchgear starting from a fixed point.
• Determine level differences between the installation surfaces of the panels using
a measuring sheet, and compensate with shims (0.5 - 1.0 mm).
Stipulations for evenness
and straightness
Evenness/straightness tolerance according to DIN 43661: 1 mm for 1 m length, 2 mm over
the width of the complete switchgear.

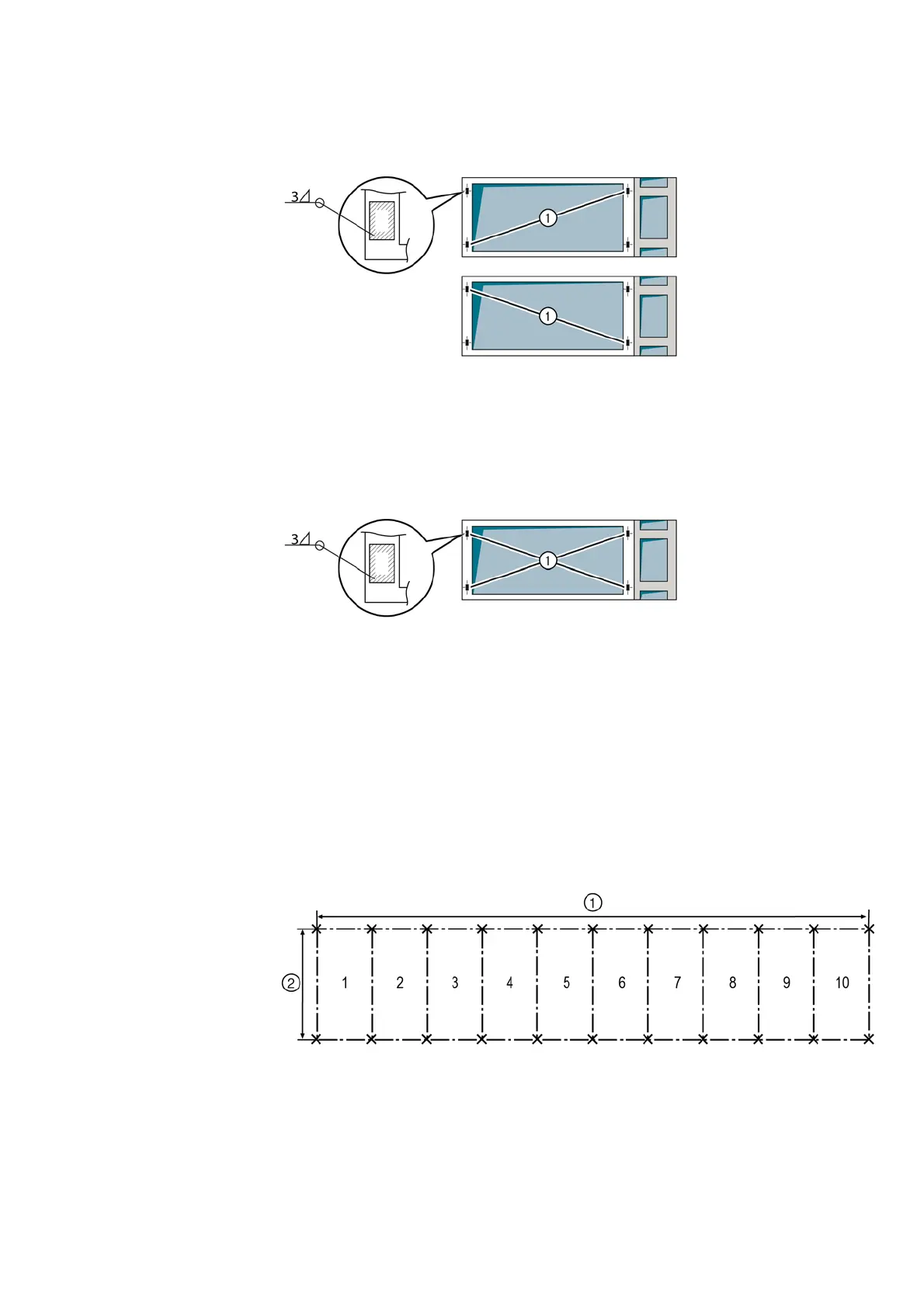

Fig. 26: Welding seams of the standard version
①
Fixing points (26x45 mm)
Fig. 27: Welding seams of the aseismic design
①
Fixing points (26x45 mm)
Fig. 28: Measuring sheet for the foundation
①
Width of complete switchgear
②
1625 mm
