Installation
54/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
Lifting unpacked
transport unit with
transport pallet
➭ Knock the boards marked at the front out of the transport pallet by means of the fork-lift
truck.
➭ Lift the transport unit with a crane, hydraulic jacks or a fork-lift truck.
Removing the transport
unit from the transport
pallet
Remove the transport unit from the transport pallet only if
• there are only short transportation ways left, or
• the transport unit can be directly set down at the place of use.
The transport unit is screwed onto the transport pallet. The fixing points for transport are
located behind the front metal cover in the frame, at the rear cross member and at the lateral
parts of the frame.
➭ Remove front cover sheets from the subframe of the panel.
➭ Remove all fixing bolts that connect the transport unit with the transport pallet.
Lifting unpacked
transport unit with
transport pallet
To lift the switchgear, use two lifting rods with a diameter of 30 mm.
Minimum length of the lifting rods: Width of transport unit plus 400 mm.
Certified lifting rods for different panel widths are available at the regional Siemens
representative.

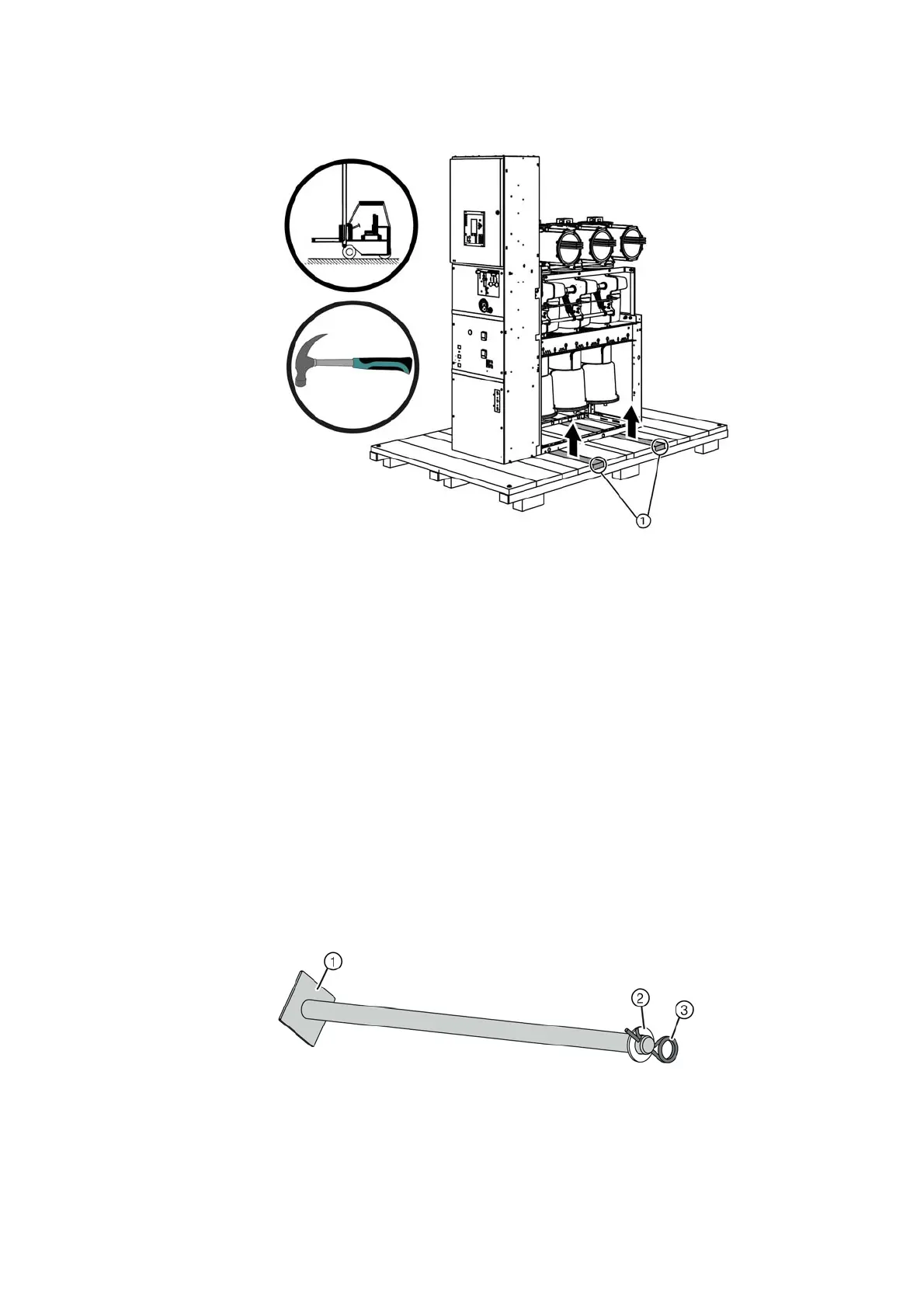

Fig. 31: Example for lifting the transport unit with the fork-lift truck on an individual
panel
①
Boards marked at the front
Fig. 32: Certified lifting rod for panels of 8DA10
①
Lifting rod with termination plate
②
Lock washer
③
Retaining element
