Installation

78/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

➭ Mount the cable plugs.

➭ Fasten the cables at the cable bracket using cable clamps.

➭ Earth the C-rail at the nearest earthing point using the supplied PE conductor.

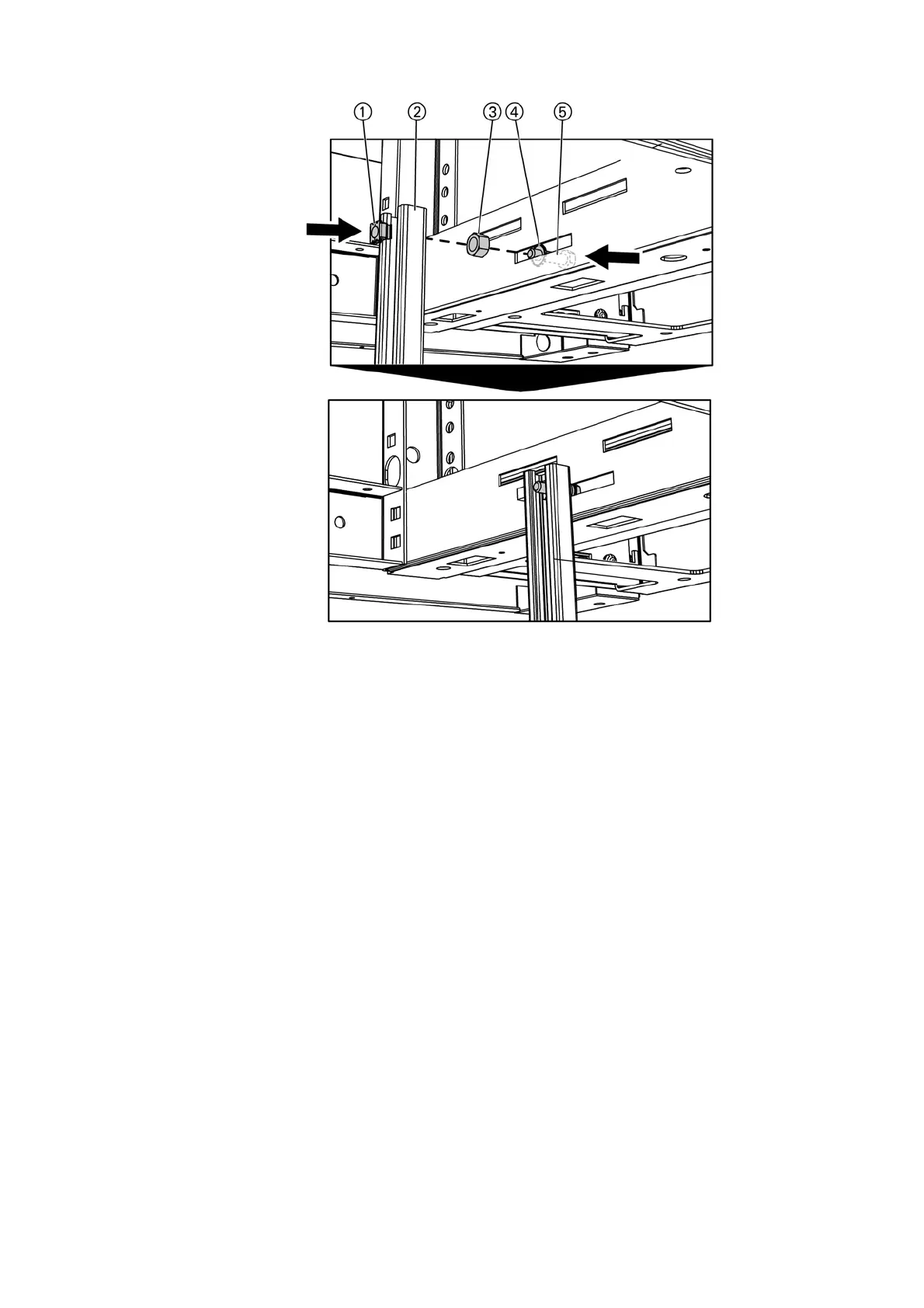

Fig. 72: Mounting the cable bracket at the cross members

①

Cage nut

④

Contact washer

②

Cable bracket

⑤

Hexagon head bolt M10x40

③

Hexagon nut M12 (used as spacer)
