Siemens ARCADIS Orbic Installation And Startup

14 Actions
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 14 of 46
Medical Solutions
Centering disk, item no. 71 40 580 0

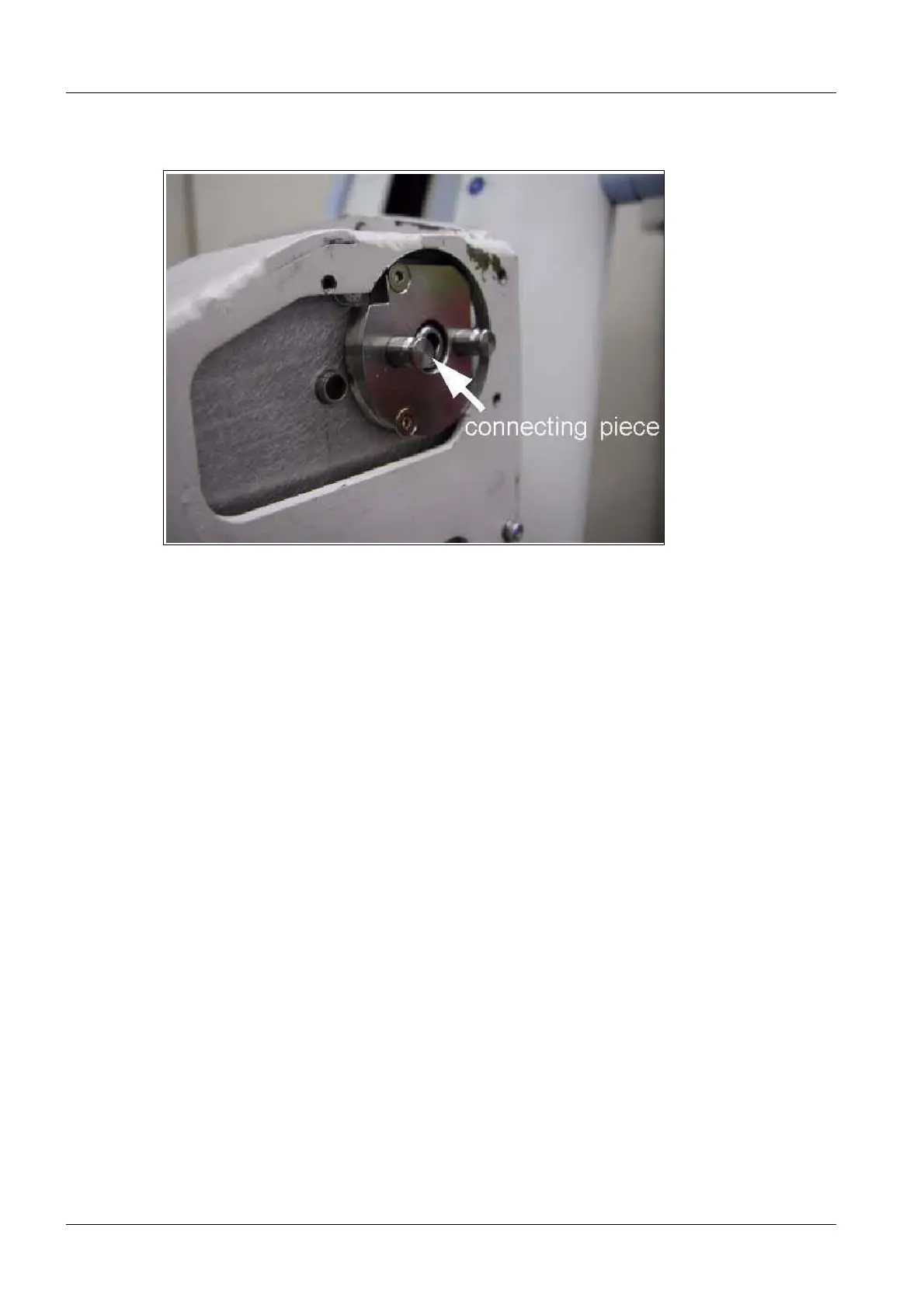

Fig. 2: Centering disk
• Remove the countersunk screws prior to mounting the centering disk.
• Attach the centering disk at the cable module (see (Fig.2/p.14)).
