Siemens ARCADIS Orbic Installation And Startup

22 3D Reconstruction Upgrade Part 1
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 22 of 46
Medical Solutions
Installing the system electronics for 3D reconstruction 71 39 9210

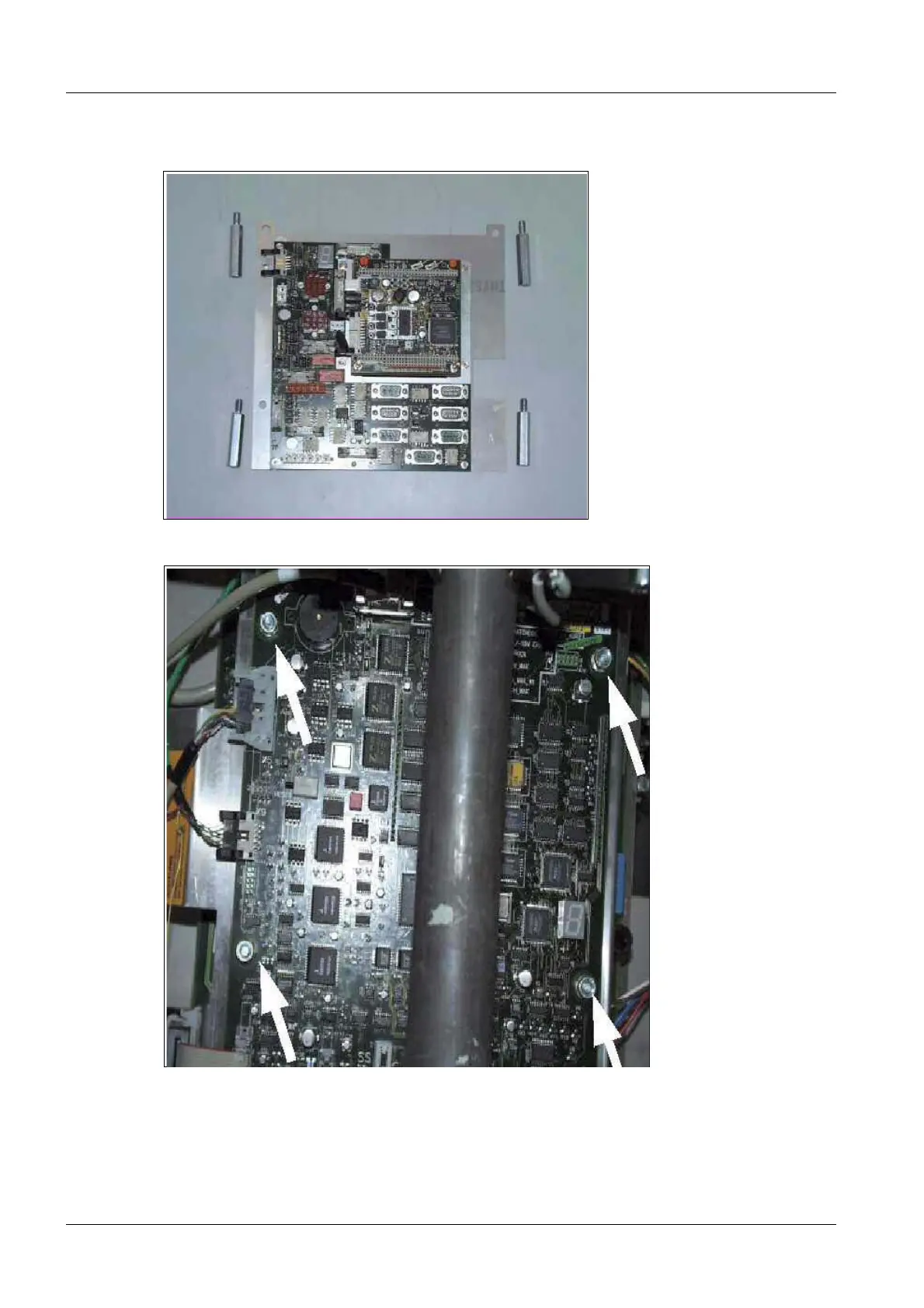

Fig. 13: 3D reconstruction system electronics D200
Fig. 14: D1
• Move the lifting column into the top position.
• Remove the 4 upper mounting screws of D1, leave the washers on D1 (Fig. 14 / p. 22).
