Siemens ARCADIS Orbic - Coupling Unit

Siemens AG SPR2-320.814.02.01.02 ARCADIS Orbic
01.05 CS SD 24
3D Reconstruction Upgrade Part 2 33
Page 33 of 46
Medical Solutions

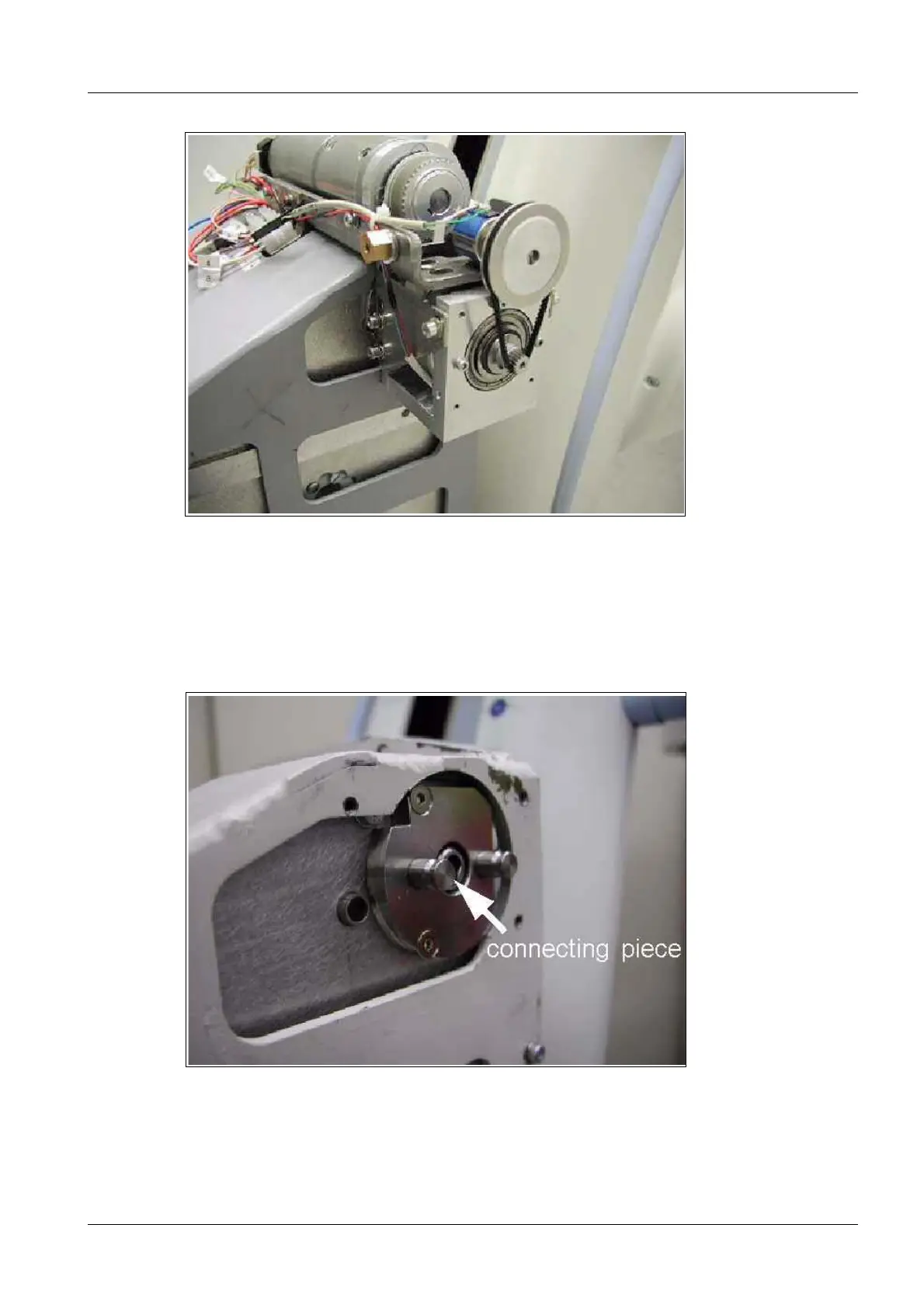

Fig. 27: Orbital drive fully installed
• Remove the two existing screws (Fig. 25 / p. 32).
• Attach the motor using 2 countersunk Allen screws M 8 x 40 (Fig. 26 / p. 32).
Coupling unit 0
Fig. 28: Centering disk
