Siemens ARCADIS Orbic Installation And Startup

34 3D Reconstruction Upgrade Part 2
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 34 of 46
Medical Solutions

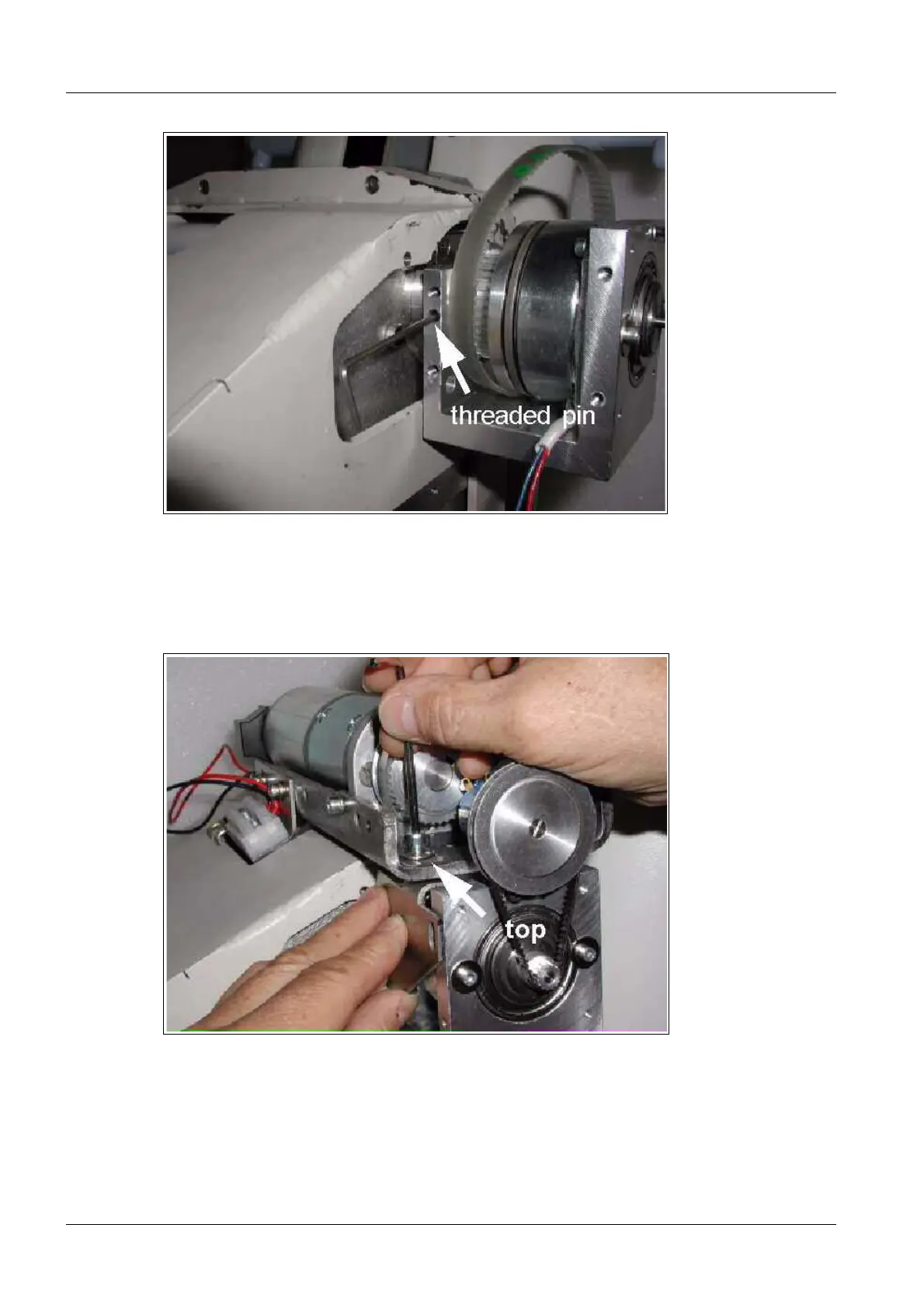

Fig. 29: Coupling unit
• Fit the coupling unit onto the centering disk, the shaft must engage with the connecting
piece (Fig. 28 / p. 33).
• Press the coupling unit against the centering disk and attach it to the left and right using
the two threaded pins (Fig. 29 / p. 34).
Fig. 30: Lateral bracket
